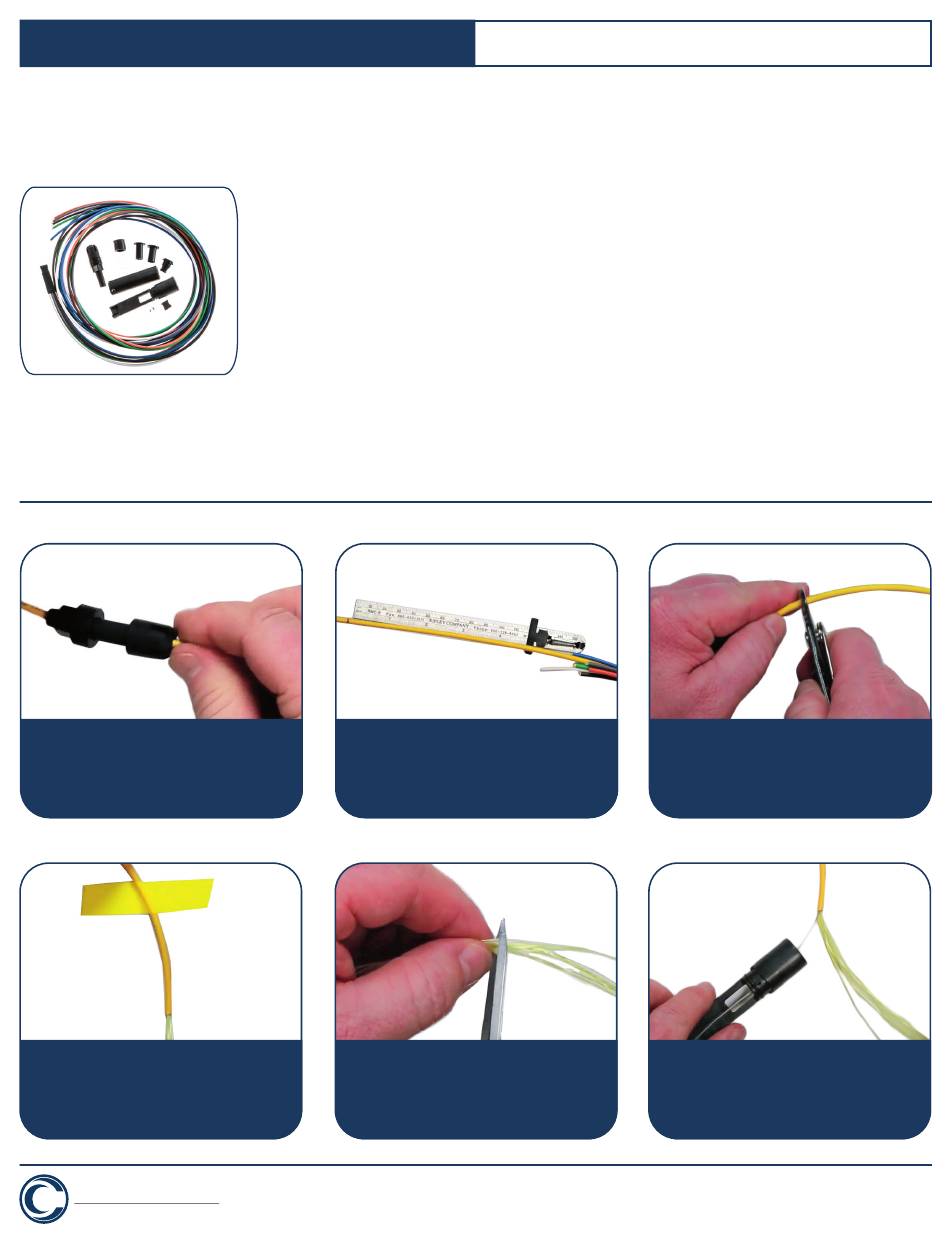

Cleerline SSF Quick Start Manual

Cleerline SSF
TM
This guide describes spider breakout kit installation on 250 µm optical fiber. Installation factors such as available cable slack,
location of the termination hardware and the question of build tube slack storage as opposed to cable slack can dictate when and
where you choose to mount the cable end and assemble your breakout kit.
1. Slide included and grommet strain relief boot
onto cable.
4. Working on a flat surface with an edge, tape
down the cable.
CLEERLINE
TECHNOLOGY GROUP
3.0 mm Breakout Kit
Each Breakout Kit Contains
a. Insert block furcation tube assembly
(1 for 6 fiber, 2 for 12 fiber)
b. Outer Shell
c. Housing
d. Grommet Strain Relief Boot
e. Nut
f. Screw (x2)
g. Plug (not used in these instructions)
h. 6 Fiber Bushing (not used in these instructions)
i. 12 fiber Bushing (not used in these instructions)
2. Measure the tubing down the length of the
cable. Place a mark 6"/15 cm from the end of
the tubing.
5. Separate aramid yarns from fiber. Cut yarns
approximately 6"/15 cm from end of jacket.
TM
Termination With:
SSF Micro Distribution 250 µm Fibers
TM
Required Tools
a. Fiber Optic Strippers
b. Aramid Shears
c. Pliers
d. Ruler
e. Tape
f. Marker
3. Using the fiber strippers' 2.0 mm opening,
6. Slide housing over exposed fibers. For six
remove the jacket at marking so that the
exposed fiber is equal to the breakout tubing
and assembly plus 6" or 15 cm.
fiber kit, place fibers 1-6 all on one side of
housing. If installing 12 fiber kit place fibers
7-12 on other side.
