Activor® Remote Control RSI02 (S1890A) Manual

General

RSI02 remote kit comprises one receiver, two pre-learned remotes, a 4-wire harness and a quick mounting

plate. Through Jumper Setting, It can be set to work with NX/Reliance alarm panels or DSC panel such as

PC1565(Power632), PC5020(Power864), PC1616/1832/1864 to operate Arm (away/stay), Disarm and Panic

via the keypad data bus. The receiver is also equipped with two relays that can be used to operate other

devices such as garage door.

The 4-pin jumper can be found in the upper middle of the receiver.

For NX/Reliance panel: ensure the 2-pin jumper cap remains to be placed across pin1 and 2, as

For DSC panel: ensure the 2-pin jumper cap is removed from the socket.

For NX/Reliance panel:

Connect 4-wire harness directly to the panel or keypad: Pos Red; Com Black and Data Green – Yellow is not

used.

For DSC panel:

Connect 4-wire harness directly to the panel or keypad, follow colour code then PLUG into the receiver and

PLAY. The receiver is automatically recognized by the panel – no need to use User Code for enrolment.

Receiver

Button Operation – default setting

Button 1:

Press and quick release = Away; press and hold for 3 seconds = Stay

Button 2:

Disarm from Arm away/stay, or Panic

Button 3:

Relay 1 output momentary

Button 4:

Relay 2 output momentary

Press button 1&2 simultaneously for 3 seconds = Panic

June 2018

Table of Contents

Do you have a question about the Activor RSI02 and is the answer not in the manual?

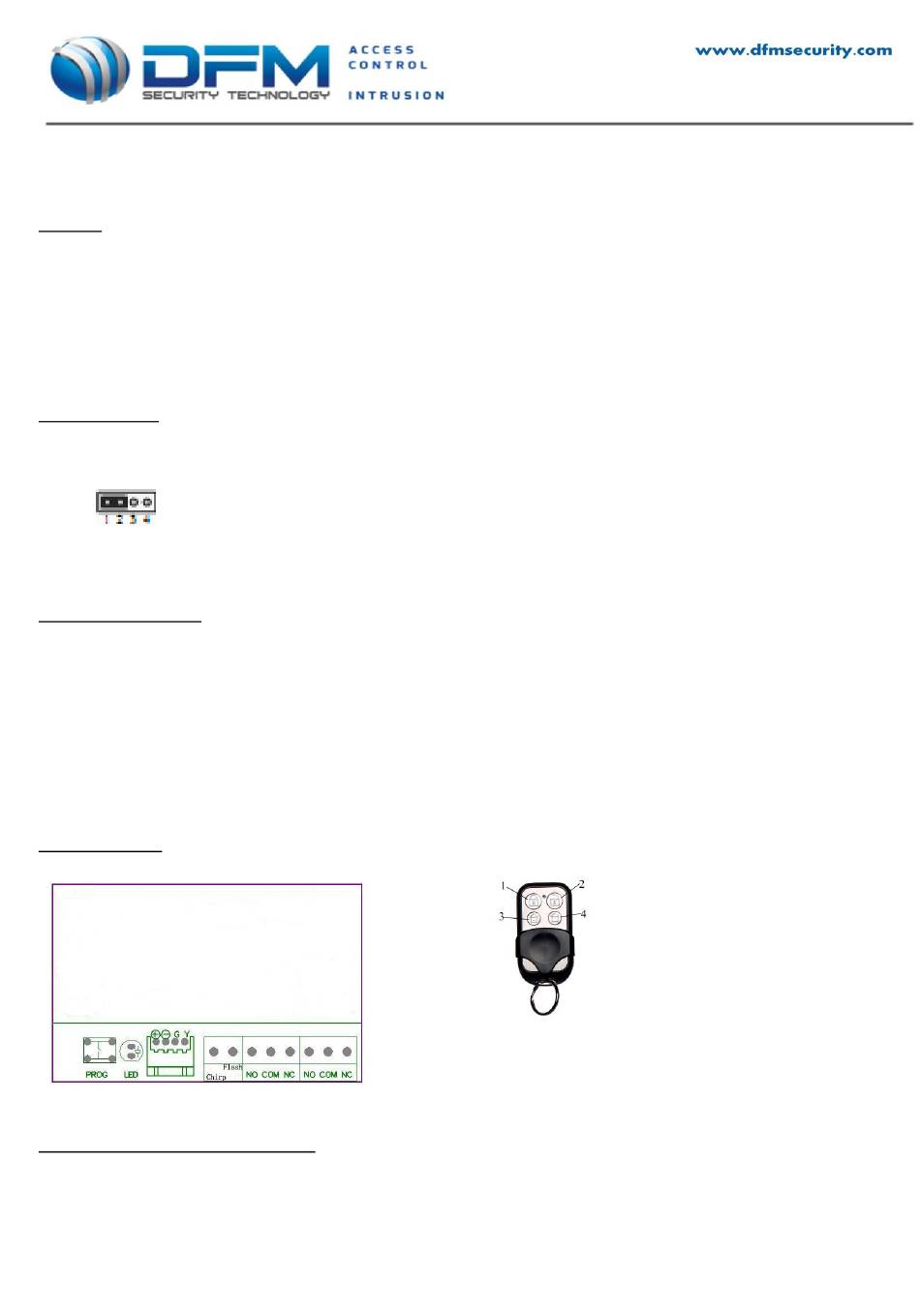

Page 1 Activor® Remote Control RSI02 (S1890A) Manual June 2018 General RSI02 remote kit comprises one receiver, two pre-learned remotes, a 4-wire harness and a quick mounting plate. Through Jumper Setting, It can be set to work with NX/Reliance alarm panels or DSC panel such as PC1565(Power632), PC5020(Power864), PC1616/1832/1864 to operate Arm (away/stay), Disarm and Panic via the keypad data bus.
