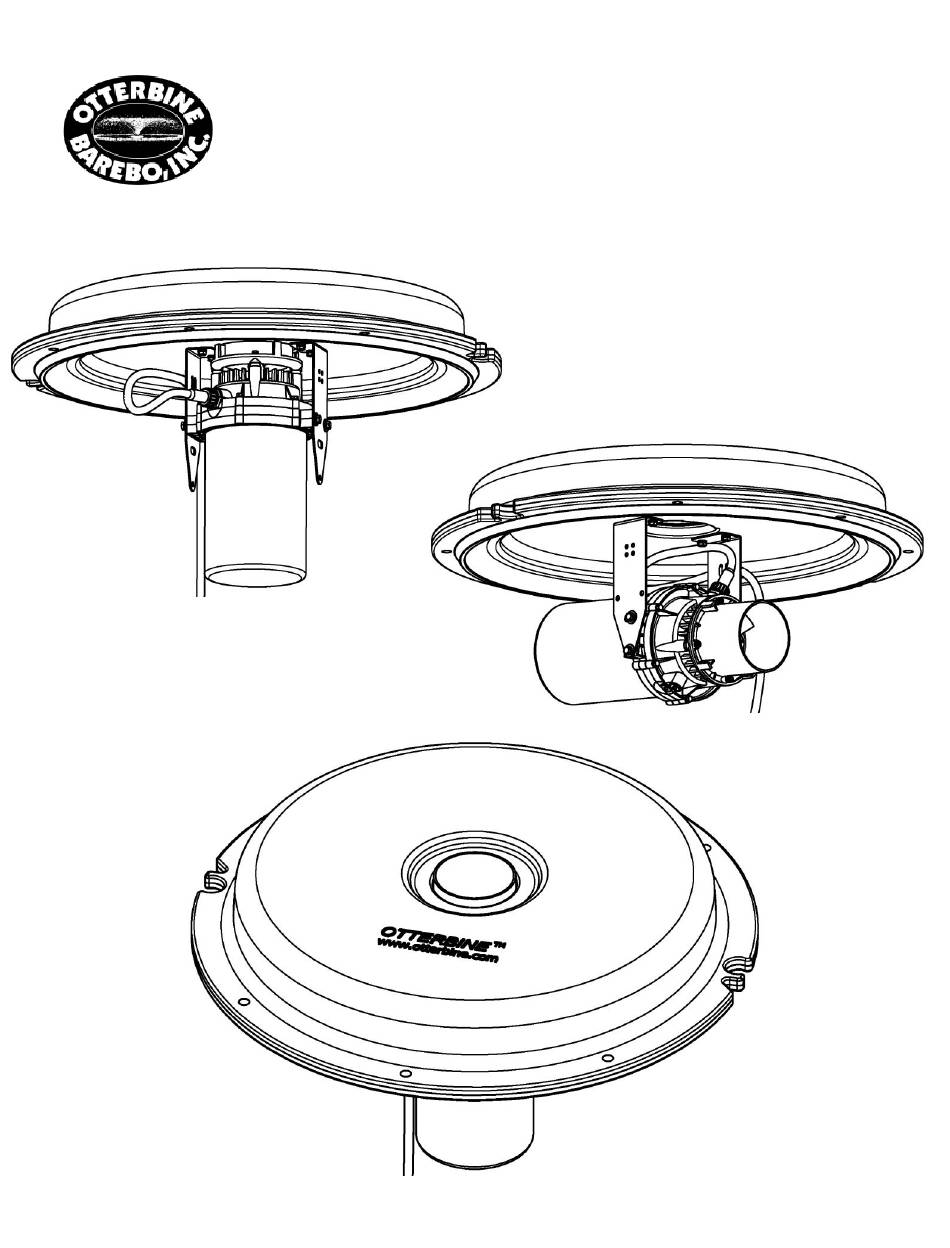

- Page 1 Otterbine Barebo Inc. Fractional Series 50Hz Installation Manual Manual PN: 75-0009 Rev 01...
-
Page 2: Safety Instructions
• If the power cord is damaged, it must be replaced by a special cord or assembly available from Otterbine Barebo, Inc. or an authorized Otterbine Barebo, Inc. sales and service center. www.otterbine.com Page 2 75-0009 Rev 01 50Hz Fractional Series 1-800-AER8TER... -
Page 3: Inspect Equipment
1. The power control center shall not be accessible from the water. C. PCC Mounting 1. To prevent damage to the enclosure use all four (4) mounting holes. 2. Whenever possible do not mount the PCC in direct sun light. www.otterbine.com 1-800-AER8TER 75-0009 Rev 01 50Hz Fractional Series Page 3... - Page 4 CAUTION – UNIT WILL START IF TIMER IS ON. 3. Test RCD (GFCI) every 6 months. 4. Start the unit, record the operating voltage and amperage and power cable length on the door inside the power control center. www.otterbine.com Page 4 75-0009 Rev 01 50Hz Fractional Series 1-800-AER8TER...
- Page 5 8N-m / 70in-lb STEP 5 – ATTACH LIGHTING (OPTIONAL) SNAP COLORED LENSE ONTO LEGS (OPTIONAL) TIE JUNCTION & SNAP FIXTURE INTO POCKET CABLE UNDER FLOAT & INSIDE SCREEN WHEN USED www.otterbine.com 1-800-AER8TER 75-0009 Rev 01 50Hz Fractional Series Page 5...
- Page 6 POSITION CABLE CONNECTION FACING FLOAT FLOAT BRACKET HOLES FOR MIXER FRACTIONAL SERIES MIXER PITCH ADJUSTMENT LOOSEN BOLTS, POSITION & TIGHTEN Max. Torque 8N-m / 70in-lb LOOSEN 4 BOLTS (2 EACH SIDE) www.otterbine.com Page 6 75-0009 Rev 01 50Hz Fractional Series 1-800-AER8TER...
- Page 7 DAMAGE CAUSED DUE TO FREEZING WILL NOT BE ELIGIBLE FOR WARRANTY CONSIDERATION DO NOT ALLOW THE UNIT TO OPERATE “DRY” OUT OF THE WATER Never operate the Fractional Series Fountain when not submersed (EXCEPT FOR “JOGGING” DURING TESTING) Remove the unit from the water when temperatures are expected below 0°C (32°F) For longer unit life store the unit indoors at temperatures above 0°C (32°F)
- Page 8 OTTERBINE BAREBO INC. FRACTIONAL SERIES PARTS LIST & EXPLODED VIEW www.otterbine.com Page 8 75-0009 Rev 01 50Hz Fractional Series 1-800-AER8TER...
-
Page 9: Unit Dimensions
OTTERBINE BAREBO INC. PATTERN COMPONENT ASSEMBLY MIXER HIGH VOLUME GEMINI PHOENIX ROCKET UNIT DIMENSIONS www.otterbine.com 1-800-AER8TER 75-0009 Rev 01 50Hz Fractional Series Page 9... - Page 10 INTENTIONALLY BLANK...
- Page 11 Limited 2 Year Warranty Otterbine® Product WARRANTY: Barebo, Inc 3840 Main Road East, Emmaus Pennsylvania 18049,U.S.A. hereby warrants, subject to the conditions herein below set forth, that should the OTTERBINE product prove defective by reason of improper workmanship or materials at any time during the warranty period the Purchaser at retail will be guarantee that BAREBO will repair or replace the said OTTERBINE product as may be necessary to restore it to satisfactory operating condition, without any charge for materials or labor necessarily incident to such repair or...
- Page 12 Water Works With Otterbine! FOR FURTHER INFORMATION OR INSTRUCTIONS ON OTTERBINE PRODUCTS VISIT OUR WEBSITE: www.otterbine.com Otterbine/Barebo, Inc. 3840 Main Rd. East Emmaus, PA. 18049 U.S.A. 1-800-AER8TER • (610) 965-6018 FAX: (610) 965-6050 E-mail: aeration@otterbine.com...
