DOM DR-72 RUGGED Assembly Instructions

Please note: This is a piece of equipment where extreme personal caution must be taken
during assembly and positioning (Step 10). Table being improperly lifted may lead to damage
and understructure going out of alignment. At least two people are required for the whole
assembly process.

Steps:

1. Assembly should be completed on a level oor. Protect the table edge with, for example, cardboard or carpeting.
2. Remove those parts that are not screwed to the table top, then carefully remove this table top from the carton. Stand the table
top upright on its edge and carefully open legs to keep it standing as shown in Figure 1.
Please read the whole of Step 3 before completing it. As you read the instructions, refer to Figure 1.
3. Attach four of the leg braces (A) to the table tennis legs using the 1 3/4" bolts and 3/8" locknuts provided.
NOTE: It is imperative that these braces are placed as described below and shown in Figure 1. Failing to follow
instructions, the table will not close or open properly, table top may crack or table could fall open causing injury.
The leg braces closest to the table top must be assembled on
the outside of the legs (B & C) and the braces furthest from the
table top must be assembled on the inside of the legs (B & C).
This is extremely important for the proper operation of the
table.
The end of the side braces with the slight bend must be close to
the centre leg (B). The bends in the braces must face upwards.
Again, please refer to Figure 1.
Make sure that the bolts pass through the legs and leg braces
from the outside so that the head of the bolts are all towards the
outside of the nished table and the lock nuts are on the inside.
Tighten the lock nuts only nger tight at this time.

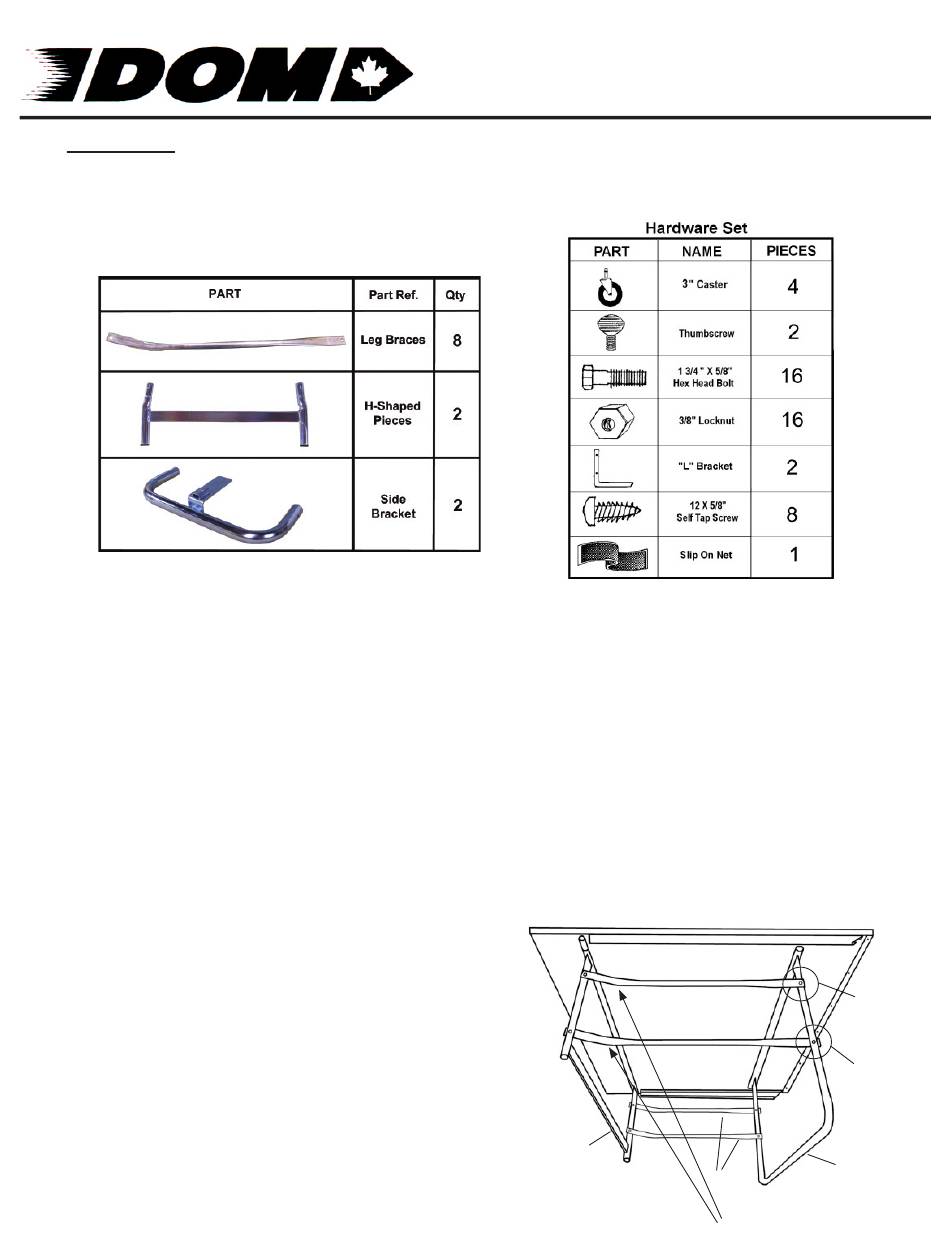

PARTS LIST

DR-72 RUGGED
Table Tennis Table
ASSEMBLY INSTRUCTIONS
B
A
The bends in the leg brace must face
upwards and be close to leg B.

Figure 1

Top braces on
the outside of legs
Bottom braces on
the inside of legs
C
