Westell A99-BAI-ACSF-UGKIT Install Instructions

Ethernet Switch Upgrade Kit Install Instructions
A99-BAI-ACSF-UGKIT
Step-by-Step Process
The following instructions describes how to field install a second 6
port Ethernet switch into Access Point cabinet, part number
A99-APC1BAI-ACSF.
Note: Access Point cabinets, part number A99-APC1BAI-ACSF that
are revision V and below must have the 2nd Ethernet switch installed
in the vacant AP2 radio location. Each method is described within this
document.Access Point cabinets, part number A99-APC1BAI-ACSF that
are revision W and above can have the 2nd Ethernet switch installed
above the first Ethernet switch using the existing DIN rail.
contents include one each of the following:
• 6 port GigE Ethernet switch, part number A90-ESP8266G
• 1 Gig 20Km 1310 Nm SFP, part number A90-SFP01G-20-31
• 2 meter LC to LC SM fiber patch cord
• 20" Red 14 AWG wire
20" Black 14 AWG wire
•
60" Green 14 AWG wire
•
20" spiral sleeving
•
Caution:
Remove Power Before Attempting to Service

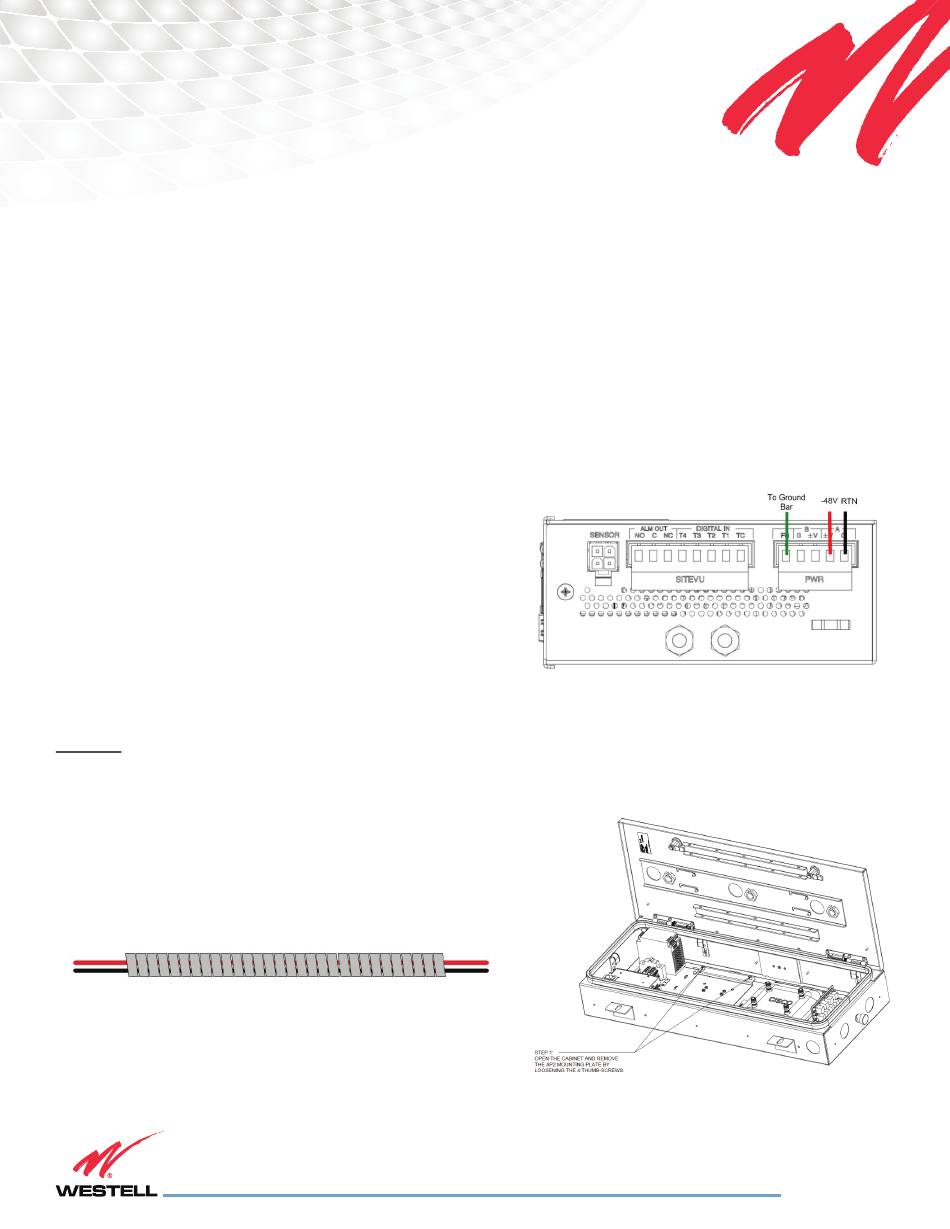

Step A: Prepare the power & frame ground wires
Prepare the power cord
•
• Strip 1/4" of insulation from the red and black wires
• Cut the spiral sleeving to 16" and install over red and black wires
Prepare the frame ground wire
•
• Strip 1/4" of insulation from the green frame ground wire
*Note: This upgrade kit is only applicable with BA AC cabinet part number A99-APC1BAI-ACSF revision W and above.
Step B: Wire power & frame ground to the Ethernet
Switch
• Important - Remove Power - from the cabinet before service
• Attached the power and frame ground wires to the Ethernet
Switch
• Attach the red 14 AWG wire to the +-V input of the A PWR
connector
• Attach the black 14 AWG wire to the G input of the A PWR
connector
• Attach the green 14 AWG wire to the FG input of the A PWR
connector
Step C1: Install 2nd Ethernet Switch using plate
method for part number A99-APC1BAI-ACSF
revision V and below.
