Product Features:
• Take the convenience of your
home stove with you in the
great outdoors!
• Four independent burners;
combined output of
16,500 BTU
Important: Retain these instructions for future use
02934 08/12

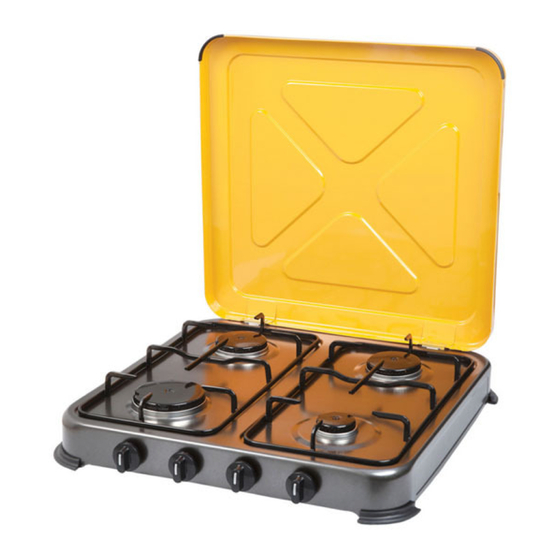

Turbo Four Burner
Camping Stove
CS4095
• Durable powder coated finish
• Low pressure appliance –
complete with hose and regulator
• Operates on propane gas
• For outdoor use only
• AGA certified
Advertisement
Summary of Contents for Gasmate CS4095

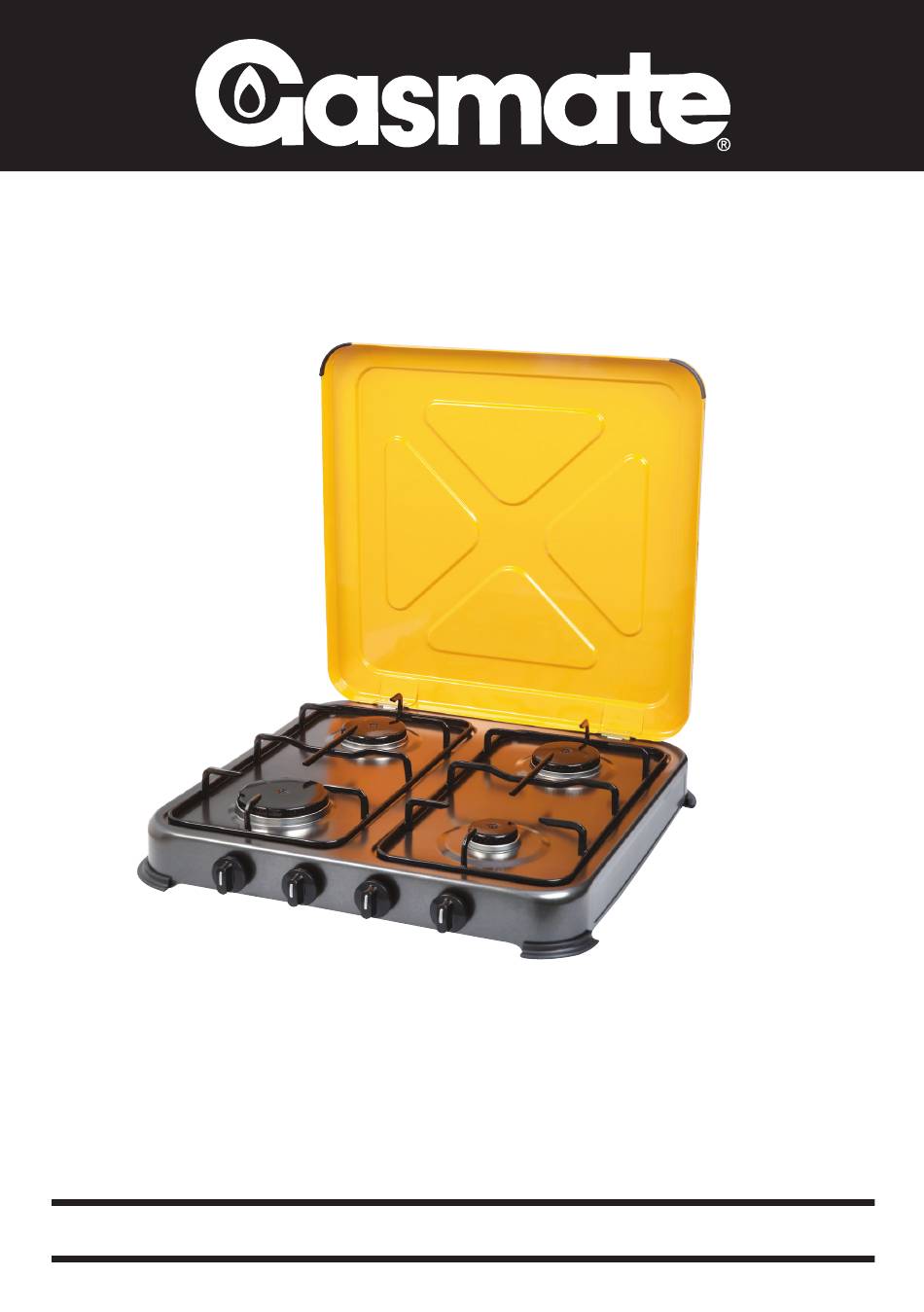

- Page 1 Turbo Four Burner Camping Stove CS4095 Product Features: • Take the convenience of your • Durable powder coated finish home stove with you in the • Low pressure appliance – great outdoors! complete with hose and regulator • Four independent burners; • Operates on propane gas combined output of • For outdoor use only 16,500 BTU • AGA certified Important: Retain these instructions for future use 02934 08/12...
-
Page 2: General Information
GENERAL INFORMATION 3/8” BSP. Gas Cylinder Use & Safety Gas Installation Codes This appliance shall only be used with a propane • Appliances must be used in accordance with the gas cylinder certified to AS2469. installation requirements of your gas supply IT MAY BE HAZARDOUS TO ATTEMPT TO FIT authority, or the Australian Standard AS 5601. OTHER TYPES OF GAS CONTAINERS. • Appliances for use with bottled gas are labelled Gas cylinders should be stored outdoors in a well ‘propane gas’. ventilated area out of reach of children. Any indoor Clearances storage shall comply with AS/NZS 1596. Minimum Clearances from combustible materials Only use the hose assembly as supplied with this must be: appliance for connection to the cylinder - DO NOT Rear - 180mm Above - 600mm USE ADAPTORS. Maximum hose length is 100cm. Hose & Regulator Safety After use, turn the gas cylinder valve off, wait for The regulator and hose assembly supplied with the the flame to go out, and then turn the appliance appliance are suitable for propane gas only. control valve(s) off. A gas regulator adjusted to have an outlet Avoid twisting or kinking the flexible hose. - Page 3 Nominal Hourly Gas Consumption Total Gas Number of Injector Gas Type Consumption Pressure Burners Size MJ/h Small - 1 3.2 MJ/h 0.48mm Propane Medium - 2 4.4 MJ/h 2.75 kPa 0.53mm Large - 1 5.2 MJ/h 0.59mm WARNING • Do not store or use petrol or other flammable liquids in the vicinity of this USE OUTDOORS ONLY or any other appliance. • IMPORTANT. Read these instructions • Do not store empty or full spare gas for use carefully. Familiarise yourself cylinders near this or any other appliance.
-
Page 4: General Assembly
GENERAL ASSEMBLY Disconnecting: 1. Ensure the burner controls are in the Connecting & Disconnecting to ‘OFF’ position. the gas source 2. Ensure cylinder valve is in the full off position. Familiarise yourself with the general information and safety guidelines located at the front of Lighting the Stove this manual. 1. Turn the control knob anti-clockwise 1/4 of a Note: Remove any transit protection material turn and light with a match or cigarette lighter. Check: 2. The flame can be regulated from high to low. 1. The cylinder is filled. A sloshing sound will be heard when shaken. 2. The burner controls are in the ‘OFF’ position Connecting: 1. Ensure cylinder valve is in its full off position. 2. Check for any damage to either the cylinder connection or the hose. NEVER attempt to use damaged equipment. 3. When connecting the hose to the cylinder tighten the nut to a positive stop by hand or spanner. 4. Leak test all connections with a soapy water solution. 5. Locate the gas cylinder a safe distance away from the appliance ensuring that the hose is not in contact with the lid or body. OVEN GAS CONTROL FULL DOT INDICATES BURNER... - Page 5 OPERATING PROCEDURE The openings at the base of the burner provide air for combustion, they should never be obstructed. CARE & MAINTENANCE If the flame becomes significantly orange check these openings for a blockage. Care & Maintenance The injectors can be cleaned by removing them As with all appliances, proper care and and soaking in petrol. maintenance will keep them in top operating condition and prolong their life. By following these cleaning procedures on a timely basis, your appliance will be kept clean and working properly with minimum effort. Flash-Back Spiders and small insects occasionally spin IMPORTANT webs or make nests in the burner tubes during warehousing and transit. These webs can lead to • THe lId MuST be IN THe OPeN a gas flow obstruction which could result in a fire POSITION FOR LIGHTING AND in and around the burner tubes. duRINg uSe. This type of fire is known as ‘FLASH-BACK’ and • Do not leave the appliance unattended can cause serious damage to your appliance and when alight. create an unsafe operating condition for the user. • Do not smoke at any time when attempting Although an obstructed burner tube is not the only to ignite the burner.
-
Page 6: Safe Appliance Locations
SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above Within a partial enclosure that includes an ground open-air situation with natural ventilation, overhead cover and more than two walls, the without stagnant areas, where gas leakage and following will apply: products of combustion are rapidly dispersed by at least 25% of the total wall area is completely wind and natural convection. open, and at least 30% of the remaining wall area Any enclosure in which the appliance is used is open and unrestricted (see Example 4 & 5). shall comply with the following: In the case of balconies, at least 20% of the An enclosure with walls on all sides, but at least total wall area shall be and remain open and... - Page 7 This page has been intentionally left blank...
- Page 8 For any queries or assistance call Customer Service (Australia Only) 1300 174 876 Hours of operation: Monday to Friday 8.30am - 5.30pm EST do not return to place of purchase. Keep your purchase receipt, this will be required to make any claims under the 12 month warranty. Gasmate ® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber Ltd - Hamilton, N.Z www.gasmate.co.nz...
