Summary of Contents for tbs electronics AROFLY Power Meter
- Page 1 Intelligent Dynamic Pressure Technology Quick Start Guide...
-
Page 2: Package Contents

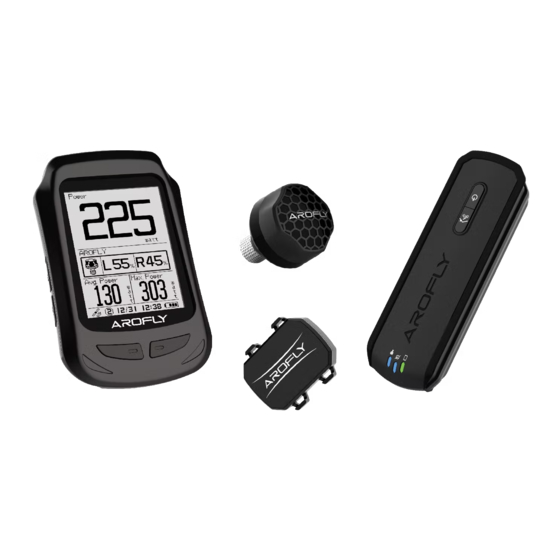

PACKAGE CONTENTS Package Box LINK Transmitter AROFLY Power Meter Cadence Sensor LINK Holder Presta Valve Adaptor Wrench tool LINK Holder-Rubber Tie x 6 Cadence-Rubber Tie x 2 Micro USB Cable... - Page 3 REAR VALVE ONLY Tips: Before installing AROFLY power meter to the rear tire valve, please inflate the bike tires to appropriate tire pressure as marked on the tire. Suggest the road bike to be 90~120psi (6~8bar); Mountain bike to be 35~65psi (2.4~4.5bar) Before using AROFLY power meter, twist open the cap, then remove the INSULATION TAB, from between the battery contact.
- Page 4 INSTALLING CADENCE SENSOR ON CYCLE LEFT CRANK ONLY Using the rubber ties included, secure the cadence sensor to the inner side of the cycle left crank. Attach the cadence sensor to the inner side of the cycle left crank for best performance Tips: Inser t the batter y to Cadence Sensor...
- Page 5 TRANSMITTER Showing Connection With Other Bike • Solid green: "LINK", not connected Computers Or With The with the AROFLY power meter. "AROFLY 2" APP. • Solid blue: "LINK", connected with • Flashing red: On the "LINK", indicates the AROFLY power meter.
- Page 6 TO CONNECT WITH THE "AROFLY 2" APP AND TO SETUP THE LINK TRANSMITTER 3. If connected with Heart Rate Monitor, click the "Heart Rate Monitor" in the Main page to pair. 4. Enter Set Up page, input requested details and then click to start your ride.
-
Page 7: Indoor/Outdoor Mode
INDOOR/OUTDOOR MODE On the LINK Transmitter, press once on INDOOR/OUTDOOR mode button to switch the modes. Reminder: When riding indoor, the Bike Trainer or Roller must be selected correctly on the "AROFLY 2" APP . Tips: • When riding outdoor, please confirm the INDOOR/OUTDOOR mode LED on LINK Transmitter is OFF. -
Page 8: Warning Messages
"AROFLY 2" APP and resolve. • LOW TIRE PRESSURE: Action, inflate your tire pressure • INDOOR MODE STILL ON: Action, switch the INDOOR mode OFF on the "LINK" • CHECK VALVE: Action, correctly install AROFLY power meter again SPECIFICATION AROFLY Power Meter Product Name... -
Page 9: Change Battery
Computers Or With The "AROFLY 2" APP AROFLY LED Cadence LED AROFLY Power Meter When LED activity is flashing red, it means the "AROFLY Power Meter" battery is low, replace with new battery. Open Arofly Cap Take out battery LINK Transmitter When LED activity is flashing red, it means the "LINK"... -
Page 10: Warranty
4.Because of the system diversity, we can not guarantee compatibility with certain heart-rate monitors 5. AROFLY power meter is NOT suitable on tubeless tires, because the sealant inside the tube, will damage the AROFLY sensor. 6. Please be sure to update the "LINK" software to the latest version.
