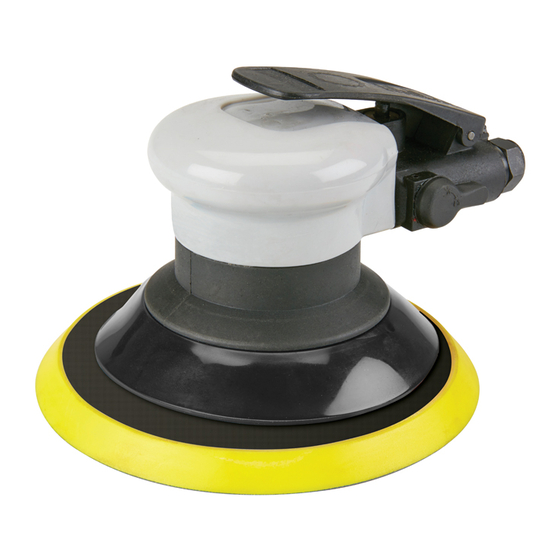

6" Orbital Composite
Sander
93867
ASSEMBLY AND OPERATING INSTRUCTIONS
Because of continuing improvements, actual product may differ slightly from photo.
Sanding disc not included.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
Copyright © 2006 by Harbor Freight Tools
. All rights reserved.
®
No portion of this manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353
SKU 93867
For technical questions, please call 1-800-444-3353
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Harbor Freight Tools Central Pneumatic Professional 93867
Summary of Contents for Harbor Freight Tools Central Pneumatic Professional 93867
- Page 1 . All rights reserved. ® No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. For technical questions and replacement parts, please call 1-800-444-3353 SKU 93867...
- Page 2 Specifications Operating Pressure: 90 PSI Air Pressure Lightweight composite housing with ma- Rated Air Consumption: 7 CFM @ 90 Construction: Specifica- chined steel and aluminum components tions: Air Inlet Size: ¼” - 18 NPT No Load rpm: 10,000 RPM Trigger Type: Paddle Disc Size: standard 6”...
- Page 3 20. Maintain labels and nameplates on the tool. These carry important information. If unreadable or missing, contact Harbor Freight Tools for a replacement. 21. When starting a handheld air tool, always maintain a firm grip on the tool to resist starting torque.
- Page 4 Your product includes the Composite Air Sander and Pad Wrenches. When unpacking, check to make sure that the product is intact and undamaged. If any parts are missing or broken, please call Harbor Freight Tools at the number on the cover of this manual.
- Page 5 Air Pressure Supply We recommend that you use both a filter and an in-line oiler in your air supply system as illustrated in the diagram below. These components are not included with this tool, but are available from Harbor Freight Tools. We recommend that you install a quick-release nipple (not included) into the Air Inlet (38).
- Page 6 About Air Sanders and Sanding Discs While an extremely useful tool, air sanders can be dangerous if damaged or used improperly. Sanding Discs are made of aggregates of a cutting material (grit) such as Aluminum Oxide bound to a heavy paper or cloth backing.
- Page 7 Maintenance Inject a small amount of medium weight air tool oil into the Air Inlet (38) after each hour of continuous use. Wipe housing with a dry cloth before storing. Parts List Part Description QTY. Part Description QTY. Housing Spindle Housing Grip Pad Shroud External Stop Ring...
- Page 8 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
