Bosch 0 601 375 039 Parts List

Bosch angle grinder parts list.
Hide thumbs


Advertisement

Page 1
http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=0601375039&ID_VE...

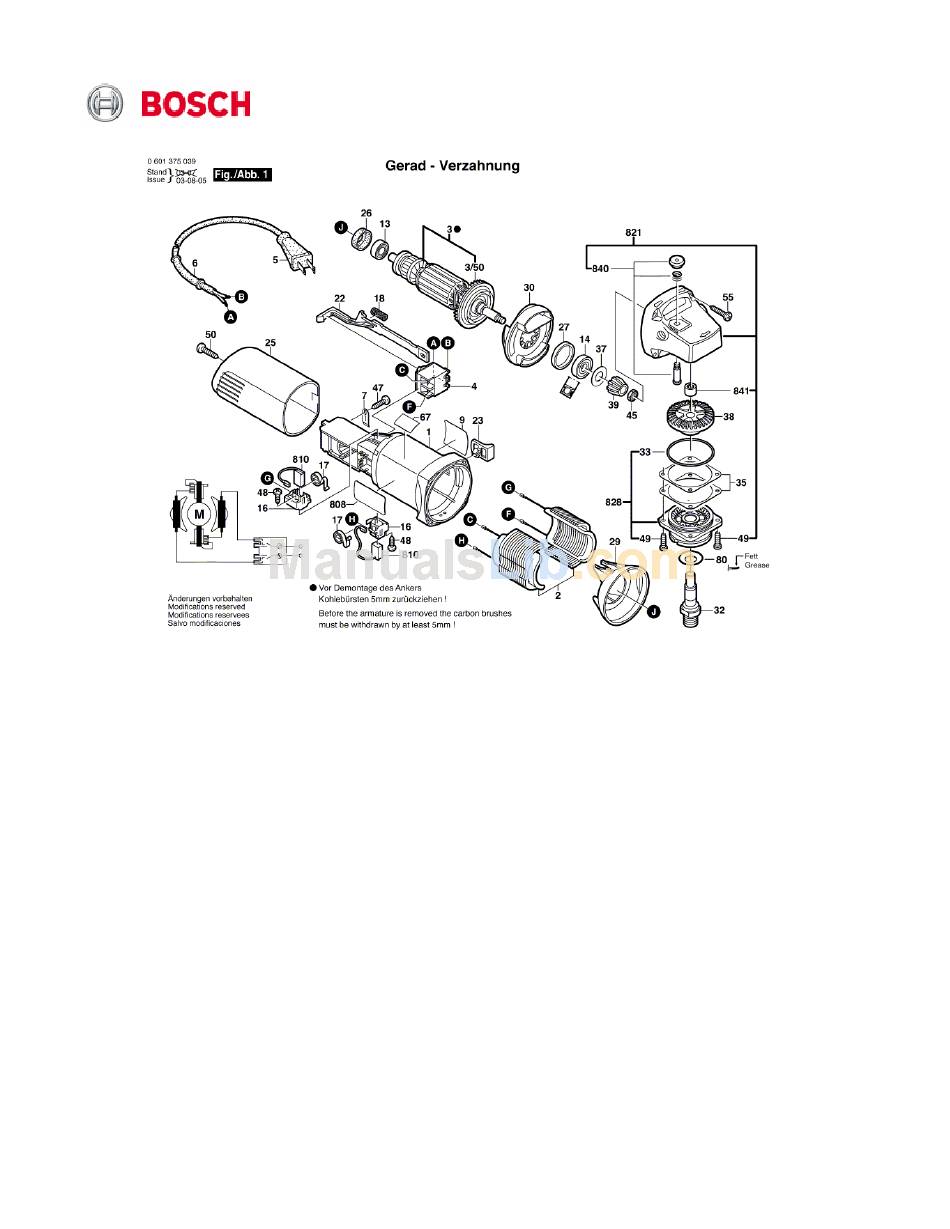

0 601 375 039
ANGLE GRINDER 1375A
Page 1 of 5
24.10.2005
22:32:13
10/24/2005

Advertisement

   Summary of Contents for Bosch 0 601 375 039

  • Page 1

    Page 1 http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=0601375039&ID_VE... 0 601 375 039 ANGLE GRINDER 1375A Page 1 of 5 24.10.2005 22:32:13 10/24/2005...

  • Page 2

    Item Quantity Order No. Designation 1 605 108 MOTOR HOUSING \ BLUE 1 604 220 FIELD \ 110-115V 1 604 010 ARMATURE \ 110-115V 1 606 610 3/50 1 607 200 ON-OFF SWITCH 2 604 460 MAINS CONNECTION CABLE \ USA/CDN 2,15m 2 x 082mm SJ 18/2 2 600 703 GROMMET \ Ø...

  • Page 3

    2 915 011 HEXAGON NUT \ DIN 934-M6-8-A 2 609 110 SPECIAL SCREW 1 619 P00 TORX OVAL-HEAD SCREW 1 603 435 THREAD-FORMING TAP. SCREW 2 910 611 SELF-TAPPING SCREW \ DIN 7981-ST3,9x19-C-H 2 910 611 SELF-TAPPING SCREW \ DIN7981-ST3,9x25-C-H 1 601 110 REFERENCE PLATE \ CAUTION 3 600 150...

  • Page 4

    Page 2 http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=0601375039&ID_VE... Page 4 of 5 10/24/2005...

  • Page 5

    Page 5 of 5 http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=0601375039&ID_VE... 10/24/2005...
