Summary of Contents for ALDERWOOD Eros Pro

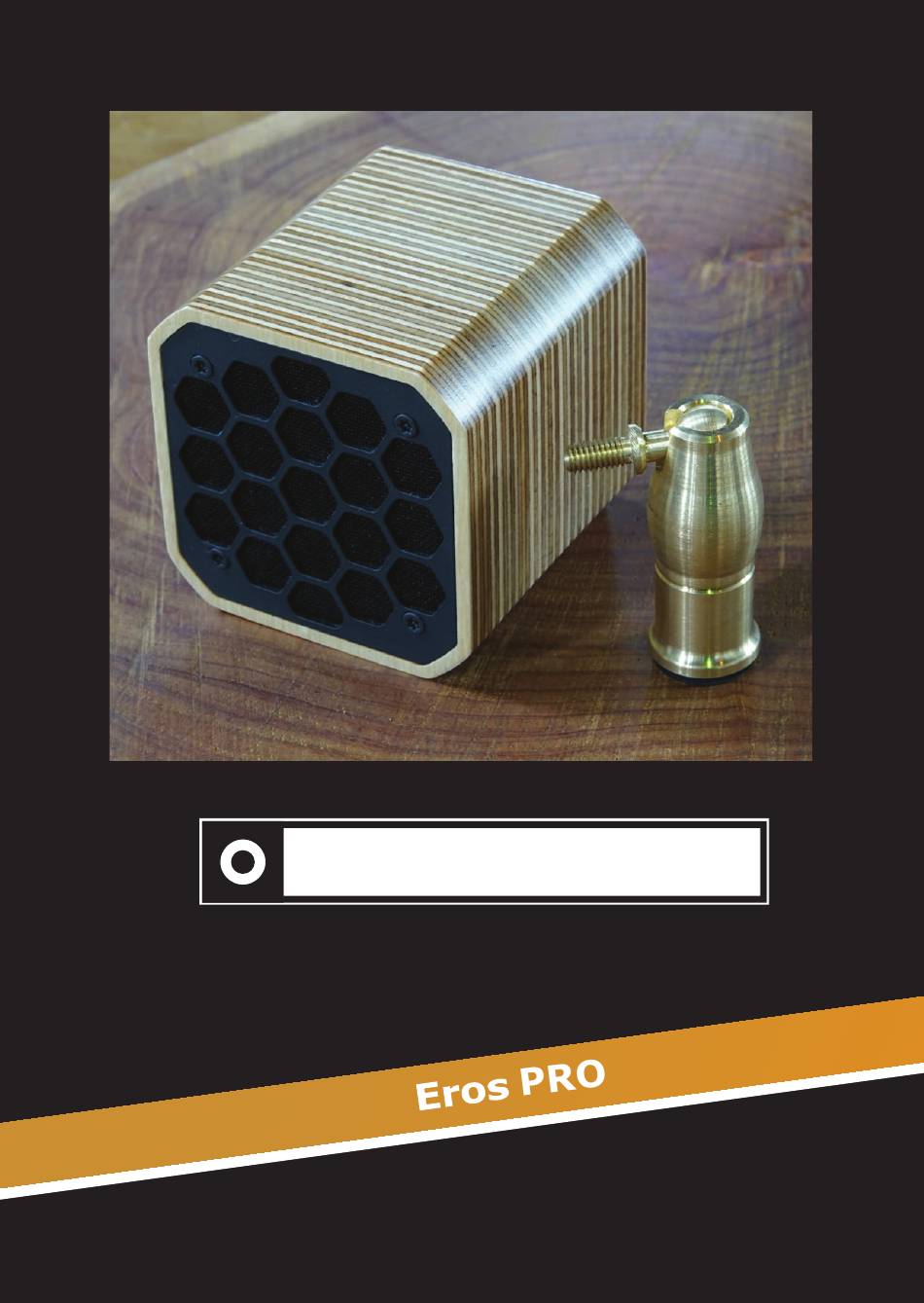

- Page 1 ALDERWOOD Hand Crafted Sound...
-
Page 2: Table Of Contents
MANUAL CONTENTS - EROS PRO Thank you for supporting Australian jobs, Alderwood products are proudly made in southwest Victoria by highly trained and skilled artisans. To ensure that this product provides you with many years of musical enjoyment please read and understand this manual before using our installing this product. -
Page 3: Eros Pro Specs
EROS PRO SPECS Dimensions 7cm x 7cm x 7cm Weight 285gm Input Connection Phoenix Contact 3.81mm Frequency R ange 150 - 20KH z Nominal Impendanc e 8 Ohms Sensitivity 1W/1 M Peak Output Full R ange 106DB 1100DB (white noise 200 highpass... -
Page 4: Run In Period
The Eros PRO covers the 150-20khz range, and as such will not benefit from bass boost or loudness settings. The following is a guideline of settings to apply to get the most from your Eros PRO. -Bass controls set to 0 -Amplifier crossovers set 150-200hz -Amplifier set to “small speakers”... -
Page 5: Wiring
LIVE SOUND USAGE To use the Eros PRO for live sound applications we recommend applying a highpass filter at 200hz with a 24DB/oct slope. _________________________________________________ WIRING The Eros PRO uses a Phoenix contact 3.81mm terminal plug, for discreet and simple wiring, this connector has exceptional electrical connection qualities and also allows for simple unplugging for quick de-installation when the need arises to repaint walls. -
Page 6: Installation
We recommend gently knocking on walls to check for potential rattles that may affect the sound before proceeding. (Wall mate plaster screws can be used for mounting the Eros PRO from plaster if used correctly, if a firm mounting cannot be established do not... - Page 7 6) Carefully line up the back of the Eros PRO to the wall bracket thread and gently turn the Eros Pro clockwise from front to thread in place.
-
Page 8: Amplifier Setup
This is completely fine and will not affect the performance. When aimed at desired area tighten the grub screw firmly to lock the Eros Pro in place. ____________________________________________________... - Page 9 - Amplifier subwoofer out setting -5 or turned down lower than normal - Alderwood Atlas Pro setting at ¾ volume -5 to-10 This does 2 things: 1) Keeps the signal gain in the minus which has less distortion...
-
Page 10: Trouble Shooting
TROUBLE SHOOTING - Check phoenix connector for loose strands of wire between the two contacts. Sound is crackly - Ensure the terminals are done up tightly. distorted at low - Check the wiring going into amplifier for volume shorts - Check that you have applied the “small speaker”... -
Page 11: Warranty
WARRANTY This product is covered by a 5 year warranty against defects and workmanship including commercial usage. Alderwood reserves the right to repair or replace defective products in the event of a warranty claim Not covered under warranty - Damage to drivers from excessive volume or incorrect amplifier settings being used. - Page 12 56 Curdie Street Cobden, Victoria, Australia 3266 sales@alderwoodspeakers.com.au www.alderwoodspeakers.com.au...
