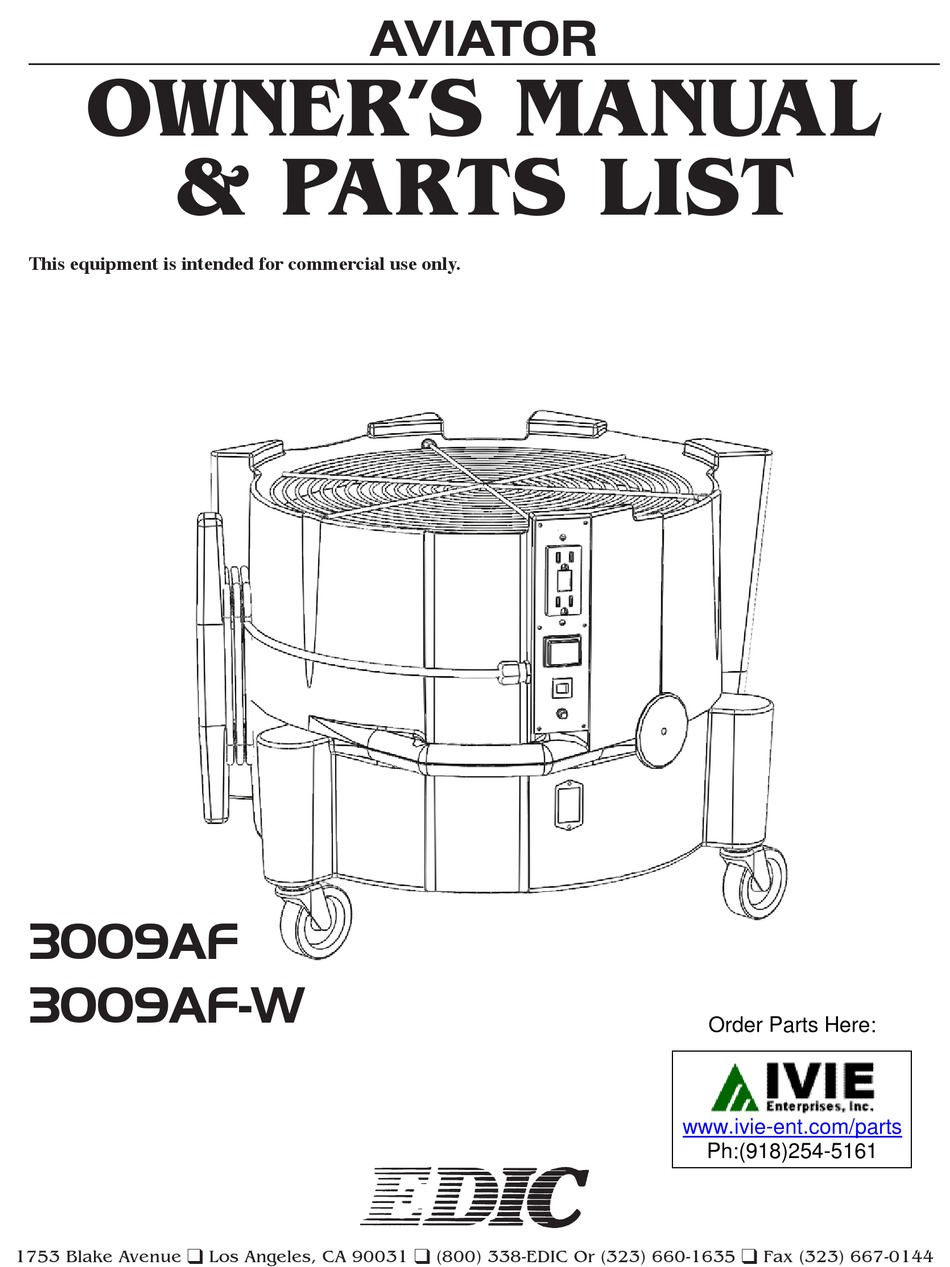

AVIATOR
owner's manual
& parts list
This equipment is intended for commercial use only.
3009AF
3009AF-W
Order Parts Here:
www.ivie-ent.com/parts
Ph:(918)254-5161
1753 Blake Avenue
❑
Los Angeles, CA 90031
❑
(800) 338-EDIC Or (323) 660-1635
❑
Fax (323) 667-0144

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aviator and is the answer not in the manual?

Questions and answers

Summary of Contents for Edic Aviator

  • Page 1 AVIATOR owner’s manual & parts list This equipment is intended for commercial use only. 3009AF 3009AF-W Order Parts Here: www.ivie-ent.com/parts Ph:(918)254-5161 1753 Blake Avenue ❑ Los Angeles, CA 90031 ❑ (800) 338-EDIC Or (323) 660-1635 ❑ Fax (323) 667-0144...

  • Page 2: Before Operating The Machine

    • Repairs are only allowed by a qualified service center. Do not attempt to disassemble or repair the unit if you are not qualified to do so. For information about authorized repair, call EDIC at (800) 338-3342.
  • Page 3 • When using an extension cord, use only a 3-prong conductor grounding cord 12 ga. wire or heavier. • Check GFCI protection before each use by pushing the “test” button. If operating properly the “reset” button will pop out. • Never operate with the safety grills removed. Personal injury may result. •...

  • Page 4: Intended Use

    The Aviator draws 2.3 amps. The 12 amp onboard circuit breaker will allow four (4) Aviators on one circuit. Five (5) is too many for one circuit. When daisy chaining the Aviator, turn on one Aviator at a time to prevent excessive current inrush caused by four units starting at once.

  • Page 5: Periodic Maintenance

    PERIODIC MAINTENANCE: Use compressed air or a vacuum to remove lint, etc, from the motor, screen or blower. Do not wet the motor or the wiring. Do not use a pressure washer to clean the unit. TROUBLESHOOTING …MOTOR WON’T RUN POSSIBLE CAUSE SOLUTION No power to unit…...
  • Page 6 34 33 3009AF-W 7-7-08...
  • Page 7 Ring Terminal, #10 Center B11720 Flag Connector (Yellow) B10980 Flag Connector (Blue) B02212 Strain Relief W-Nut, (O) H11831 Label, EDIC, Black-Silver C13090 #6 X .375 Phil Pan B12120 Circuit Breaker, 12 AMP D13049 Switch Plate, Axial Fan G12129 Fan, Axial, 40 Degree...
  • Page 8 1753 Blake Avenue ❑ Los Angeles, CA 90031 ❑ (800) 338-EDIC Or (323) 660-1635 ❑ Fax (323) 667-0144 ZF13167...
