Summary of Contents for Sumec 5240-041

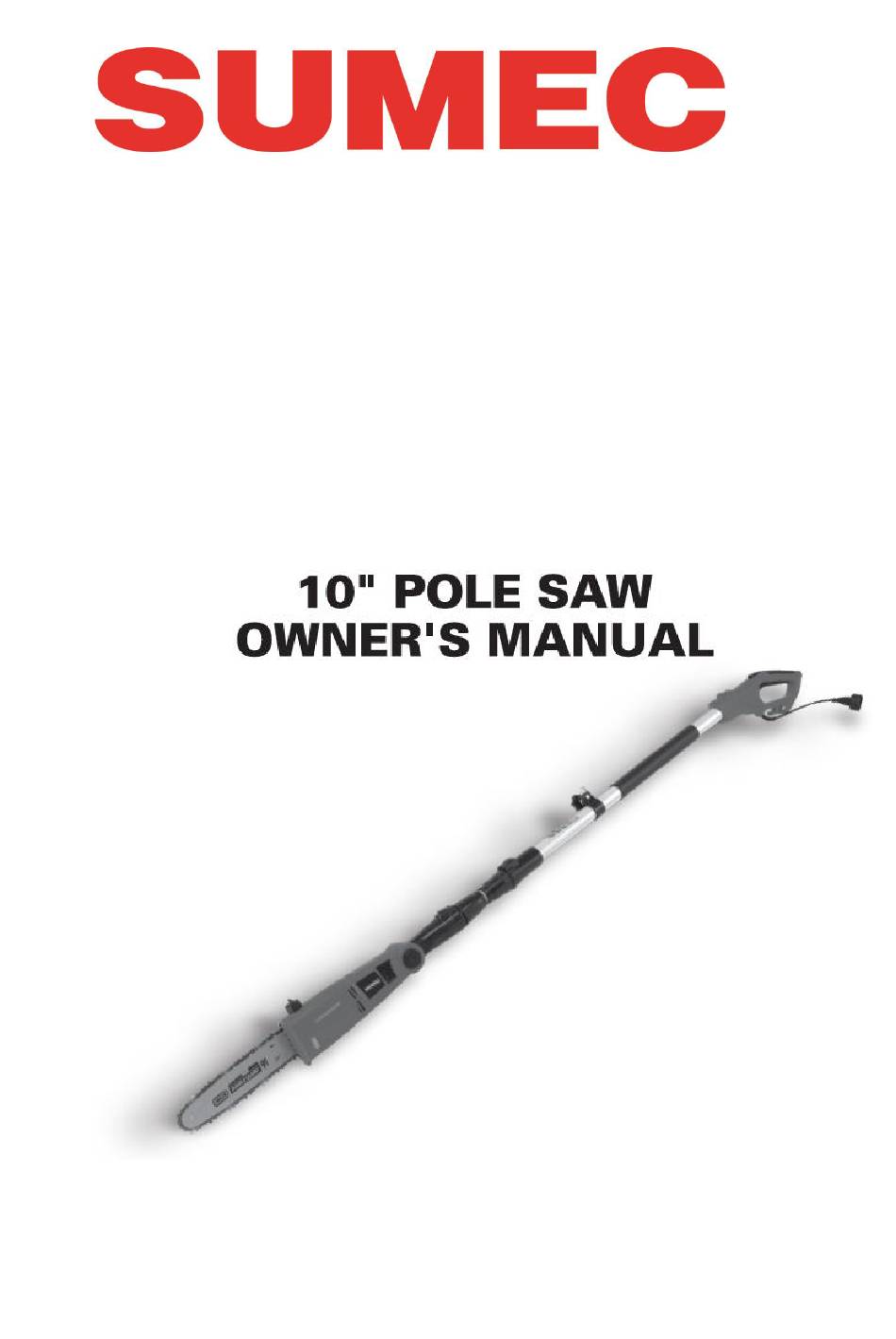

- Page 1 After-sales Service Guide 6.5A Pole saw SAN: 0533201479ZC Customer Model: 5240-041...
-
Page 2: Table Of Contents
CONTENTS Specification Main parts Location BOM& Spare Parts List Operating Instructions Maintenance and Storage FAQS... -
Page 3: Specification
Specification Main parts Location 1. 10" Oregon guide bar 2. 10" Oregon chain 3. Oil indicator window 4. Oil tank cap 5. Angle adjustment button 6. Safety lock button 7. Thread sleeve 8. Locking knob 9. Shoulder strap hook... -
Page 4: Bom& Spare Parts List
10. Safety lock button 11. Trigger switch 12. Extension cord restraint hook 13. Power cord 14. Shoulder strap 15. Telescopic pole 16. Cutting bar sheath 17. Tension adjustment knob 18. End cover locking knob CARTON CONTENTS 10" Pole saw 10" Oregon chain 10"... -
Page 5: Operating Instructions
Operating Instructions ASSEMBLY 1. Using hand, turn the locking knob on the end cover counterclockwise to remove the end cover (Fig. 1). TIP: When replacing the chain, slide on the cutting bar sheath temporarily for added protection. 2. Lay out the new saw chain in a loop and straighten any kinks. THE SHARP SIDE OF THE TEETH MUST FACE AWAY FROM YOU IN TH DIRECTION OF THE CHAIN ROTATION INDICATED ON THE GUIDE BAR. - Page 6 ATTACH THE 1O" POLE SAW CUTTING HEAD 1. Hold the rear handle by one hand, and attach the pole saw cutting head with the other hand. Ensure the terminal in the rear handle are correctly matched (Fig. 5). 2. Then pull the fixing connector upward and tighten the thread by hand. ATTACH THE SHOULDER STRAP 1.
- Page 7 NOTE: Your 10" pole saw is equipped with an automatic oil pump for bar and chain oiling. You must add bar and chain oil or your 10" pole saw will not function. Starting, stopping, and restarting an electric motor repeatedly within a few seconds can generate a great deal of heat and damage the motor.
- Page 8 1. Prior to each cutting session, run through the daily checklist. 2. Connect the 10" pole saw to a working 120 V outlet using a heavy-duty outdoor extension power cord. 3. Make a loop in the power cord and push it up through the hole in the handle and around the cord restraint hook (Fig.
- Page 9 3. Extend the pole to the desired length (Fig. 11). NOTE: Push poles toward each other to shorten the pole or pull them away from each other to lengthen the pole. Only extend the pole to the minimum length required to reach the limb to be cut. 4.
- Page 10 3. Release the button and make sure the head is securely in place. NOTE: Failure to pro perly secure the head adjustment button may result in personal injury and /or property damage. CUTTING TIPS PROPER CUTTING STANCE • Balance your weight with both feet on solid ground. •...
- Page 11 BASIC CUTTING PROCEDURE This unit is designed for trimming small branches and limbs up to 7.5" (19 .1 cm) in diameter depending on the wood type. Practice cutting a few small limbs using the following technique to get the "feel" of using the saw before you begin a major sawing operation.
- Page 12 • Under cut the branch 1/3 through for your first cut. Your second cut should over cut to drop the branch off (Fig. 15). Be prepared to balance the weight of the 10" pole saw when the limb falls. • Now make your finishing cut from the topside of the branch smoothly and neatly against the main member so the bark will grow back to seal the wound .
-
Page 13: Maintenance And Storage
result is a lightning-fast reverse reaction, which kicks the guide bar up and back toward the operator. If the 10" pole saw is pinched along the top of the guide bar, the guide bar can be driven rapidly back toward the operator. Either of these reactions can cause loss of saw control, which can result in serious injury. - Page 14 correct tension of a cold chain is when there is no slack on the underside of the guide bar; the chain is snug, but you can rotate it by hand without binding. During normal saw operation, the temperature of the chain will increase. The drive links of a correctly tensioned warm chain will hang approximately 0.050 in.
- Page 15 ensure minimum removal of material and even sharpness on all the cutting edges. If you sharpen the chain yourself, use special round-section files with the right diameter depending on the type of chain (see "Chain Maintenance Table"). You need a certain amount of skill and experience to avoid damaging the cutting edges.
- Page 16 GUIDE BAR MAINTENANCE When the guide bar shows signs of wear, turn it over on the saw to distribute the wear for maxim um bar life. Feathering or burring of the bar rails is a normal process of bar wear. You should smooth such faults with a file as soon as they occur.
- Page 17 STORAGE • Ensure that the guide bar cover is in place when storing . • Do not store the 10" pole saw near chemicals, such as fertilizers or other harsh solvents. Do not expose the plastic parts of the unit to brake fluids, gasoline, petroleum-based products, penetrating oils, or the like.
-
Page 18: Faqs
FAQS Disconnect the machine from the power source before making any repairs.
Need help?
Do you have a question about the 5240-041 and is the answer not in the manual?
Questions and answers
Why is chain loosening and popping off. Can I lock the tension adjustment knob
The chain on the Sumec 5240-041 may loosen and pop off due to the chain stretching, especially when new or after extended use. A chain that is not properly tensioned can also come off. The manual notes that a new chain tends to stretch and recommends checking and adjusting the tension frequently. The tension adjustment knob is used to tighten or loosen the chain, but there is no mention of a locking mechanism for this knob, so it cannot be locked.
