Summary of Contents for Glamox MAX LED Series

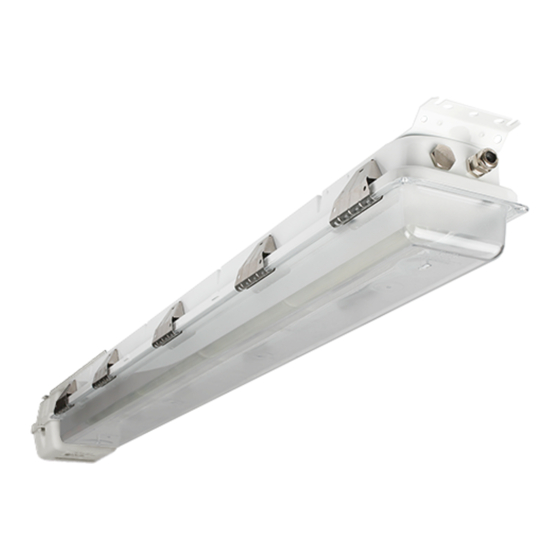

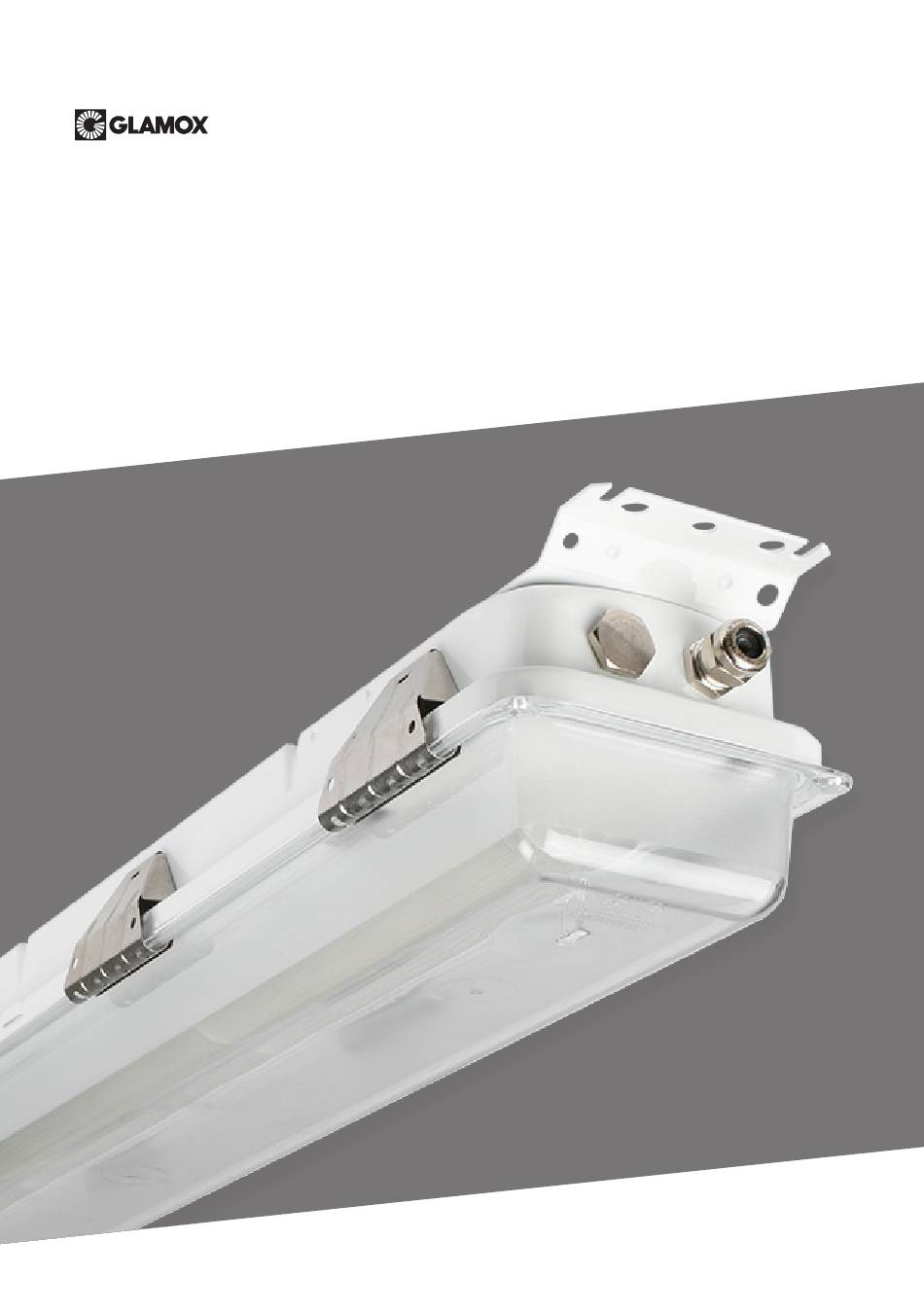

- Page 1 Glamox MAX LED User manual...
- Page 2 English Deutsch Nederlands For further installation and maintenance Weitere Installations- und Wartungsweise Voor verdere installatie en onderhoud, zie guidance, please see the document finden Sie in dem Dokument “Installation het document “Installation and maintenance “Installation and maintenance manual” and maintenance manual” zusammen mit manual”...
- Page 3 Svenska Eesti Polski Ljuskällan i denna armatur får endast Selle valgusti valgusallikat võib bytas ut i Glamox fabriker, av Glamox asendada ainult tootja, tema lepinguline Źródło światła w tej oprawie może zostać servicetekniker eller motsvarande hoolduspartner või sarnane kvalifitseeritud wymienione wyłącznie przez producenta, kvalificerad personal.
- Page 4 110 - 254V AC 50/60Hz and 220 - 250VDC Supplied current (mains mode): 0.11 - 0.56A Power factor: 0.92 - 0.96 Light modules: For more information, please see www.glamox.com Types C = Hood nuts M8 distance MAX-600 LED MAX-1200 LED...
- Page 5 Installation and operation MAX LED Terminal block Torque value for screws: 1.8Nm Type and size of wires that can be used: Solid wire: From 1.0mm² to 6.0mm² Stranded wire with or without ferrule: From 0.75mm² to 6.0mm² There can only be connected one wire on each side of the screw on each side of each terminal.
- Page 6 Installation and operation • Wiring with 2-poled switch for main light MAX LED-E MAX LED MAX LED-E MAX HF-E MAX HF MAX HF-E Emergency Not emergency Emergency Mains Polyamid 5.0 Nm 7.5 Nm Torque 8-13mm 12-18 mm Cabel diameter Brass 7.5 Nm 10.0 Nm Torque...
- Page 7 MAX LED mounting With plastic folio at diffuser Remove plastic folio before powering 1.8 Nm 85 mm...
- Page 8 Battery pack replacement When the battery pack is defect or need to be replaced, use only original battery pack from Glamox • 4.8V 4.0Ah Item no: PA140818001 for MAX 600/1200 LED 3500/6500 • 7.2V 4.0Ah Item no: PM161012000 for MAX 600/1200 LED 2200/4500 Battery type is marked inside MAX LED.
-
Page 9: Battery Change
Battery change Battery pack Spareparts item no: PA140818001, 4.8V, 4.0Ah PM161012000 7.2V, 4.0Ah 1.2 Nm... - Page 11 Emergency lighting time is under the specified time (1.5 or 3.0 hours for standard luminaire): - Change the battery Manufacturer: Service contact: Glamox AS Glamox AS Birger Hatlebakks veg 15 Tel.: +47 71 24 60 00 NO-6405 Molde, Norway Fax: +47 71 24 60 01 or nearest Glamox sales office...
- Page 12 Please refer to our website Please visit our web site for contact information for information about www.glamox.com our 5-year warranty.
