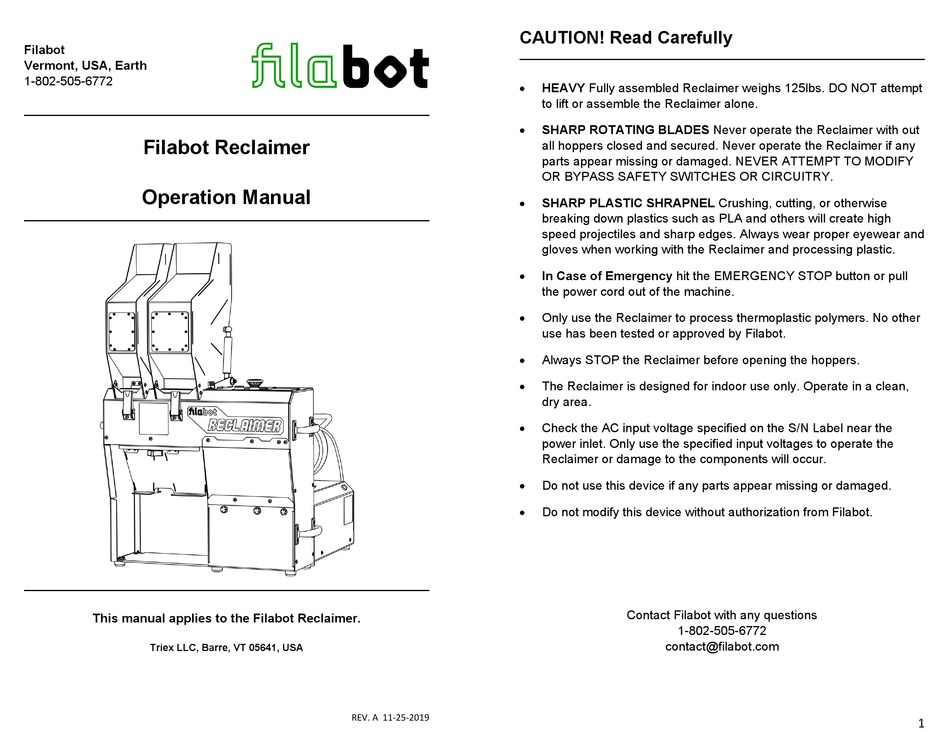

Filabot
Vermont, USA, Earth
1-802-505-6772

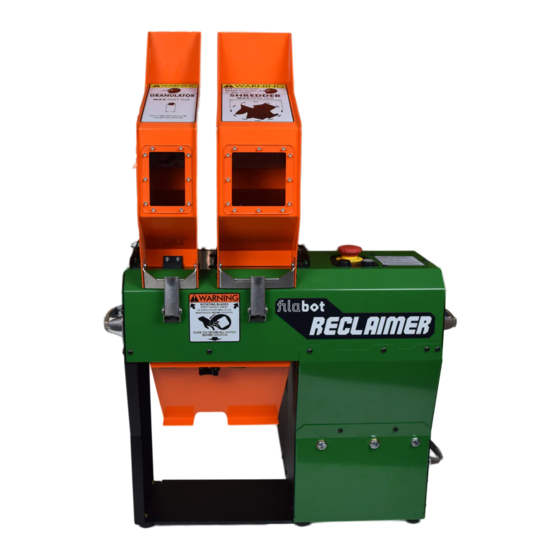

Filabot Reclaimer
Operation Manual
This manual applies to the Filabot Reclaimer.
Triex LLC, Barre, VT 05641, USA
CAUTION! Read Carefully
REV. A  11‐25‐2019



HEAVY Fully assembled Reclaimer weighs 125lbs. DO NOT attempt
to lift or assemble the Reclaimer alone.
SHARP ROTATING BLADES Never operate the Reclaimer with out
all hoppers closed and secured. Never operate the Reclaimer if any
parts appear missing or damaged. NEVER ATTEMPT TO MODIFY
OR BYPASS SAFETY SWITCHES OR CIRCUITRY.
SHARP PLASTIC SHRAPNEL Crushing, cutting, or otherwise
breaking down plastics such as PLA and others will create high
speed projectiles and sharp edges. Always wear proper eyewear and
gloves when working with the Reclaimer and processing plastic.
In Case of Emergency hit the EMERGENCY STOP button or pull
the power cord out of the machine.
Only use the Reclaimer to process thermoplastic polymers. No other
use has been tested or approved by Filabot.
Always STOP the Reclaimer before opening the hoppers.
The Reclaimer is designed for indoor use only. Operate in a clean,
dry area.
Check the AC input voltage specified on the S/N Label near the
power inlet. Only use the specified input voltages to operate the
Reclaimer or damage to the components will occur.
Do not use this device if any parts appear missing or damaged.
Do not modify this device without authorization from Filabot.
Contact Filabot with any questions
1-802-505-6772
contact@filabot.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reclaimer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Filabot Reclaimer

Summary of Contents for Filabot Reclaimer

  • Page 1 Filabot.  Always STOP the Reclaimer before opening the hoppers.  The Reclaimer is designed for indoor use only. Operate in a clean, dry area.  Check the AC input voltage specified on the S/N Label near the power inlet.

  • Page 2: General Specifications

    Rigid table capable of supporting at least 200lbs Fixed Blades: Reversible 0.50” 4140 Steel Plate Granulator: Rotating Drum: 0.20” x 0.20” Cutting Teeth 17-4 SS Hardened Fixed Blades: Reversible 0.50” 4140 Steel Plate Call 1-802-505-6772 or visit Filabot.com for additional/replacement parts 2  3     ...
  • Page 3 3/8”-16 x 1” motor bolts with lock washers and tighten them using a Two people are required to assemble the Reclaimer. 9/16” wrench. Assemble the Reclaimer on a rigid table capable of supporting at least 200lbs. If such a table is not available, assemble and operate the Reclaimer on the floor.
  • Page 4 4. 7. Using a 1/2” wrench, tighten the (4) base bolts which were loosened 10. Set the hoppers on top of the Reclaimer in the orientation shown. in step 1. 8. Remove the inner cotter pin from the hopper hinge and slide out the rode while removing the aluminum spacers and plastic washers.
  • Page 5 14. Plug the grey control cable from the back of the drive enclosure into removed from into the hole midway up the back of the hopper. the bulkhead located on the back of the Reclaimer above the motor and tighten the thumbnut to secure the connector. Make sure to allign the notch in the connector with the bump on the inside of the bulkhead.

  • Page 6: Controls & Inputs

    3. Output hopper. Flashing red (code 8) – (8 flashes followed by pause) Over current  4. Emergency stop button – Press for emergency stopping only, use Start/Stop button for normal stopping. detection, check Reclaimer for jam. To reset over current detection,  power off or hit Emergency stop and wait until indicator LED turns  5. Start and Stop button – Press to start the machine, press while running to stop the machine.

  • Page 7: Operation

    Operation window to avoid feed issues in the hopper. During operation you may need to adjust the bags so they fill completely. At anytime during shredding, or when the collection bag for the Shredder is Make sure all 3 hoppers are fully closed and latched. full, the Shredder output can be loaded into the Granulator hopper.
  • Page 8                                         2019, Triex LLC, Barre VT, USA.  No part of this manual may be copied, stored, transmitted, or  otherwise released without the express written consent of Triex LLC. This manual applies only to  the Filabot EX6.  While Triex LLC has applied all possible caution in producing this manual, we urge  the customer or user of this device to contact Triex LLC with any questions or concerns about  operation, before operating the device or making any adjustments.  Triex LLC provides no    assurance of applicability of the product to customers' requirements.  14   ...
