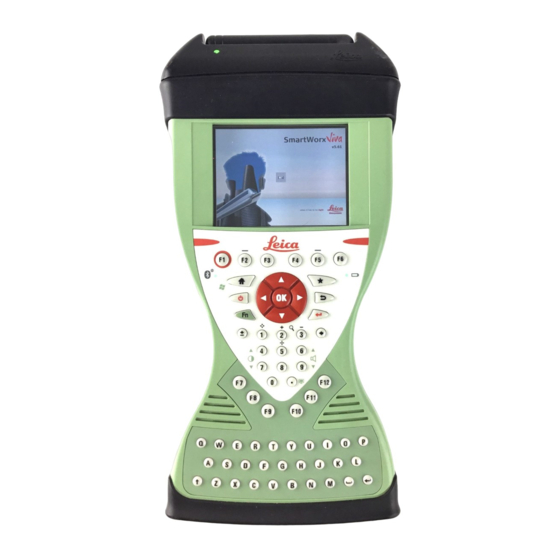

Carlson Viva CS15 Quick Start Manual

Using The Internal Modem on the Viva CS15

Install The Internet Connection Manager

This is a simple utility distributed by Leica to allow the user to setup and use the internal modem
on the CS10/CS15.
1) Download the Internet Connection Manager utility here:
http://update.carlsonsw.com/upload/file.php?id=9274&ps=16rb065lw3
2) Copy the cab file to the data collector, and double tap to complete the install.

Create a BT Pan Connection

RTK corrections will be sent to the GS15 over a Bluetooth PAN connection, which is different
from the Bluetooth connection that may be used and managed by SurvCE for communication.
The current version of SurvCE does not support setting up this BT PAN, so this step must be
performed prior to running SurvCE.
1) From the main Windows screen on the CS15, press the home button (the little house) to
bring up the start menu.
2) Choose Settings->Control Panel, and then open Bluetooth Device Properties
3) Press the Scan Devices button to search for
available devices. The GS15 Bluetooth will
be found three times, with three icons beside it.
The PAN Icon looks like a tiny GPS receiver
(NOT the blue ActiveSync icon and NOT the
gray Printer icon).
4) Tap to Highlight the
5) Tap YES when prompted "Do you need to Authenticate device?"
6) Enter in 0000 for the "Enter Pin:" prompt and tap OK
7) Under the Trusted column = tap on this new
entry then tap "Active"
8) tap OK in the upper right to close the Bluetooth
Manager
9) Confirm that the PAN connection is active-- the
blue LED on the CS15 and the GS15 will both
turn blue
This document contains confidential and proprietary information that remains the property of Carlson Software Inc.
Page 1 of 2
Pan Icon and press the
Carlson Software Inc. Carlson Software Inc.
Carlson Software Inc. Carlson Software Inc.
102 West 2 Street
nd
Maysville, KY 41056
button to move it to the Trusted side
www.carlsonsw.com www.carlsonsw.com
www.carlsonsw.com www.carlsonsw.com
Phone: (606) 564-5028
Fax: (606) 564-6422
Updated 9/20/2013
