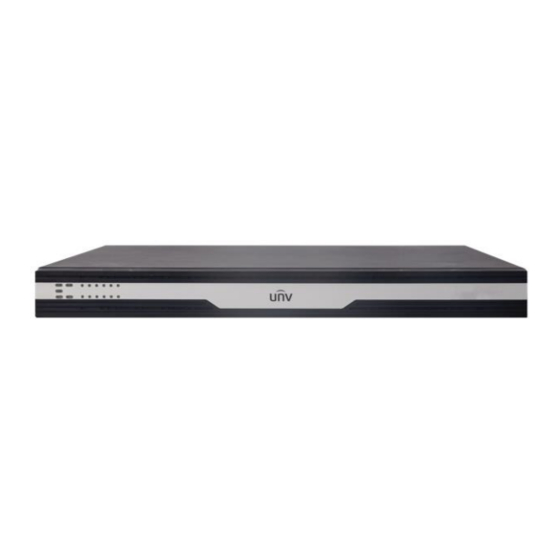

- Page 1 High Definition Video Decoder Quick Guide V1.01...
-
Page 2: Packing List
Packing List Contact your local dealer if the package is damaged or incomplete. The attachments may vary with models, please see the actual model for details. Name Unit Ground cable (applicable only to some device models) Protection pad (applicable only some device models) Mounting bracket Phoenix connector... - Page 3 Indicator Status Description Blinking The device is being started. Steady on The device runs normally. The device is shut down. The network connections over the Steady on Ethernet electric interfaces 1 and 2 are built. NET1 and NET2 The network connections over the Ethernet electric interfaces 1 and 2 are disconnected.
- Page 4 Status Description Through this serial interface, this device interacts with an external device, such as transmitting data through a transparent channel. RS485 RJ45 connector, four-wire system, supporting full-duplex/half-duplex Through this serial interface, the device is debugged and maintained. RS232 RJ45 connector Through this interface, the device is connected to an Ethernet and communicates with other devices in the network so that IPC code and web configuration of a client...
-
Page 5: Hardware Installation
Hardware Installation Installing the Device on a Workbench Usually, the device can be directly put on a clean workbench and connected with cables and other devices according to the preceding figures. During installation, confirm that: The workbench is firm enough to bear the weight of the device and cables. ... -
Page 6: Device On/Off
Device On/Off Confirming Before Power-on To avoid personal injury and component damage, check the following items before power-on: The device is installed stably and reliably, and all screws are in place and tightened. No object is put on the device. ... - Page 7 The client PC is connected to the local network of the device. No agent server is set for the browser of the client PC. The procedure for logging in to the web page is as follows: On a client PC, open the Internet Explorer, enter the IP address of the device into the address bar, and press Enter.
- Page 8 The product described in this manual may contain proprietary software owned by Uniview and its possible licensors. Unless permitted by Uniview and its licensors, no one is allowed to copy, distribute, modify, abstract, decompile, disassemble, decrypt, reverse engineer, rent, transfer, or sublicense the software in any form by any means.
- Page 9 Disclaimer of Liability To the extent allowed by applicable law, in no event will Uniview be liable for any special, incidental, indirect, consequential damages, nor for any loss of profits, data, and documents.
- Page 10 Learn More You may also obtain security information under Security Response Center at Uniview's official website. Safety Warnings The device must be installed, serviced and maintained by a trained professional with necessary safety knowledge and skills.
- Page 11 Verify that the device is properly installed before connecting it to power. Do not remove the seal from the device body without consulting Uniview first. Do not attempt to service the product yourself. Contact a trained professional for maintenance.
- Page 12 not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
