Summary of Contents for Wisi Chameleon

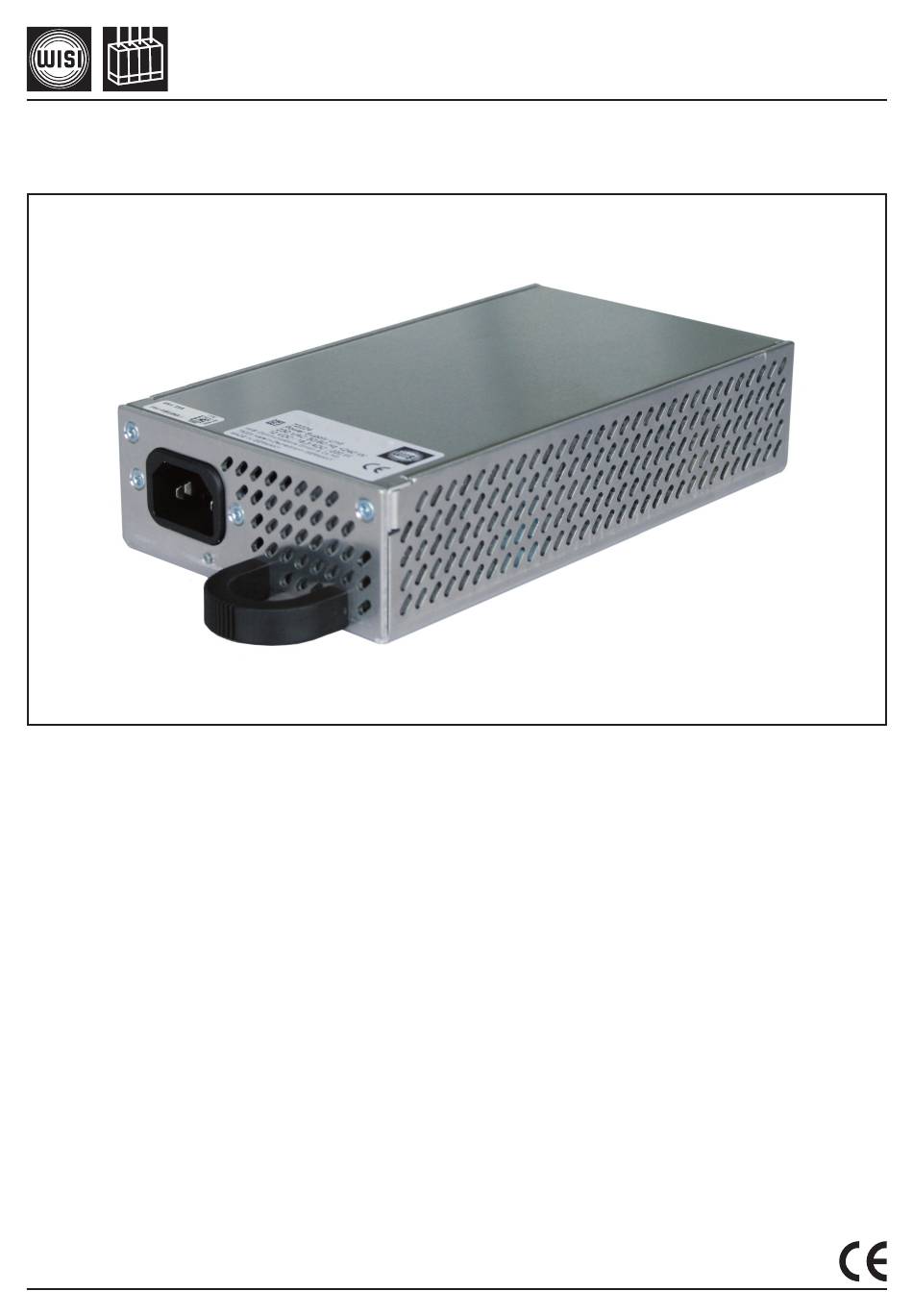

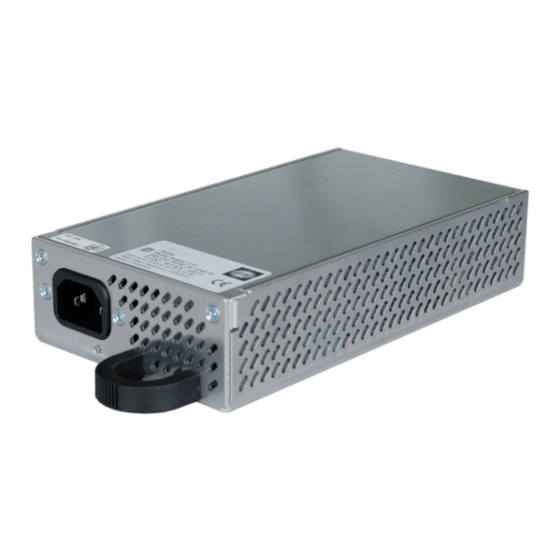

- Page 1 Quick Guide GN 55 W 0048 Chameleon redundant power supply 48 V DC GN 55 W 0230 Chameleon redundant power supply 230 V AC 413 494 a...
- Page 2 Legal Reference and Safety Standards Operation of optical communication systems is subject to national and/or international safety regulati- ons. We refer to: European directive 2006/25/EC on the minimum health and safety requirements regarding the exposure of workers to risks arising from physical agents (artificial optical radiation), International standard IEC 60825-1 (2007-03): Safety of laser products - Part 1: Equipment clas sification and requirements, and International standard IEC 60825-2 (2010-12): Safety of laser products - Part 2: Safety of optical...
- Page 3 Power Supply Module GN 55 W 0048 / 0230 Front and rear view of the power supply modules, showing connectors and the pulling handle. AC Power Supply Module GN 55 W 0230 DC Power Supply Module GN 55 W 0048 Power Supply Module Rear View: Interface towards backplane...
- Page 4 Phoenix connector for GN 55 W 0048 Phoenix connector for DC power supply PIN Assignment DC connector -60V from supply line +60V from ground...
- Page 5 Assembling redundant Power-supply Remove cover plate from GN50 (a) Insert redundant power unit (b) Fix the AC power cable in (c) Connect redundant power unit with AC power cable...
- Page 6 Technical data Dimension (W x H x D) 100 x 42 x 217 mm Input voltage GN 55 W 0230 180V … 265 VAC (47…63 Hz) GN 55 W 0048 -45V … -75 VDC Operating temperature range -5 °C – +45 °C (ETSI EN 300 019 -1-3 Class 3.2)
- Page 8 WISI Communications GmbH & Co. KG Empfangs- und Verteiltechnik Wilhelm-Sihn-Straße 5-7 75223 Niefern-Oeschelbronn, Germany Tel.: +49 7233 - 66-0, Fax: 66-350, E-mail: info@wisi.de, http://www.wisi.de Technical Modifications reserved. WISI cannot be held excellence in digital ... liable for any printing error.
