Summary of Contents for Cameron CA-555DVD
- Page 1 Cameron CA-555DVD...

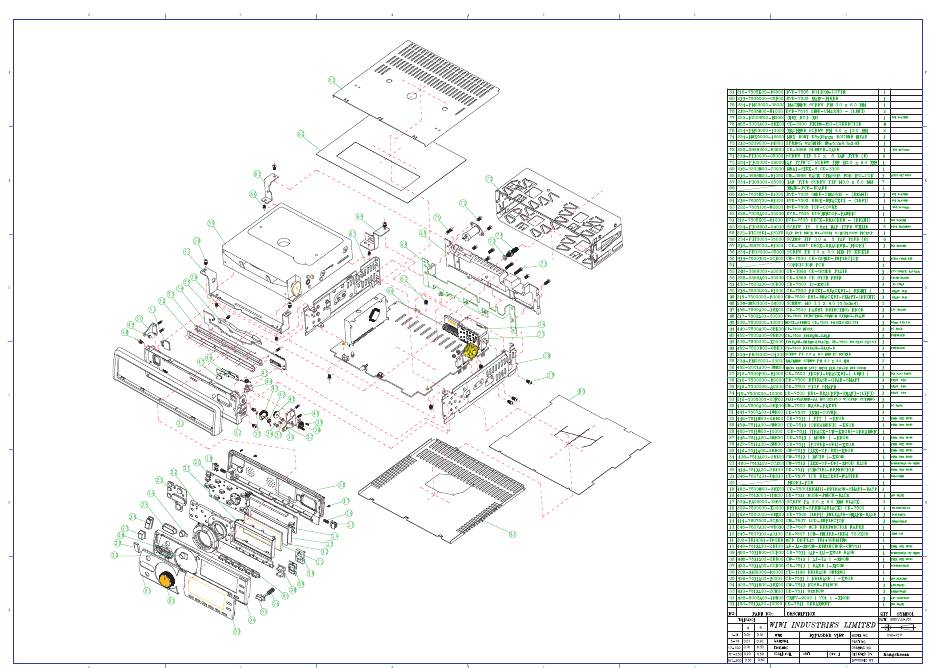

- Page 2 Spare Parts List (CA-555DVD) Part № Item Description (Код ЗЧД=Номер ЗЧД) CD-7511 ORNAMENT 483-7511A00-10000 CMPV-9002 { VOL } -KNOB 428-9002A00-1NL00 CD-7511 WINDOW 413-7511A00-2CR00 CD-7511 NOSE-PLIECE 402-7511B00-1BK00 CD-7511 { RELEASE } -KNOB 439-7511A00-10000 CD-1188 RELEASE SPRING 209-1188000-K0000 CD-7511 { BAND } -KNOB...
-
Page 3: Front Panel Assy
234-PTT3000-05000 CAR DVD DECK DL-C28D1 W/HOP1200W PICK UP (without Servo Board) 203-DLC28D1-1200W SERVO BOARD (for CD Deck) D02-DVD7505-7500DD-200 SERVO BOARD WITH DVD DECK ASSY CA-555DVD-92 60 SCREW: TS 2.6x4 TAP TYPE WHITE 234-PT02600-04000 61 DVD-7505 DECK-BRACKET - (RIGHT) 218-7505X00-E1000 62 DVD-7505 DUSTPROOF-FABRIC... - Page 4 WIWI INDUSTRIES LIMITED Product Code K02-DVD7511-270158-00A Report Date 17/01/2007 10:08:43 Item Material Code Brief Description Remarks DVD-7511 RDS CAR DVD[CAMERON CA-555 K02-DVD7511-270158-00A DVD]-RU-64104T RDS/MW/FM/OIRT,DVD,40WX4,2N/2O,BISO,CAS' C02-DVD7500-64104T-EU1 AMORPHOUS TOROID 350uH 6A 20% D22x14 H- 010-351MT22-2600A TYPE L=4MM L801 022-C101000-10000 PLUG TYPE FUSE 10A 32V RED COLOUR...
- Page 5 MICRO DAMPER ASS'Y DPP01 14TQ (19-24) RED 462-2001A00-3BK00 COLOR 462-7500A00-9BK00 CD-7500 RELEASE-GEAR [POM BLACK] 462-7500B00-9BK00 CD-7500 RELEASE-GEAR-B [POM BLACK] 802-0703E00-WE000 SILICONE GLUE 45grm 0.03 DVD-7500 DVD SERVO [ZORAN] SHINWA DECK D02-DVD7505-7500DD-200 ASSY CA-555 (DVD7511) CAMERON BOM PAGE 2 OF 13...
- Page 6 IC SST39VF1601-70-4C-EK 16Mb FLASH ROM 002-9VF1601-U048D [TSOP48] U106 IC BA5888FP BTL DRIVER FOR CD/CD-ROM FOR 002-BA5888F-D028A DVD-7505 U202. IC 64M(4MX16) SDRAM K4S641632H-TC(L)70 002-K4S6416-U050D [TSOP50] U102 IC ZR36882ELCG DVD SERVO MCU [LQFP208] 002-ZR36882-R208D ZORAN U101 CA-555 (DVD7511) CAMERON BOM PAGE 3 OF 13...
- Page 7 CHIP RES [0805] 3.3K OHM ㊣5% R318 105 011-S333A00-20000 CHIP RES [0805] 33K OHM ㊣5% R278.R105 106 011-S390A00-20000 CHIP RES [0805] 39 OHM 5% R279. 107 011-S391A00-20000 CHIP RES [0805] 390 OHM ㊣5% R106. CA-555 (DVD7511) CAMERON BOM PAGE 4 OF 13...
- Page 8 C101. C197.107.195.194.192.193.190.191. 132 014-S330C00-400NP CHIP CAP [0805] 33PF 50V +/-5% NPO 189.186.187.188.336.332.326.322 133 014-S471C00-50000 CHIP CAP [0805] 471P (470PF) 50V 10% C205.216 SMT 24P FFC CONN PT=0.5 H-TYPE UPPER 134 036-G00500A-242L0 CONTACT CA-555 (DVD7511) CAMERON BOM PAGE 5 OF 13...
- Page 9 ZD705.706.704.703. 159 005-0006800-A0000 ZENER DIODE 6.8V 1/2W +/-5% ZD831 160 005-0008200-A0000 ZENER DIODE 8.2V 1/2W +/-5% ZD1.ZD401 161 005-0009100-A0000 ZENER DIODE 1/2W 9.1V ZD701.803. 162 006-0433200-40000 CRYSTAL 4.332MHz HC49US 30PPM CL=16PF X702 CA-555 (DVD7511) CAMERON BOM PAGE 6 OF 13...
- Page 10 E-CAP [13x26] 2200uF 25V 20% 85C C813 188 014-A103C00-60000 CER CAP 103P (0.01uF) 50V ㊣20% C106. 189 023-A005000-RD000 LED RED DIA=5mm 2V/20mA 25-40mcd MICRO DETECTOR SWITCH [1P1T] 1120B FOR 190 025-LF1120B-00000 CD7600 CA-555 (DVD7511) CAMERON BOM PAGE 7 OF 13...
- Page 11 CHIP RES [0805] 27K OHM ㊣5% R837.914. 214 011-S331A00-20000 CHIP RES [0805] 330 OHM ㊣5% R615.616.141.143. 215 011-S332A00-20000 CHIP RES [0805] 3.3K OHM ㊣5% R519.518.135.136.8.109.17.601 216 011-S333A00-20000 CHIP RES [0805] 33K OHM ㊣5% R806. CA-555 (DVD7511) CAMERON BOM PAGE 8 OF 13...
- Page 12 239 001-3300D00-A9000 P.C.B ISO BOARD DIODE-RECTIFIER 1N5404, 400V 3A [DO-201AD] 240 004-1N5404A-00000 PACKING 241 036-K025000-12000 12Pin P=2.5mm PCB Connector Right Angle 242 263-3300000-A0000 TERMINAL-FUSE CD-3300 ISO SOCKET - TERMINAL-CONTACT 243 263-3300000-B0000 [COPPER] CA-555 (DVD7511) CAMERON BOM PAGE 9 OF 13...
- Page 13 CD-7511 {ORNAMENT} -KNOB [PMMA] SKY BLUE CD-7511 {TRK-UP-DN}-KNOB BASE [RUBBER] 267 460-7511A00-CCR00 CLEAR CD-7511 {AF-TA}-KNOB BASE [RUBBER] CLEAR 268 460-7511B00-CCR00 SPY WHITE CD-7500 {LEFT} RELEASE-SHAFT-BASE [POM] 269 462-7500C00-9BK00 BLACK CD-7500 {RIGHT}-RELEASE-SHAFT-BASE [POM] 270 462-7500D00-9BK00 BLACK CA-555 (DVD7511) CAMERON BOM PAGE 10 OF 13...
- Page 14 CHIP RES [1206] 220 OHM ㊣5% R25. 295 011-S000A00-20000 CHIP RES [0805] 0 OHM 5% R23. 296 011-S101A00-20000 CHIP RES [0805] 100 OHM 5% R30. 297 011-S102A00-20000 CHIP RES [0805] 1K OHM 5% R26.9. CA-555 (DVD7511) CAMERON BOM PAGE 11 OF 13...
- Page 15 20mA DVD-7511 MP3[CAMERON CA-555 DVD]-RU- P02-DVD7511-270158-00A 64104T PACKING RCA TO RCA VIDEO CORD SET L=1.5M BLACK 318 034-H020200-M15BK W/YEL PLUG REMOTE DVD-7511 RDS MP3[CAMERON CA-555 319 060-7511036-270158A DVD] 320 061-CR20250-B0000 BUTTON LITHIUM BATTERY CR2025 3.0V 321 212-5209000-14S00 SPRING WASHER ID=5.2x9.0x1.4T 322 212-5210000-05P00 PLATE WASHER (φ5.2)
- Page 16 POLY BAG 6-5/8" X 10-1/2" X 0.04MM THK [PE] 333 301-0C11000-14000 POLY BAG 11"x14"XT0.04 334 303-MR30000-PS060 POLYFOAM MR-300 264x79.5x57 FOR CAR AUDIO GIFT BOX DVD-7511 MP3 RDS MW FM[CAMERON 335 304-7511036-270158A CA-555 DVD I/M(EN/RU/PO/UK) DVD-7511 MW FM[CAMERON 336 305-7511036-270158A CA-555 DVD...
