Instruction Manual

Android auto

Apple Carplay

AUDI Carplay

Table of Contents

Need help?

Do you have a question about the AUDI Carplay and is the answer not in the manual?

Questions and answers

Summary of Contents for Parkes Dynamic Retrofits AUDI Carplay

Page 1 Instruction Manual Android auto Apple Carplay AUDI Carplay...

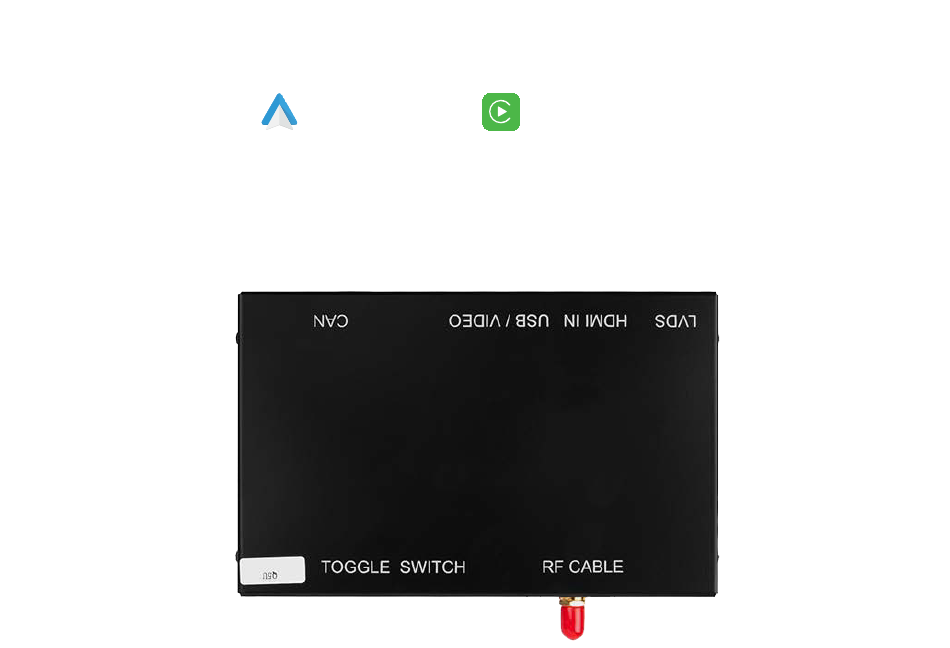

Page 2 Carplay introduction Features * Use the OEM Microphone. Don't replace the OEM screen and head unit * Sound outputs via AUX in Carplay system. For the car without AUX, connect AMI- to- AUX cable to AMI port to get sound * Support Wireless/Wired Carplay connection * Support Wireless/Wired Android auto connection * Support USB HD playback function...
Page 3 Accessories LVDS-CPCAR1702C-All AV-USB-GP68 Antenna Main harness for different car models Main Harness Main Harness Main Harness Main Harness Main Harness CAN-GPXI1701-A7C CAN-GPXI1701-A8 CAN-GPXI1701-Q3S CAN-GPXI1701-Q5U CAN-GPXI1701-A6...
Page 4 Connection Diagram We recommend using for each phone manufacturer genuine cable. Do not use “Adapter Type and Multi cable” Apple Car Play AV Cable Google Android Apple iPhone REVERSE CAM HDMI IN REVERSE CAM <Only Supports 720P> FRONT CAM LVDS HDMI IN USB / VIDEO FRONT CAM...
Page 5 DIP Switch Setting ON : OFF : ...
Page 6 Wireless Carplay Connection 1.Turn on WIFI (Fig.1) 2.Turn on Bluetooth (Fig.2), and connect Carplay's bluetooth (Fig.3/4) 3.After the bluetooth connection is completed, the following prompts will pop up, click 'Allow-Use carplay' (Fig.5/6) ① ② ③ Bluetooth ④ ⑥ ⑤ Use Carplay Allow Pair...
Page 7 4.After the connection is successful, the Carplay icon will display on the main menu of the screen(Fig.7). And it will enter Carplay automatically(Fig.8) ⑧ ⑦ Wired Android auto connection 1.Download Android auto APP on your Android phone(Fig.1). 2.Click 'WireAuto' icon(Fig.2), the prompt 'Please connect your Android device' will pop up(Fig.3). 3.Plug your phone to USB port.
Page 8 Wireless Android auto connection 1.Turn on WIFI (Fig.1) 2.Turn on Bluetooth (Fig.2) 3.Search the Android phone's bluetooth on the screen in Carplay system(Fig.3/4/5) 4.Pair the bluetooth with your phone.(Fig.6) 5.After connecting the bluetooth, it will pop up the following prompts(Fig.7/8) 6.Then it will enter Android auto automatically(Fig.9)
Page 9 Wireless Airplay connection 1.Click 'Airplay' icon first (Fig.1), the pairing information with the phone will be displayed (Fig.2) 2.Search wifi signal of Airplay and conenct (Fig.3/4) 3.Turn on Airplay (Fig5/6) 4.After connecting Airplay, it will show like Fig.7 Note: If you have connected Carplay before, you need to disconnect Carplay first!
Page 10 Wired Autolink connection 1.Download Android auto APP on your Android phone(Fig.1). 2.Click 'Autolink' icon(Fig.2), the prompt 'Please connect your Android device' will pop up(Fig.3). 3.Plug your phone to USB port(Fig.4). then it will enter Android auto automatically(Fig.5). ② ① ④ ⑤...
Page 11 Activation by original buttons Apple Car Play Audi A6 3G MMI Controller Button Function Operation Remarks Press the button 3 seconds Order : OEM → Car Play Changing Modes Press the button short time Return to the OEM mode in any modes. Apple Car Play Function Move the Turn the dial...
Page 14 1.Q: How to set language? A: Please set language as the following picture shows. There are 6 languages in all now. We also offer language customization for free. For detailed information, contact with the seller. 2.Q: I don't have sound on Carplay system, how to solve ? A: 1) if your car has AUX function, set on OEM system 2) No AUX on your car, you need to buy AMI-to-AUX cable to get sound.
Page 15 3.Q: How to switch OEM system to Carplay system? A: Long press button Car/Media/Info/Menu to switch, different cars are matched by different buttons, usually the MENU button. 4.Q: I can't connect wireless Carplay automatically, what can I do? A:you can do as following solutions. 1) Please confirm if you turn on wifi and connect carplay's bluetooth.
Page 16 2) For adding camera [Method1]: 1.Connect the reverse camera to CVBS OUT labeled 'Reverse camera'. 2.Connect the cable labeled '12V reverse camera' to camera power. 3.Set and connect as the following picture shows. For adding camera [Method2]: 1.Connect the reverse camera to CVBS OUT labeled 'Reverse camera'. 2.Connect the cable labeled '12V reverse camera(Yellow)' and 'Back(Purple)' to camera power.
Page 17 6.Q: can I connect wireless Android auto with my huawei mate 20? A: Huawei doesn't support wireless connection. The following phone models support wireless Android auto. 7.Q:when I call others, they can hear what they say, how to fix it? A: 1) Adjust 'Microphone volume' to 12, 'Microphone PGA' to 24 2) Adjust 'Microphone OP' from 0 until the sound is loud enough, Keeping the OP value is as small as possible 3) Fine-tune the 'Microphone PGA' at this time.
