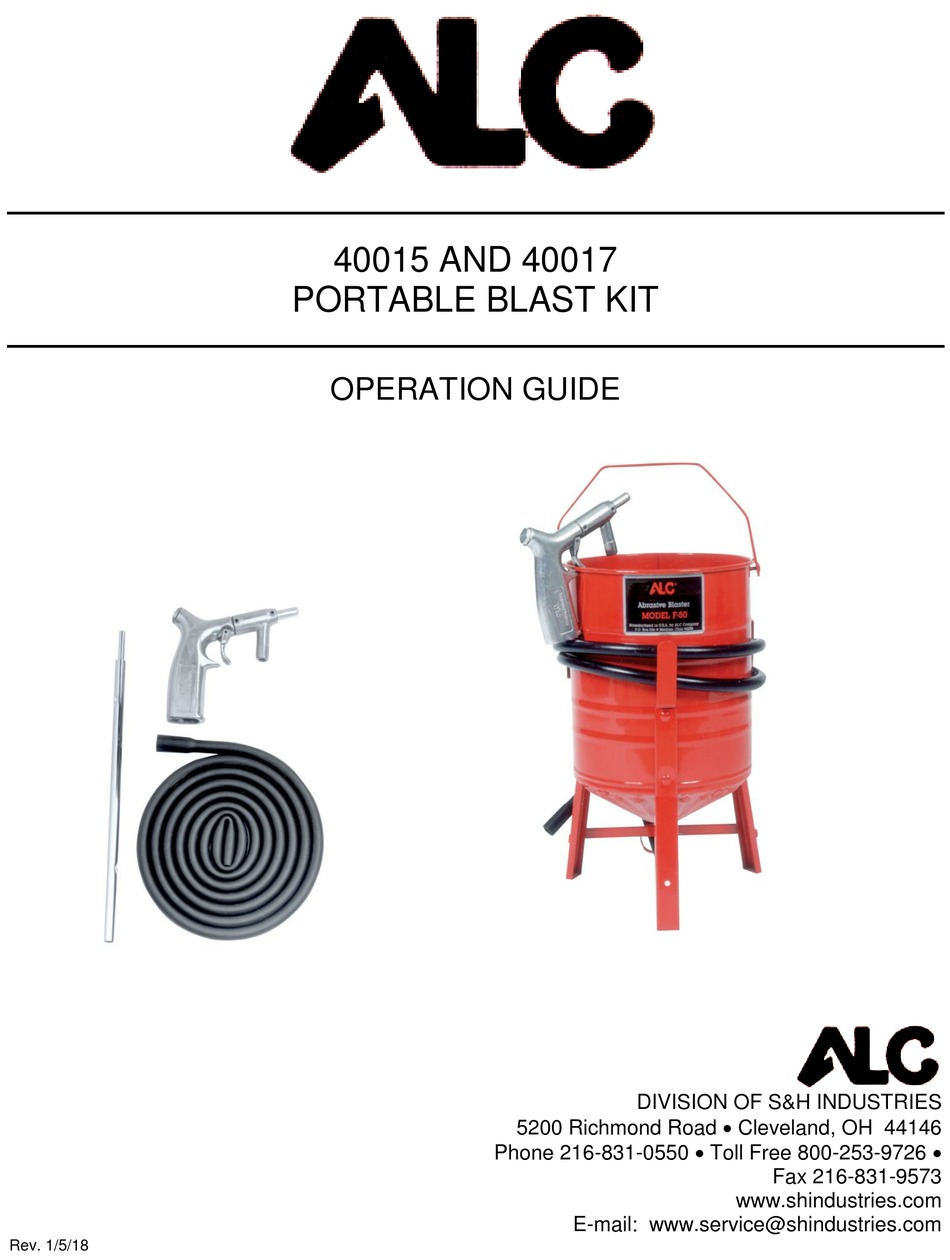

- Page 1 40015 AND 40017 PORTABLE BLAST KIT OPERATION GUIDE DIVISION OF S&H INDUSTRIES 5200 Richmond Road Cleveland, OH 44146 Phone 216-831-0550 Toll Free 800-253-9726 Fax 216-831-9573 www.shindustries.com E-mail: www.service@shindustries.com Rev. 1/5/18...
- Page 2 40015 AND 40017 Assembly Instructions Page 2 WARNING! Do not use an ALC Blaster until you have read this manual and you understand its contents and warnings. These warnings are included for the health and safety of the operator and those in the immediate vicinity.
- Page 3 40015 AND 40017 Assembly Instructions Page 3 OPERATION GUIDE APPLICATIONS 1. ABRASIVE BLASTING: Your device is designed to spray abrasive material such as black beauty, aluminum oxide, glass beads, metal shot, silicon carbide, ground corncobs, and ground nut shells. The abrasive blasting of rust, paint, scale, grease, old paint, mold, mildew and other corrosion from metal, wood, stone and fiberglass are ideal applications for the abrasive blast cleaner.
-
Page 4: Operation
40015 AND 40017 Assembly Instructions Page 4 and nozzle holders may not adequately grip worn hose, causing them to blow off under pressure. Compressed air and abrasive escaping from a burst hose, or disconnected coupling or nozzle holder, could cause severe injury. Always place the device so that the outlet is pointed away from any objects or persons. - Page 5 40015 AND 40017 Assembly Instructions Page 5 ensure that the suction head is holding the air jet and rubber sealing washer tightly against the gun body. Tighten the set screw securely, making sure that it is sitting in the proper groove on the gun handle. Also, periodically check the abrasive hose for leaks or cracks.
-
Page 6: Troubleshooting Tips
40015 AND 40017 Assembly Instructions Page 6 Glass Bead #40105 Glass Bead is used in creating a satin or matte finish. Glass Bead is recommended in reclaim systems or cabinets. (25 Lb. container) Aluminum Oxide #40098 Aluminum Oxide is a high quality abrasive that is sharper than sand (not recommended) and cuts twice as fast as sand. - Page 7 40015 AND 40017 Assembly Instructions Page 7 Overtaxed compressor: Compressor too small Restrict time used Nozzle size too large Use smaller size Too many leaks in plumbing Seal and tighten plumbing Holes in abrasive hose Replace hose Air filter on compressor plugged Clean Lack of air pressure: Compressor too small...
-
Page 8: Replacement Parts And Accessories
40015 AND 40017 Assembly Instructions Page 8 REPLACEMENT PARTS AND ACCESSORIES REPLACEMENT PARTS Part No. Description Blast gun body (equipped with 1/4” nozzle, 1/8” air jet) 40153 40136 Blast gun handle only, with trigger and valve 40141 Blast gun siphon head only, with nozzle and air jet (threaded) 40159 Bottle assembly only, complete 40156... -
Page 9: Limited Warranty
40015 AND 40017 Assembly Instructions Page 9 FOR A PARTICULAR PURPOSE WITH RESPECT TO ANY OF THE GOODS, AND S & H INDUSTRIES, INC. EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES AGAINST INFRINGEMENT. S & H INDUSTRIES, INC. WARRANTIES SHALL NOT APPLY TO ANY DAMAGE OR NON-CONFORMITY RESULTING FROM THE NEGLIGENT OF IMPROPER ASSEMBLY OR USE OF ANY GOODS BY USERS OR BUYER OR ITS EMPLOYEES OR AGENTS, OR FROM ALTERATION OR ATTEMPTED REPAIR BY ANY PERSON OTHER THAN S &...
