Summary of Contents for First Power Stinger Hornet

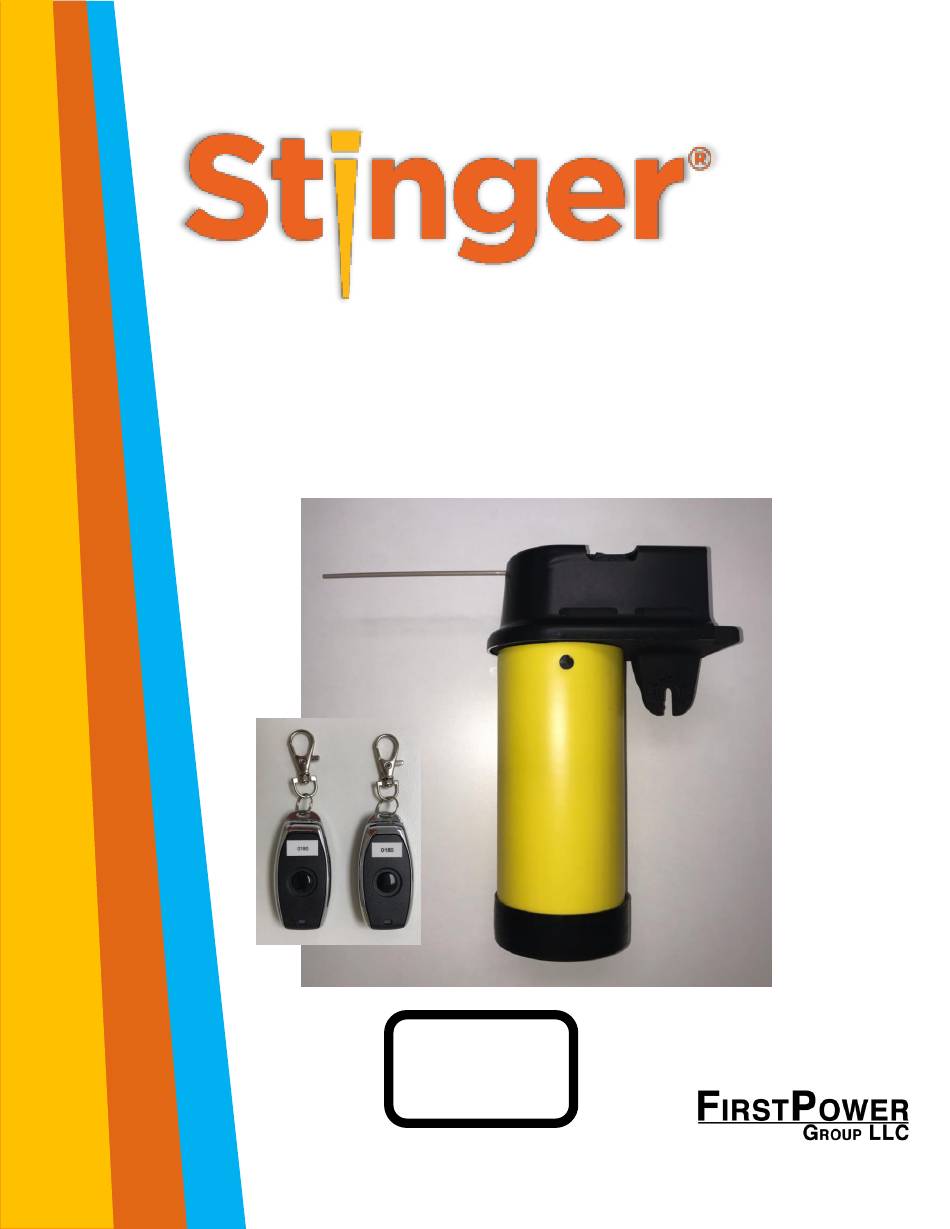

- Page 1 ® Stinger Hornet Operator’s Manual Revision A.1 PATENT PENDING 8941 Dutton Dr, Twinsburg, Ohio 44087 330-963-2050...
-
Page 2: Table Of Contents
Table of Contents ……………………………………………………… Stinger®Hornet Kit Overview ……………………………………………………………………………………. 2 Quick Start Guide ………………………………………….. GoPro® Camera Installation and Usage Replace Stinger® Hornet Batteries ………………………………… Replace Keyfob Transmitter Batteries ………………………………… ………………………………………………………………………… Stinger® Fluid Overview …………………………………………. 11 Recommended Maintenance and Safety ………………………………………………………… Specifications and Certifications ……………………………………………………………………………. -
Page 3: Stinger®Hornet Kit Overview
Stinger® Kit Overview Stinger® Hornet: Non-flammable, non-conductive housing and Can Cover safely protects the can and houses the Receiver electronics, plumbing and valve to route the Stinger® fluid to the spray nozzle. Keyfob Transmitters: The Stinger® Hornet comes with two Keyfob Transmitters, allowing Stinger®... -
Page 4: Quick Start Guide
Quick Start Guide Step 1: Take the Stinger® Hornet out of the Case. Step 2: Remove the (yellow) Can Cover on the bottom of the Stinger® Hornet by rotating counter-clockwise turn and removing. Step 3: Fully screw in the threaded top of the appropriate Stinger®... - Page 5 Quick Start Guide Step 5: Power on the Stinger® Hornet by flipping the Switch from the Off Position to On Position. Step 6: Attach the fully assembled Stinger® Hornet to the hot stick using the toothed hot stick adapter (Hot Stick Adapter) on the bottom of the Stinger®...
- Page 6 Quick Start Guide Step 7: Press the Button on one of the Keyfob Transmitters provided to disperse the liquid. The liquid will continuously stream out of the nozzle while the Keyfob Transmitter is pressed. If the Keyfob Transmitter LED does not flash ON when the button is pressed, the batteries in the Keyfob Transmitter must be replaced.
-
Page 7: Gopro® Camera Installation And Usage
GoPro® Camera Installation and Usage Note: FirstPower Group LLC does not supply the microSD cards with the camera. Step 1: Lift the grey Rubber Locking Plug that is a part of the GoPro® Camera so that it is touching the back of the camera as shown below. Before After Rubber... - Page 8 GoPro® Camera Installation and Usage Step 3: Slide the GoPro® Camera into the camera mount and press down the Locking Plug. Make sure that the camera lens is in the proper direction. Sliding the GoPro® Camera into the camera mount Step 4: Clamp the Camera Mount onto the hot stick at the desired height.
-
Page 9: Replace Stinger® Hornet Batteries
Battery Replacement Replace Stinger® Hornet Batteries Step 1. Turn the Stinger® Hornet OFF Step 2. Slide the Stinger® Hornet cover to expose the Battery compartment. Step 3. Push down and then forward on each battery to remove. The springs will cause the batteries to “pop up” for removal. Pull each battery out and disconnect from the connector. -
Page 10: Replace Keyfob Transmitter Batteries
Battery Replacement Replace Transmitter Keyfob Batteries The status of the batteries is indicated by the Transmitter keyfob’s LED. If the LED doesn’t flash on when the button is pressed, then the batteries must be replaced. Step 1: Flip the Transmitter Bottom over so that it is on its bottom side. - Page 11 Battery Replacement Replace Transmitter Keyfob Batteries Step 3: Remove the green Metal Circuit Board circuit board from the Container Transmitter. Gently pull on the black plastic ring that holds the batteries, from the Batteries metal container. Both batteries are directly stacked Black on top of each other and will Plastic...
-
Page 12: Stinger® Fluid Overview
Stinger® Fluid Overview 1FR - Penetrant Stinger® Fluid 1FR is a fast-acting penetrant that frees corroded disconnect switches, bushings, and bolts. 1FR has a proprietary threaded top which only allows it to be used in the Stinger® Hornet. Simply, apply to a seized joint and let sit for 20-30 minutes to ensure penetration and repeat if needed... -
Page 13: Recommended Maintenance And Safety
Recommended Maintenance and Safety Recommended Maintenance Extend the life of the Stinger® Hornet by not storing outdoors or in extreme conditions Wipe the Stinger® Hornet using a clean lint-free cloth after each use. o DO NOT USE CHEMICAL SOLVENTS AS THIS WILL VOID WARRANTY. THIS WILL COMPROMISE THE DIELECTRIC PROPERTIES OF THE STINGER®... -
Page 14: Specifications And Certifications
Specifications and Certifications The Stinger® Hornet: Dimensions: 10.25 inches by 10.75 inches Weight: 2 lbs (with full can) Material: dielectric resin o ASTM D149 tested to 221 kV/in The Stinger® Hornet passed a Proximity High Voltage Withstand test to 280kV Stinger®... -
Page 15: Parts Diagram
Parts Diagram Part Number: Description: Quantity Stgr-Hornet Stinger® Hornet with Can Cover and nozzle Stgr-31010 Keyfob Transmitters with Lanyard Stgr-30040 Stinger® Hornet hot stick Extension Stgr-7000 *** GoPro® Camera*** Stgr-30030 Mount for GoPro® Camera *** Stgr-Aerosol 1FR 1FR Penetrant Not included in Stinger® Hornet Kit Stgr-Aerosol 2C 2C Cleaner Not included in Stinger®... - Page 16 Questions? Contact FirstPower Group LLC at 330-963-2050...
