A:
15 Castleridge Crt
Narre Warren South VIC 3805
P:
(03) 9705 2149
M:
0411 201 125
E:
info@asnpl.com.au
W:
www.asnpl.com.au
DESIGN REVIEWED
This design has been reviewed to assess the disability access provisions as stated in current
legislative Acts , Codes and Standards. This design review has been conducted by the below
signed Accredited Member under the Association of Consultants in Access Australia (ACAA).
Signed:
Date:
21/06/2016
ACAA MN: 175
Advertisement
Table of Contents
Related Manuals for Greenplate 300
Summary of Contents for Greenplate 300
- Page 1 15 Castleridge Crt Narre Warren South VIC 3805 (03) 9705 2149 0411 201 125 info@asnpl.com.au www.asnpl.com.au DESIGN REVIEWED This design has been reviewed to assess the disability access provisions as stated in current legislative Acts , Codes and Standards. This design review has been conducted by the below signed Accredited Member under the Association of Consultants in Access Australia (ACAA).

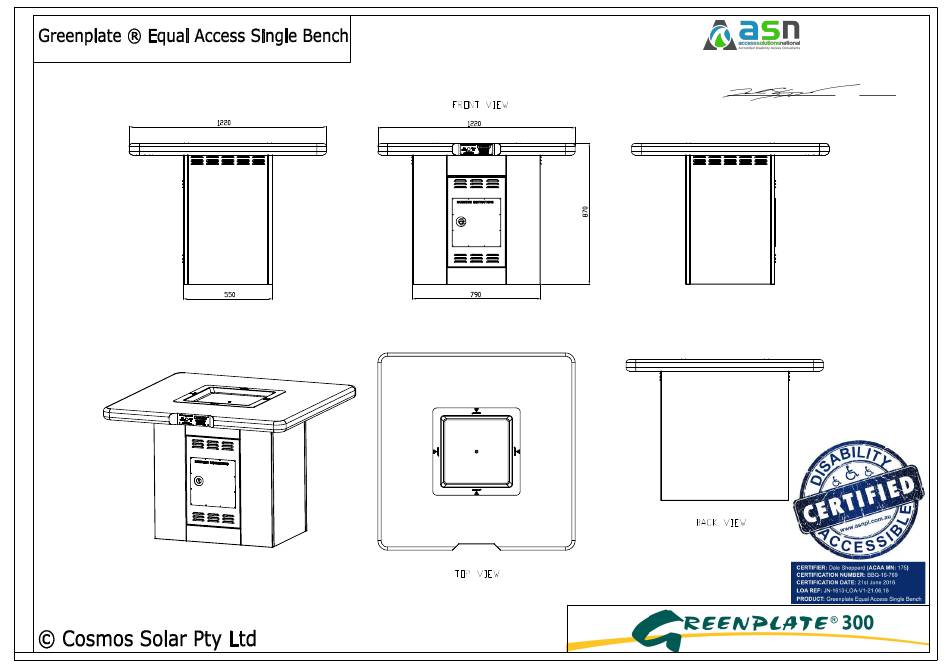

- Page 2 Access Solutions National P/L ACN: 110 131 676 ABN: 69 110 131 676 A: 15 Castleridge Crt Narre Warren South VIC 3805 P: (03) 9705 2149 M: 0411 20 11 25 E: info@asnpl.com.au W: www.asnpl.com.auL 21 June 2016 JN-1613-LOA-V1-21.06.16 Peter Hurley A: Unit 2/15 Natasha St Contact Details: Greenplate P/L Capalaba QLD 4157 P: 0438 203 120 E: peter@greenplate.com.au Dear Peter RE: Accessibility Design Certification – BBQ – Greenplate Equal Access Single Bench Access Solutions National Pty. Ltd. (ASN) has been engaged to review and confirm accessibility as required by current legislation and best practice relating of the above mentioned product by Greenplate P/L. The review has been based upon a comparison to the requirements in Australian Standard AS1428.1 – 2009 Figure 44 (A) and AS1428.2 Figure 20 (b). It is important to note that there are no specific Australian Standards for disability access that directly apply to BBQ’s, therefore all references and comparisons to these Standards are done so as current best practice. Therefore, upon reviewing the BBQ – Greenplate Equal Access Single Bench (as shown in Appendix 1 following) ASN confirms that the design, in our professional capacity and opinion, is accessible to a wide range of community members inclusive of people with disability. ASN grants the BBQ – Greenplate Equal Access Single Bench (as shown in Appendix 1 following) the status of: DISABILITY ACCESSIBLE – CERTIFIED (BBQ-16-769) The above status allows the above client the freedom to promote this product as accessible. ***NOTE*** - Accessible may not mean compliant to an Act, Standard or Code but useable & accessible. This certification is not transferrable to any other product. Should further explanation or information be required please feel free to contact myself directly. Kind Regards, Dale Sheppard ( ACAA MN: 175) Director - Access Solutions National P/L...
- Page 3 ELECTRICAL WIRING REQUIRMENTS: Electrical wiring to waterproof GPO 10 amp to AS3000:2007 standard requires a minimum of 2.5 mm² cabling for each Greenplate Inbench barbecue unit, larger for long runs, with each barbecue unit having its own 20 amp RCBO C-Curve type A in the mains sub-board.

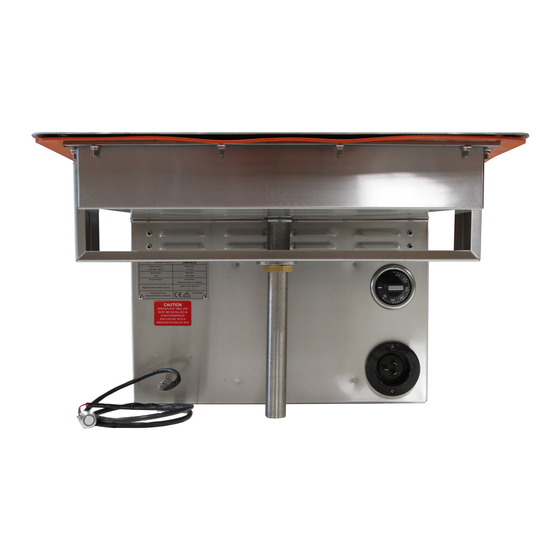

- Page 4 0.035m² required. All Greenplate ® benches are pre-fitted with adequate ventilation. Cut square hole into bench top where desired (490 mm x 490 mm). Carefully lower Greenplate ® 300 unit into opening. Install lockdown U bracket, threaded drain pipe and washers as per (Figure 3.). Position Remote ON/Off push button switch to your desired location (19 mm hole).
