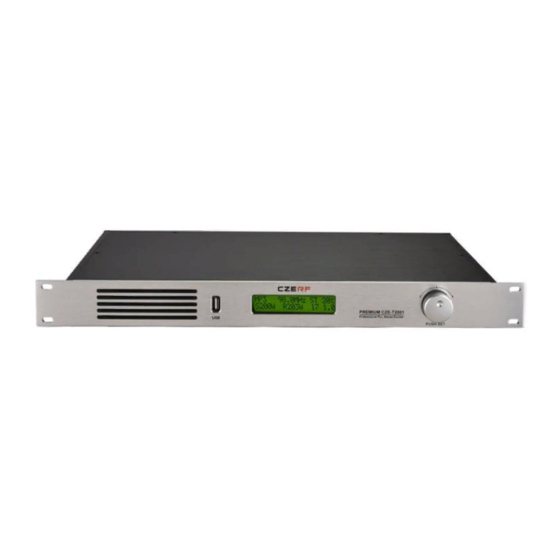

CZE-T2001 200w FM transmitter USER
1. Attention before use:
Make sure the supplied voltage is within the acceptable range.
1)
Only professionals can do the maintenance.
2)
Please make sure the antenna has lightening protection.
3)
Please don't touch the antenna when the machine is connected with power
4)
supply.
Please don't power on the machine without connecting antenna.
5)
Please don't use the transmitter in explosive environment(e.g. gas station,
6)
places with gas or steam)
Please don't use the transmitter in extreme dusty, damp, hot environment.
7)
Please use the transmitter under the regulations by local wireless
8)
administration institutions.
MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the CZE-T2001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Czerf CZE-T2001

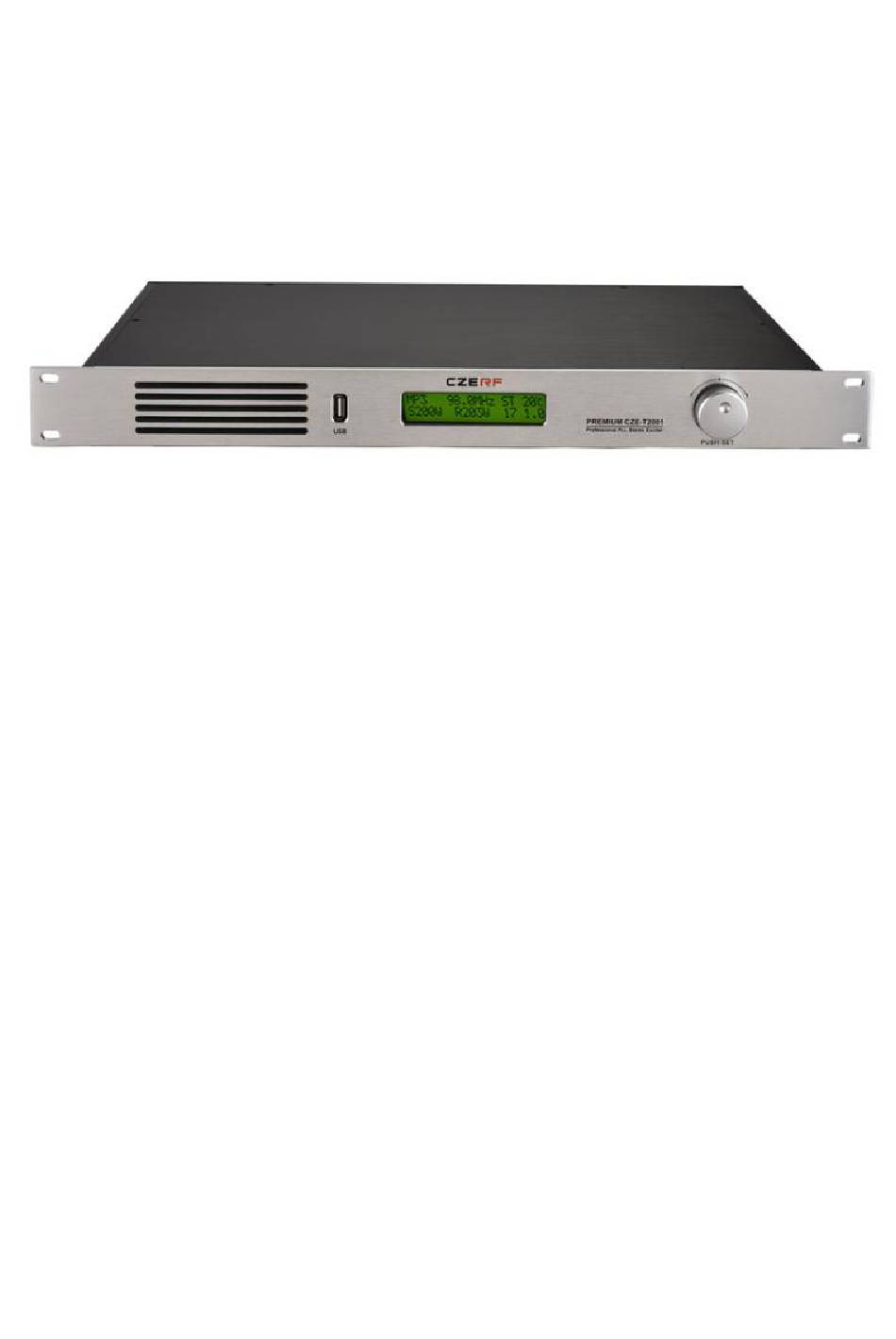

  • Page 1 CZE-T2001 200w FM transmitter USER MANUAL 1. Attention before use: Make sure the supplied voltage is within the acceptable range. Only professionals can do the maintenance. Please make sure the antenna has lightening protection. Please don’t touch the antenna when the machine is connected with power supply.
  • Page 2 2. Menu 1) Product features 2) Product configuration 3) Product user guide 4) Product specification 5) Troubleshoot 3.Functional support: 1, the frequency range of 87.5 ~ 108MHz 2, power adjustable 0 ~ 200W 3, the volume adjustable 0 ~ 30 4, external source function 5, MP3 player function 6, MP3 playback pause control...
  • Page 3 NAME DESCRIPTION UNIT PORT FM transmitter CZE-T2001 AC POWER CORD THREE PHASE DC AC INPUT Aluminum antenna 1/2 wave antenna 5、User Guide 1) Front and Back Panel description Screen display Adjusting Knob Cooling hole Back Panel Mixer RF output Power...
  • Page 4 Press and hold Confirm On Main page, press and hold to enter Menu 3) Operation Instruction a). Turn ON Check the antenna first, make sure it’s well connected. Then connect the power cord to home socket, press the power button to I position to turn ON the transmitter.
  • Page 5 Reflecting power :  SWR:  Real-time internal working temperature:  Line-in Volume :  Sound Mode: ST means Stereo,MO means Mono  b). Function and Parameter setting Press the knob to enter Menu page. Turn the knob to shift pages. There are 11 pages altogether.
  • Page 6 Frequency setting  On the Menu page, turn the knob to page 1 FERQ setting, press the knob to enter setting. Turn the knob to adjust the frequency by stepping of 0.1MHz, then press the knob to confirm setting and exit. optional(line-in/MP3) Audio input ...
  • Page 7 • MP3 Setting On the Menu page,turn the knob to “MP3 PLAY SET”,press the knob to enter setting. Turn the knob to adjust the Mp3 Play setting,then press the knob to confirm setting and exit. • MP3 Plays songs number On the Menu page,turn the knob to “MP3 NUMBER SET”,press the knob to enter setting.
  • Page 8 SWR protection setting  On the Menu page, turn the knob SWR SET setting, press the knob to enter setting. Turn the knob to adjust the SWR protection point within the range of 1.5~3.5, then press the knob to confirm setting and exit. Device Parameter ...
  • Page 9: Troubleshooting

    Item Specification Working Voltage 200~240V AC/50Hz Frequency Range 87.0~108.0MHz Audio type Frequency Modulation ±75KHZ Harmonic,clutter radiation ≤-60dB Output Impedance 50Ω Frequency Response 30Hz~15000Hz Audio distortion 0.05% ≥70dB Separation ≥55dB Environment temperature -10℃~45℃ Input level ≤1V(Vpp) RF output power 0~200W Working Current ﹤1.5A(AC)...
  • Page 10 1)Fan is not working; 2 ) Antenna doesn't match transmitter, the SWR Temperature Alarm value is too high, thus temperature rises up. 3)The fan holes are jammed. 1)Antenna not well connected. 2)SWR value is too high because antenna doesn’t SWR value is too high match transmitter 3) There are too many reflecting objects close to antenna.
