Summary of Contents for Everfit BFK 300

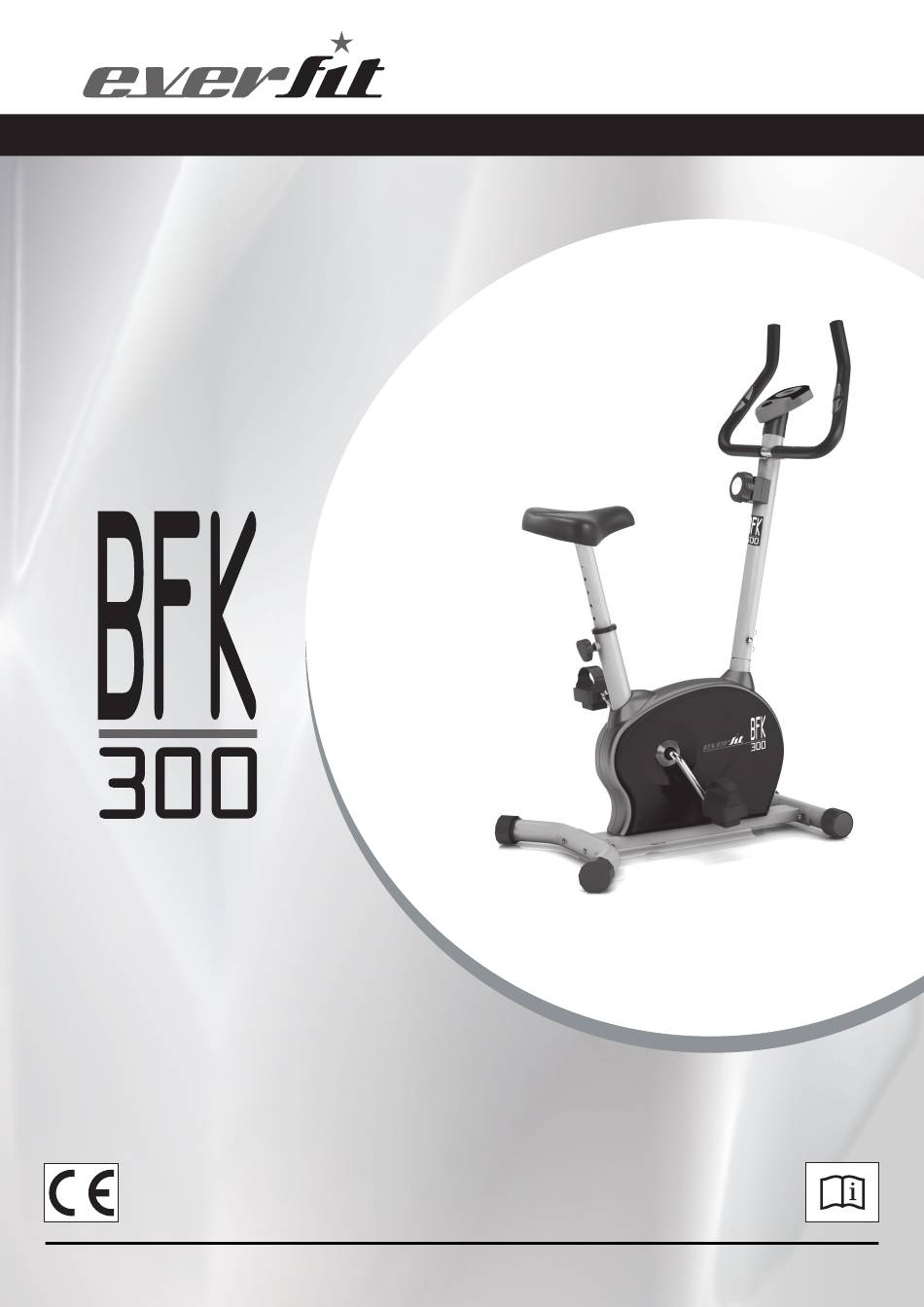

- Page 1 INSTRUCTION Ed : 02/17 Rev : 00...
- Page 3 ASSEMBLY INSTRUCTIONS Step 1 Assembly the rear and front stabilizer (27&24) with 4 bolts (21), 4 nuts (26) and 4 washers (7). Step 2 Connect the computer cable up (6) and down (17), connect the tension control cable up (15) and down (16) as shown in the right sketch.
- Page 4 ASSEMBLY INSTRUCTIONS Step 4 Assemble the handlebar (9) to the bracket on the handlebar post, fix it with two screws (8) and two washers (7). Assemble the left hand pedal (22) to the left hand crank (screw anticlockwise) and the right hand pedal (23) to right hand crank.
-
Page 5: Parts List
PARTS LIST DESCRIPTION Q'TY Computer 1PCS Sensor cable connector 1PCS Hand pulse cable (upper) 1PCS Plastic tray 1PCS Hand pulse cable (lower) 1PCS Sensor cable (upper) 1PCS Semicircle washer 10PCS Umbrella head hex screws 2PCS Handlebar 1PCS Handlebar post 1PCS Saddle 1PCS Flat washer... - Page 6 DESCRIPTION Q'TY Idle wheel 1PCS Spring 1PCS Idler clamping 1PCS Hex screw 1PCS Crank cover 2PCS Chain cover (R) 1PCS Belt 1PCS Pulley 1PCS Right tooth plug 1PCS Bead nest 2PCS Bottom bracket 2PCS Crank 1PCS Left tooth plug 1PCS Have tooth washer 1PCS Hex.
-
Page 7: Complete Bike Assembly
COMPLETE BIKE ASSEMBLY... - Page 8 EXERCISE METER Monitor Display KEY FUNCTION: MODE: This key lets you to select and lock on to a particular function you want. FUNCTIONS SCAN Automatically scan through each mode in sequence every 6 seconds. The display loop is SCAN-TIME-DISTANCE-CALORIE-SCAN on the main screen. TIME Accumulates total working time from 00:00 up to 99:59.
- Page 9 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.everfit.it - info@everfit.it...
