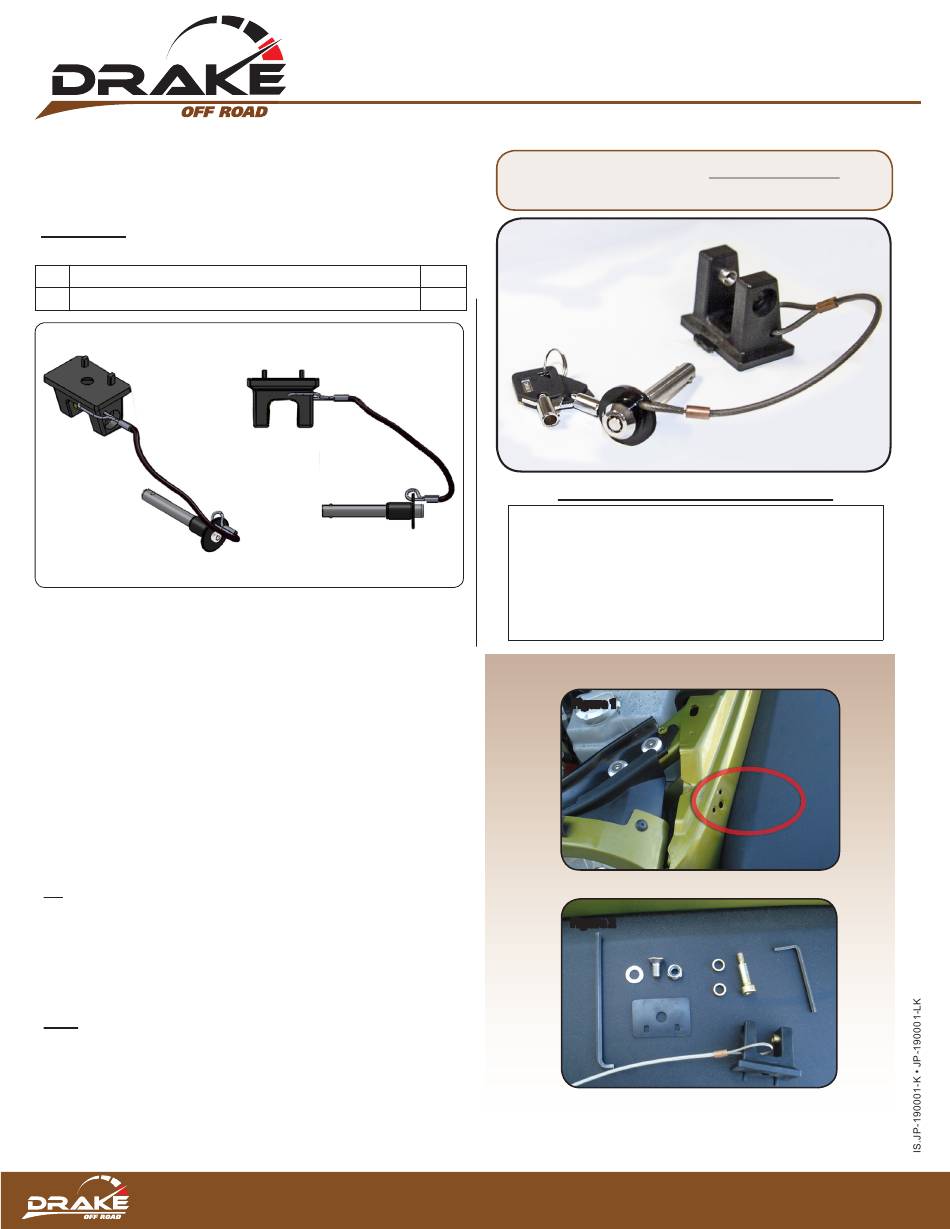

DRAKE JP-190001-LKCONV Installation Instructions

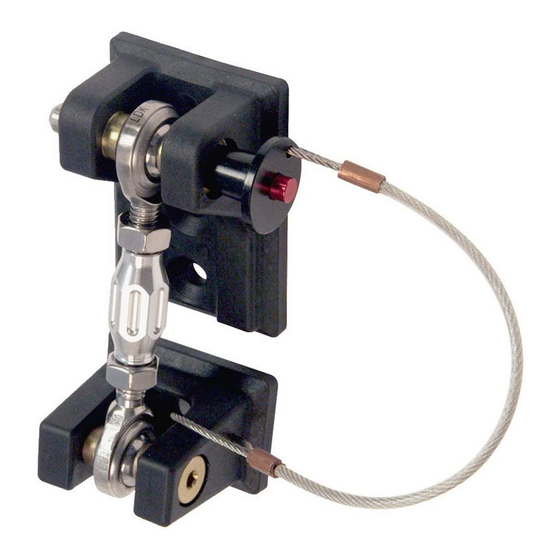

ASSEMBLY

1. ROUND KEY
2. LOWER SUB-ASSY W/LANYARD & LOCKING PIN
1. Installation of this product requires that the vehicle already
be fitted with P/N JP-190001-K Drake Off Road Hood Hold
Down System.
2. Grab the small rubber bumper previously installed on the
existing Drake Off Road Hood Hold Downlower bracket and
pull it sideways to remove it. Keep this to install the new
Locking Drake Off Road Hood Hold Down Conversion.
3. Unbolt the existing Drake Off Road lower hood hold down
bracket using a 13mm socket with extensions and ratchet.
(Figure 1)
Tip: On passenger side using a small ¼" ratchet should allow ac-
cess to remove and install nut.
4. Use 4mm allen wrench to remove turn buckle assembly
from Lower bracket on Drake Hood Hold Down. Remove
both sleeves and set aside. (Figure 5)
Note: Notice there is a left and a right bracket. The
bracket should be installed with the lanyard facing for-
wards on the vehicle and the tab for the rubber bumper
should face upwards.
2007-14 JEEP JK LOCKING HOOD PIN UGRADE
JP-190001-LKCONV - INSTALLATION INSTRUCTIONS
Note: For use with Drake Off Road hood hold down system
P/N JP-190001-K.
QTY
4
2

TOOLS NEEDED FOR INSTALLATION

• 5mm allen wrench
• 4mm allen wrench
• ¼" drive ratchet and socket set with 10mm and
13mm sockets
• 3" and 6" extensions for ¼" drive ratchet
• two 13mm open ended wrenches or small adjust-
able wrench.
Figure 1
Figure 2
Page 1 of 2
