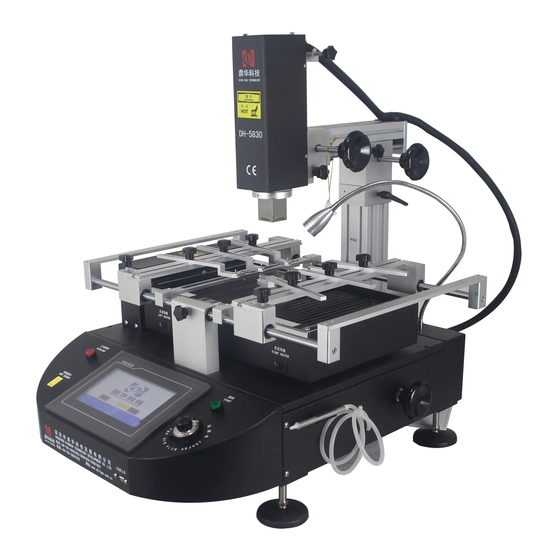

Dinghua DH-5830 Manual

Bga rework station
Hide thumbs

Advertisement

Quick Links

Download this manual
深 圳 市 鼎 华 科 技 发 展 有 限 公 司
SHENZHEN DINGHUA TECHNOLOGY DEVELOPMENT CO.,LTD
DH-5830 BGA Rework station Mannual
Add： 4
Floor,6B Building,Shengzuozhi Technology Park,Xinqia,
th
Shajing , Bao'an District, Shenzhen, Guangdong, China
Website：
www.sinobga.com
Tel： +86-755-29091822
Fax: +86-755-29091622
E-mail:dh-smt@hotmail.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DH-5830 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dinghua DH-5830

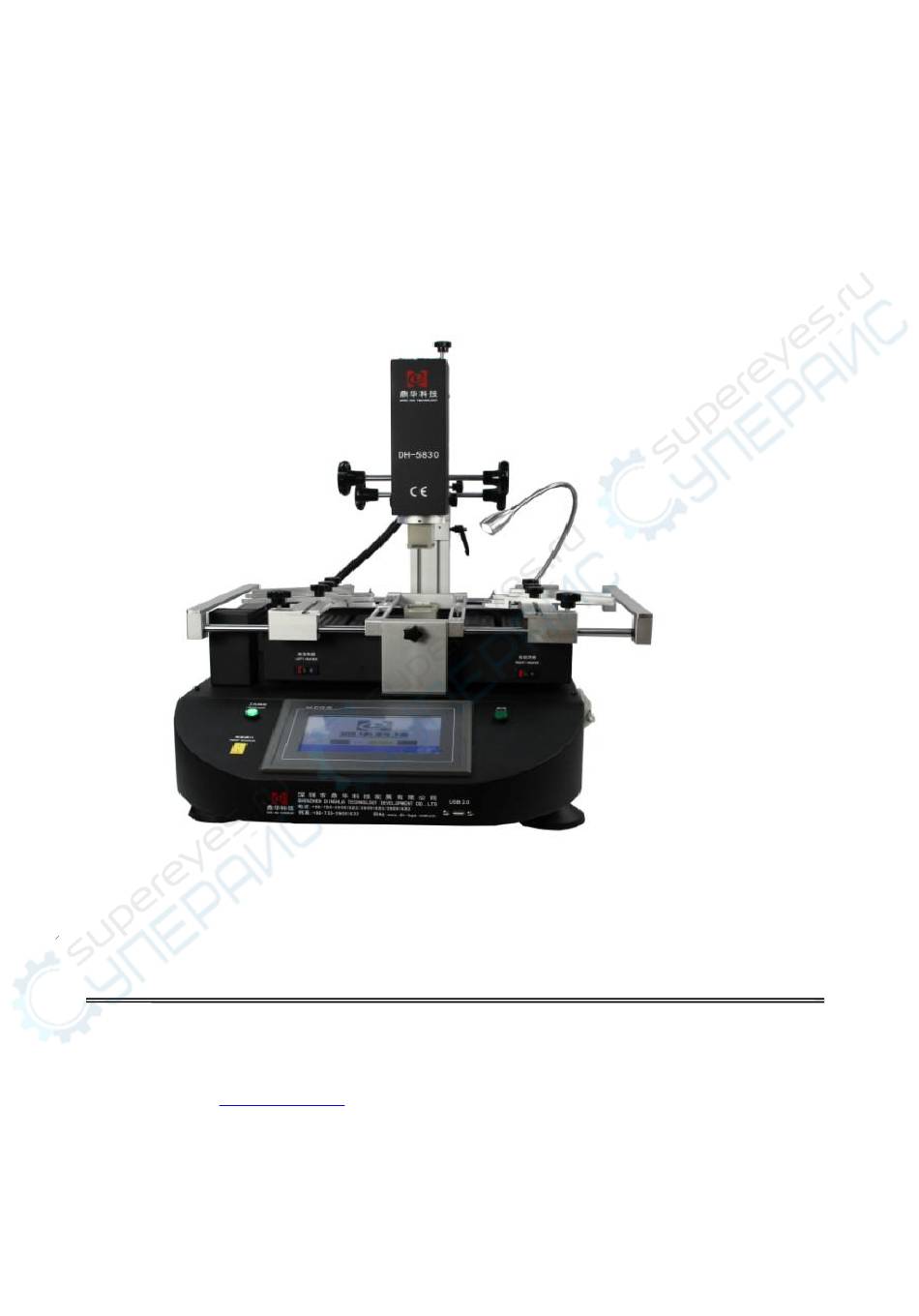

  • Page 1 深 圳 市 鼎 华 科 技 发 展 有 限 公 司 SHENZHEN DINGHUA TECHNOLOGY DEVELOPMENT CO.,LTD DH-5830 BGA Rework station Mannual Add： 4 Floor,6B Building,Shengzuozhi Technology Park,Xinqia, Shajing , Bao’an District, Shenzhen, Guangdong, China Website： www.sinobga.com Tel： +86-755-29091822 Fax: +86-755-29091622 E-mail:dh-smt@hotmail.com...
  • Page 2 Science and technology are the primary productive forces, with over years of hard working, Dinghua has owned core technology of temperature controlled, 38 patents and finished the development and production of manual, semi-auto and automatic series and realized the second revolution from traditional hardware combination to integrated control.
  • Page 3 Installation of BGA rework station 二 （ 一 ） Installation sites In order to ensure that the useful life of BGA rework station, installation of repair station must meet the following requirments: 1、Away from flammable and explosive materials 2、Do not splash water or other liquids 3、Well-ventilated, cool place 4、Stable , flat areas less susceptible to vibration 5、Place less dust...
  • Page 4 11、Before use the rework station, you must read this manual carefully 四 、Structures and specifications （一）Structures （二）Features Number Name Functions Use ways limit the lowest position of the Limit bar Rotate to the right place upper heating lock the upper zone of up and Tension adjustment knob Rotate the knob down ,before and after...
  • Page 5 lock the rotation angle of the 7 handle Rotating the handle upper zone Head light Lighting equipment at work Press the button Move the right position , PCB plywood clamping the PCB Bottom heater height Adjust the lower nozzle Rotating the handle adjustment handle distance from the PCB board Emergency stop button...
  • Page 6 Three temperature areas can independently heat and they are multiple temperature control, which can ensure best integration of different temperature areas. Heating temperature, time, slope, cooling and vacuum can all be set in the human-machine interface. There are 6-8 temperature controls up and down. Massive storage of temperature curves which are accessible at any time according to different BGA.
  • Page 7 7、Place the BGA chip Place the BGA chip on the PCB board with manual alignment and silk-screen borders, meanwhile the tension of the solder joint when melt will have a good self- alignment effect. 8、Welding First, put the PCB board which is pasted with BGA chip on the positioning stand, and then move the hot wind head to the working place.
  • Page 8 六、Procedure setting and usage Introduction of touch screen operation Open the control power, the BGA rework station can connect with electricity.The home page of touch screen will appear the interface like the following picture, and then you can choose the language interface as require When we choose English, it will appear the working interface like the following picture: 2、...
  • Page 9 、3.Input password, then click to enter...
  • Page 10 4.After logining password, you will get the following homepage 5.Introduction of the homepage 1)Start : Heating button 2)Heating finish: Show in the display frame of the heating condition after the heating is finished, Keep off Stop : Click this button the machine will stop heat Cooling : Switch button of the fan.
  • Page 11 15)Current curve : Click to get in the current curve frames, the following picture shows the working temperature parameters after starting heating. They are target temperature, constant temperature time,and the speed of heating ( the speed of heating with ℃/SEC calculation).
  • Page 12 curve does not meet to the needed welding temperature; please press the return button , returning to the main Interface. 16)Curve selection : Click you will get the following interface: In this interface, the temperature can be changed and saved. User can set the heating temperature, the constant time and the heat speed according to the requirements of the production process.
  • Page 13 If have to input new parameter, click the parameter you will get the following interface. Input the parameter you need, press“ENTER” key .When temperature parameters Settings of these three temperature zones are finished, click “save curve” , then all...
  • Page 14 parameters you have set are all saved. After finishing the temperature selection or temperature amendment, click , then click you will get the following interface: Click ‘Start’ ,the whole station starts to heating,and the working curve is showing the current parameter ， and it will also clear the previous curve showed on screen.The whole heating will complete until the upper setting temperature or the upper part of the heating rate is zero,and just the machine stops running,with the alarm ringing, if the cooling vacuum interface has been set up within the cooling and vacuum state, then these two output also work.if click...
  • Page 15 When Click the ‘Back’ , it wills pop-up function selection screen.it can choose the ‘English’ interface. NOTE: When it alarm because of stoppage, all founction buttons are locked! After manageing the stoppage and starting up, it can recover to normal! 七...
  • Page 16 38*38 BGA welding temperature setting Welding Welding Preheating Constant Heating Reduction Upper heating Constant time Bottom heating Constant time preheating Constant time Speed rate 31*31 BGA welding temperature setting Welding Welding Preheating Constant Heating Reduction Upper heating Constant time Bottom heating Constant time...
  • Page 17 Welding Welding Preheating Constant Heating Reduction Upper heating Constant time Bottom heating Constant time preheating Constant time Speed rate 38*38 BGA welding temperature setting Welding Welding Preheating Constant Heating Reduction Upper heating Constant time Bottom heating Constant time preheating Constant time Speed rate 31*31 BGA welding temperature setting...
  • Page 18 Welding Welding Preheating Constant Heating Reduction Upper heating Constant time Bottom heating Constant time preheating Constant time Speed rate Above is lead-free type BGA reference temperature When remove the BGA chip, the temperutre reduction is set at 0. Handling Precautions 八...

  • Page 19: Concluding Remarks

    properly before welding, otherwise it will be damage the BGA chip or PCB board. 6. The machine surface needs to be clean at regular time, especially the infrared heating board. Avoid the dirt stay on the board, because the dirt can lead to heat radiation unnormally, bad welding quality and shorten the using time of infrared heating element.

  • Page 20: Packing List

    Packing list: Item specification Unit BGA rework station DH-5830 Vacuum sucker Instruction manual DH-5830 COPY Hot-air nozzle Upper nozzle:31*31 、 38*38、 41*41 Bottom nozzle: 55*55、 34*34 Shaped clip Plum knob Supporting screw Temperature sensor...
