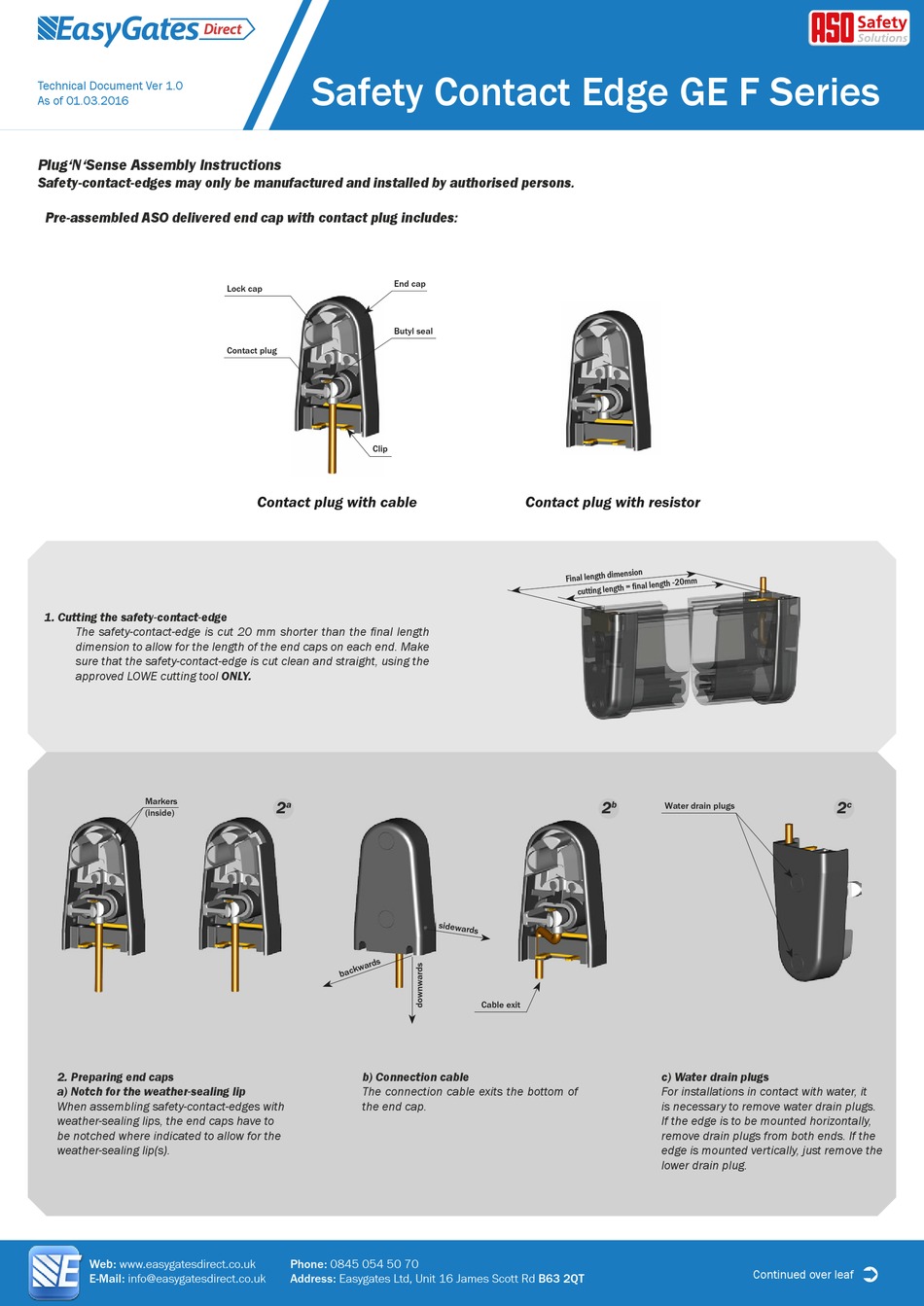

Plug'N'Sense Assembly Instructions
Safety-contact-edges may only be manufactured and installed by authorised persons.
Pre-assembled ASO delivered end cap with contact plug includes:
1. Cutting the safety-contact-edge
The safety-contact-edge is cut 20 mm shorter than the final length
dimension to allow for the length of the end caps on each end. Make
sure that the safety-contact-edge is cut clean and straight, using the
approved LOWE cutting tool ONLY.
Markers
(inside)
2. Preparing end caps
a) Notch for the weather-sealing lip
When assembling safety-contact-edges with
weather-sealing lips, the end caps have to
be notched where indicated to allow for the
weather-sealing lip(s).
Web: www.easygatesdirect.co.uk
E-Mail: info@easygatesdirect.co.uk
Safety Contact Edge GE F Series
End cap
Lock cap
Butyl seal
Contact plug
Clip
Contact plug with cable
2
a
b) Connection cable
The connection cable exits the bottom of
the end cap.
Phone: 0845 054 50 70
Address: Easygates Ltd, Unit 16 James Scott Rd B63 2QT
Contact plug with resistor
2
b
Cable exit
Water drain plugs
c) Water drain plugs
For installations in contact with water, it
is necessary to remove water drain plugs.
If the edge is to be mounted horizontally,
remove drain plugs from both ends. If the
edge is mounted vertically, just remove the
lower drain plug.
Continued over leaf
2
c
➲
