Summary of Contents for Digital Monitoring Products SecureCom Smart Z-5010T

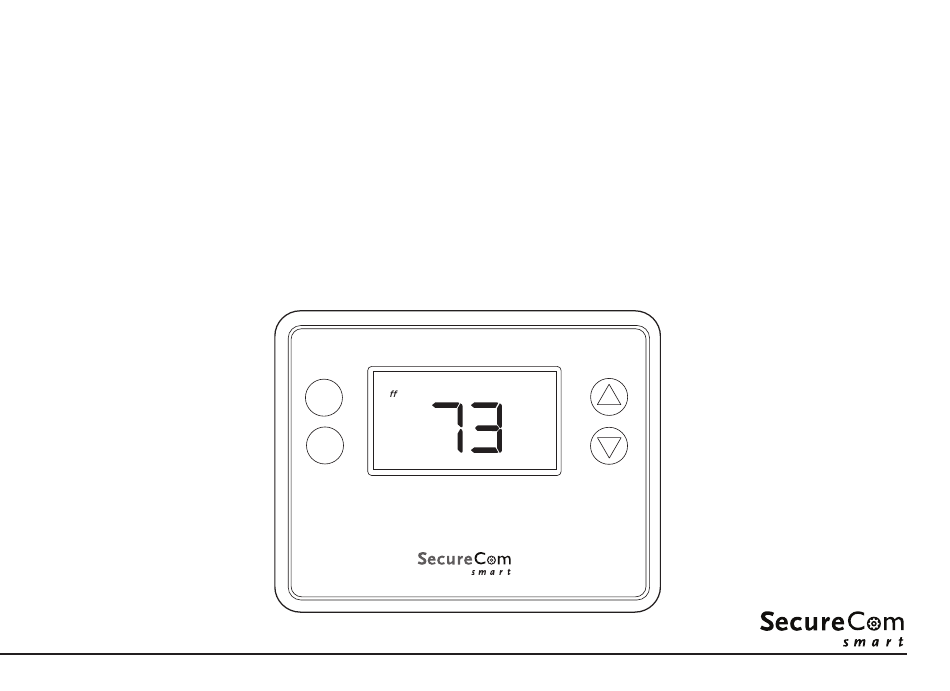

- Page 1 Z-5010T Z-Wave Thermostat INSTALLATION AND PROGRAMMING GUIDE MODE Auto...
-
Page 3: Table Of Contents
TABLE OF CONTENTS About the Thermostat ....... 1 2nd Stage Cool Enable ........19 Minimum Run Time (MRT) ......19 What is Included ..........2 Minimum Off Time (MOT) .......19 Power Options ............2 Heat Setpoint Max ..........19 Thermostat Features ........3 Cool Setpoint Min ..........19 Heat Blower Off Delay ........19 Install the Thermostat ........4 Cool Blower Off Delay ........20... - Page 4 End user training ........23 Backlight and Button Operation ....23 Display ..............24 Change the Setpoint ........26 Set Fan Mode ............26 Set the Clock ............27 Product Specifications ......28 Compatibility ........... 29 FCC Information ........30 Industry Canada Information ....31 Limited Warranty ........32...
-
Page 5: About The Thermostat
Multiple system modes • Fan mode control and display • Changeover function for heat pump systems • Simple on-screen setup • Temperature display in Fahrenheit or Celsius • Built-in sensor calibration capability Digital Monitoring Products, Inc. Z-5010T Installation and Programming Guide... -
Page 6: What Is Included
Z-Wave repeater. Do not install batteries and temporarily power the thermostat from 24 VAC to add it to a Z-Wave network or shortened battery life may occur when wired power is removed. Z-5010T Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 7: Thermostat Features
THERMOSTAT FEATURES Text Display Line Heating/Cooling Warmer Mode Selection MODE Auto Fan Mode Selection Cooler Backlit Display Room Temperature Figure 1: Thermostat Features Digital Monitoring Products, Inc. Z-5010T Installation and Programming Guide... -
Page 8: Install The Thermostat
Disconnect all wiring from the existing thermostat, then remove the its base from the wall. If the thermostat contains mercury, dispose of it according to U.S. Environmental Protection Agency or Environment Canada guidelines. Z-5010T Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 9: Mount And Connect The Thermostat
For more information, refer to Table 1 and the following sections. Thermostat Push tab to Bottom release base Body Base Cover Figure 3: Removing the Base Figure 4: Mounting the Base Digital Monitoring Products, Inc. Z-5010T Installation and Programming Guide... - Page 10 Second stage heating; auxiliary Varies Green O or B Changeover with cool (O) or heat (B) Orange or blue *Color alone is not a reliable indicator of wire purpose. Table 1: Thermostat Terminal Functions Z-5010T Installation and Programming Guide Digital Monitoring Products, Inc.
- Page 11 Connect the wires from the HVAC system to the corresponding terminals according to the top labels on the thermostat terminal block. Refer to Figure 5. STANDARD HEAT PUMP Figure 5: Single Transformer System Wiring Digital Monitoring Products, Inc. Z-5010T Installation and Programming Guide...
- Page 12 R wires (RC and RH), cut the internal RC/RH jumper on the back of the thermostat PCB. Refer to Figure 6 and Figure 7. STANDARD HEAT PUMP Figure 6: Dual Transformer System Wiring Z-5010T Installation and Programming Guide Digital Monitoring Products, Inc.
- Page 13 CUT JUMPER FOR DUAL TRANSFORMER SYSTEMS ONLY RC/RH Jumper Figure 7: Cutting the RC/RH Jumper for Dual Transformer Systems Digital Monitoring Products, Inc. Z-5010T Installation and Programming Guide...
- Page 14 Connect the wires from the HVAC system to the corresponding terminals according to the bottom labels on the thermostat terminal block. Refer to Figure 8. STANDARD HEAT PUMP Figure 8: Heat Pump System Wiring Z-5010T Installation and Programming Guide Digital Monitoring Products, Inc.
-
Page 15: Complete The Installation
Refer to Figure 10. Turn on power to the thermostat. Hook on Base Body and Cover top catch Snap onto botttom catches Figure 9: Base and Cover Installation Digital Monitoring Products, Inc. Z-5010T Installation and Programming Guide... - Page 16 Hook on Cover top catch Base and Body Attached to Wall Pry indents Snap onto in case bottom Body Battery bottom catches Compartment Figure 10: Battery Installation Z-5010T Installation and Programming Guide Digital Monitoring Products, Inc.
-
Page 17: Program The Thermostat
Auto To return to the Done to menu items. button until the main screen, press setup screen the key next displays. to DONE. Figure 12: Navigating the Menu Figure 11: Entering Menu Mode Digital Monitoring Products, Inc. Z-5010T Installation and Programming Guide... -
Page 18: Default Settings
Changing the Mode to OFF will cancel the MRT and the system will turn off immediately. For more information, refer to “Advanced Settings”. Z-5010T Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 19: Setup
CHANGEOVER Select whether changeover occurs with • cool (O) or with heat (B). Applies only to heat pump systems. If the opposite of the desired action occurs, choose the opposite changeover action. Digital Monitoring Products, Inc. Z-5010T Installation and Programming Guide... -
Page 20: Z-Wave
The panel keypad displays the type of device and the default device name. Press CMD. Press any top row select key on the panel keypad and enter custom name for the device, then press CMD. Z-5010T Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 21: Clock
HOME ID Displays the Z-Wave home ID. • • SYSTEM TYPE Displays the current system type. • FAN TYPE Displays the current fan type. • CHANGEOVER TYPE Displays the current changeover type. Digital Monitoring Products, Inc. Z-5010T Installation and Programming Guide... -
Page 22: Advanced Settings
N (default) Auxiliary heating disabled. • 2nd Stage Heat Enable 2ND STAGE HEAT Enables the second stage heating operation. ENABLE • Y 2nd stage heating enabled. N (default) 2nd stage heating disabled. • Z-5010T Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 23: 2Nd Stage Cool Enable
Set the minimum cooling setpoint value. Range is 60 °F to 95 °F (6 °C to 45 °C). Default is 60 °F (15 °C). Heat Blower Off Delay HEAT BLOWER OFF Set the system blower delay off time after a heat call ends (fan DELAY purge). Digital Monitoring Products, Inc. Z-5010T Installation and Programming Guide... -
Page 24: Cool Blower Off Delay
Stage one turns off at setpoint plus stage 1 delta. Range is 0 ° to 5 °. Default is 0 °. Heating Stage 2 On Threshold HEATING STAGE 2 Set the delta from the setpoint where stage two heating starts. ON THRESHOLD Range is 2 ° to 7 °. Default is 2 °. Z-5010T Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 25: Heating Stage 2 Off Threshold
Cooling Stage 1 Off Threshold COOLING STAGE 1 Set the delta from the setpoint where stage one cooling stops. OFF THRESHOLD Stage one turns off at setpoint minus stage 1 delta. Range is 0 ° to 6 °. Default is 0 °. Digital Monitoring Products, Inc. Z-5010T Installation and Programming Guide... -
Page 26: Cooling Stage 2 On Threshold
Set the delta from the setpoint where stage two cooling stops. OFF THRESHOLD Stage two turns off at setpoint minus stage 2 delta. Range is 0° to 7°. Default is 0 °. Restore Defaults RESTORE DEFAULTS Restore all settings to factory defaults. Z-5010T Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 27: End User Training
Text display line Heating/Cooling Set warmer mode selection MODE Fan mode selection Set cooler Auto Backlit display Current room temperature Battery compartment for 4 AA Alkaline Batteries Figure 13: Button Operation Digital Monitoring Products, Inc. Z-5010T Installation and Programming Guide... -
Page 28: Display
Blinking: System is on and heating. Minimum Run Time (MRT) delay is active. Cool Icon • Solid: System is on and cooling. • Blinking: System is on and cooling. Minimum Run Time (MRT) delay is active. Z-5010T Installation and Programming Guide Digital Monitoring Products, Inc. - Page 29 Caution: Emergency heat should only be used for emergencies until the HVAC system can be repaired. Running the system in Emergency Heat mode is the most expensive because electric heat strips are used instead of the more efficient heat pump compressor. Digital Monitoring Products, Inc. Z-5010T Installation and Programming Guide...
-
Page 30: Change The Setpoint
Auto: Fan automatically operated by the HVAC system (normal setting). • On: Manual Fan mode. The fan remains on independent of the heating or cooling system operation until the mode is changed back to Auto. Z-5010T Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 31: Set The Clock
DAY is displayed. Set the day with the buttons, then press the button next to SELECT. • Press buttons. TIME is displayed. Set the time with the buttons, then press the button next to • SELECT. Press the button next to DONE. • Digital Monitoring Products, Inc. Z-5010T Installation and Programming Guide... -
Page 32: Product Specifications
Messaging Capability 7 character alphanumeric display with message scroll Regulator United States: FCC Compliant to CFR47, Part 15B Canada: Industry Canada RSS 210, Issue 8 Certifications FCC Part 15: WIBTZW011 Industry Canada: 9374A-TBZ48 Z-5010T Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 33: Compatibility
Three stage heating with two stage cooling Gas Millivolt Systems (24 VAC) • All DMP panels with built-in Z-Wave capability • • All DMP panels with 738Zplus Z-Wave Module • Virtual Keypad app and VirtualKeypad.com Digital Monitoring Products, Inc. Z-5010T Installation and Programming Guide... -
Page 34: Fcc Information
Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Z-5010T Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 35: Industry Canada Information
L’exploitation est autorisée aux deux conditions suivantes: l’appareil ne doit pas produire de brouillage, et l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Digital Monitoring Products, Inc. Z-5010T Installation and Programming Guide... -
Page 36: Limited Warranty
There are no obligations or liabilities on the part of Digital Monitoring Products, Inc. for consequential damages arising out of or in connection with use or performance of this product or other indirect damages with respect to loss of property, revenue, or profit or cost of removal, installation, or reinstallation. - Page 40 LT-1423 20175 © 2020 Digital Monitoring Products, Inc.
