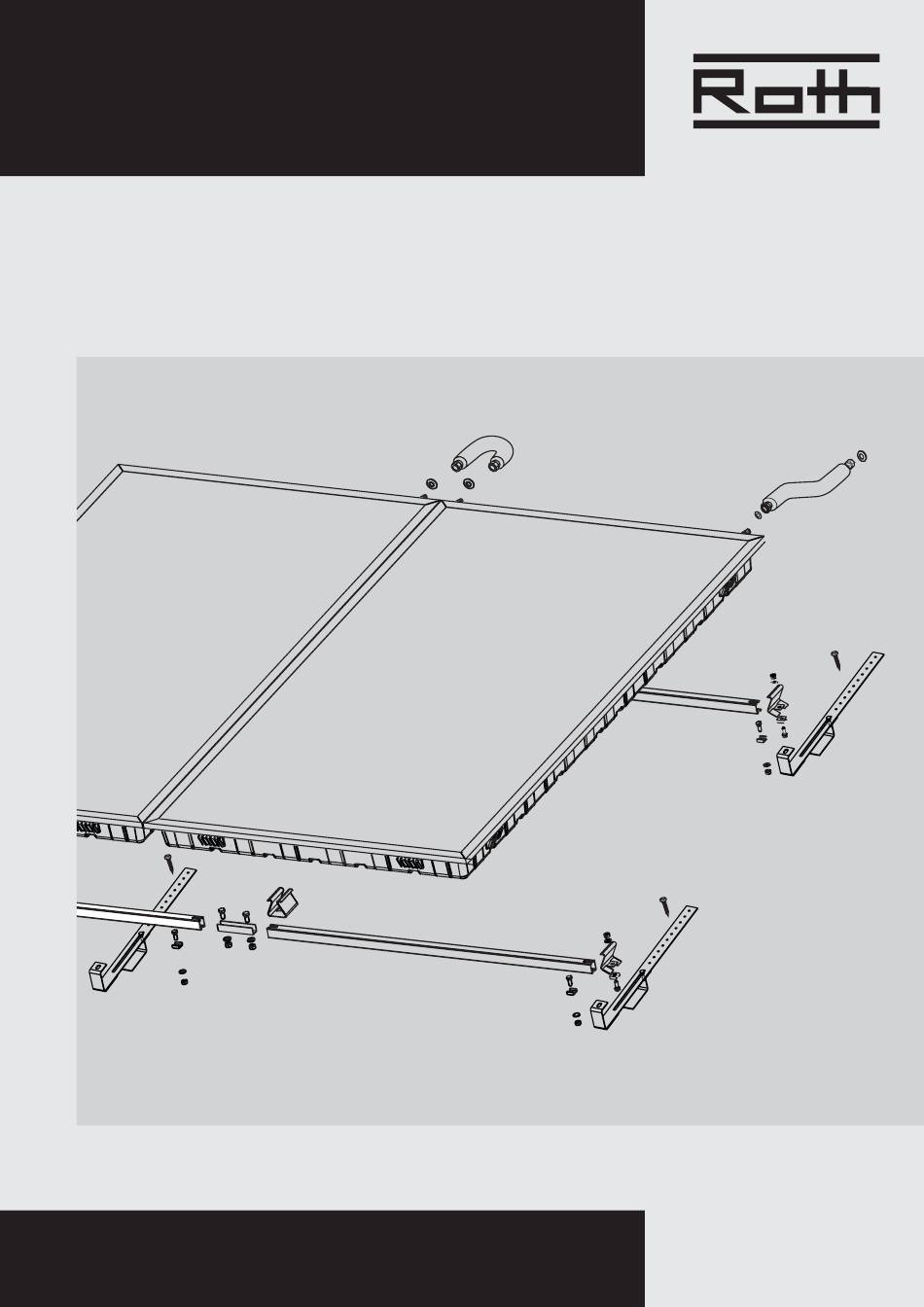

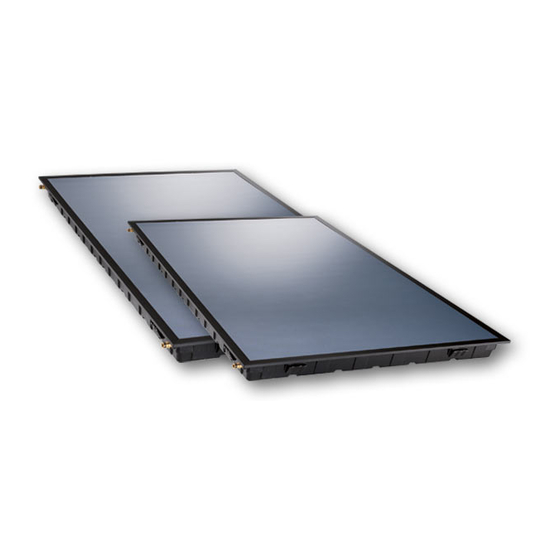

- Page 1 ON-ROOF ATTACHMENT FLAT COLLECTOR HELIOSTAR ® INSTALLATION INSTRUCTIONS ENERGY AND SANITARY SYSTEMS...
-
Page 2: Installation Requirements
The on-roof attachment set is capable for Please note: You may need additional mater- Generel requirements installation of Roth flat collectors Heliostar® ial such as ventilation roofing tiles for the roof on roofs with a slope greater than 22°. One... - Page 3 System varieties Collector surface area: 2,18 m (small version) Vertical installation 0,8 m 0,8 m 1-1,2 m 0,8 m 1-1,2 m 1-1,2 m 1,20 m 2,40 m 3,60 m 0,8 m 1-1,2 m 1-1,2 m 1-1,2 m 0,8 m 1-1,2 m 1-1,2 m 1-1,2 m 1-1,2 m...
- Page 4 System varieties Collector surface area: 2,52 m (large version) Vertical installation 0,8 m 0,8 m 1-1,2 m 0,8 m 1-1,2 m 1-1,2 m 1,20 m 2,40 m 3,60 m 0,8 m 1-1,2 m 1-1,2 m 1-1,2 m 0,8 m 1-1,2 m 1-1,2 m 1-1,2 m 1-1,2 m...
- Page 5 Overview of material Vertical installation System components Basic set on-roof installation for vertical alignment flat collector Heliostar® Material Basic set for Extension set for each 2 collectors (quantity) additional collector (quantity) Installation rail made of aluminium, length 1205 mm Profile rail connection set (2 connection profiles, 4 hexagonal screws M 12 x 20...
- Page 6 Overview of material Horizontal installation System components Basic set on-roof installation for vertical alignment flat collector Heliostar® Material Basic set for Extension set for 2 collectors (quantity) each additional collector (quantity) Installation rail made of aluminium, length 1205 mm Installation rail made of aluminium, length 1205 mm...
-
Page 7: Installation Instructions
Installation instructions Roof positioning 1. Definition of position of the collector field and corresponding attachment anchor universal vertical horizontal profile rail For vertical installation: Measure a: 1,36 m* (small version) 1,64 m* (large version) collector Measure b: depends on the size of the rafter distance and the quantity of attach- ment anchor universal For horizontal installation:... - Page 8 Installation instructions 1. Fix attachment anchor universal with Steps of installation 3 screws 6 x 80 to roof lath. Attachment anchor universal must be positioned in the deep part of the tile. Important: The attachment anchor universal may not impose pressure upon the roof tiles.
- Page 9 Installation instructions Secure profile rails and connector with Steps of installation screw M 12 x 20. 7./8./9. Only applies for horizontal installa- tion: For better resistance install a securing (detail B, page 6) above the 2 lowest attachment anchors universal. 10./11.
- Page 10 Installation instructions 12. Define parallelism with a consistent Steps of installation measure A. Check the diagonal profile Profile rail 1 rails with a string and adjust differences in length if necessary. If measure C = B, the profile rails are correctly adjusted and can be tightened.
- Page 11 Installation instructions 18. Secure correct position of the flat sealing Steps of installation when installing the corrugated hose plaids. 19. When tightening the screw connections make sure to push against the collector. Non-compliance can damage the collector. 20. Prepare ventilation block (cut fence) and if necessary separate available sarking membrane and fix in raised position, respectively use sealing member (special...
- Page 12 Exit must be topped by a minimum of 1 m. ROTH WERKE GMBH Am Seerain 2 · 35232 Dautphetal Telefon 0 64 66/9 22-0 · Telefax 0 64 66/9 22-1 00 Hotline 0 64 66/9 22-2 66 E-Mail: service@roth-werke.de · www.roth-werke.de...
