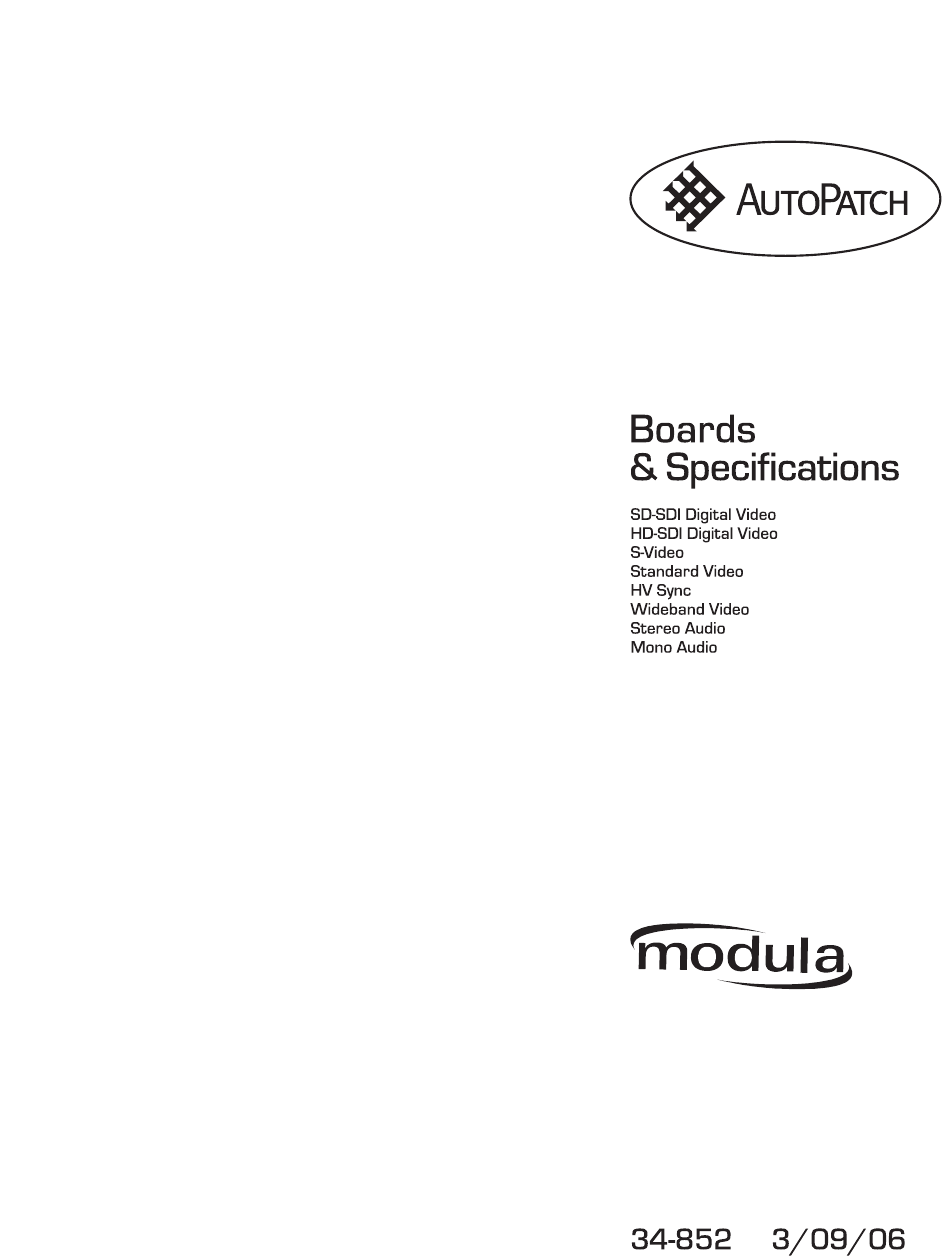

Summary of Contents for AutoPatch Modula 34-40

  • Page 2 See the Installation & Setup section of this binder for board installation information. If you have questions, contact your AutoPatch Dealer or Technical Support.
  • Page 3 Modula SDI Digital Video Enclosures Modula Boards Your custom built SDI Digital Video enclosure(s) contains one or more of the board types listed below. The chart below shows which boards can be added to which enclosures. Enclosure Enclosure Enclosure Enclosure 34-40 34-27 34-30...
  • Page 4 SD-SDI Digital Video Applicability Notice This chapter pertains to the following SD-SDI digital video boards available in enclosure models 34-40, 34-27, 34-30, and 34-33: 34-410 Input board 34-413 Output board Figure 1: SD-SDI digital video boards Modula SDI Digital Video enclosures are built to hold up to sixteen SD-SDI digital video boards with four BNC connectors each.
  • Page 5: Attaching Cables

    1.1 Attaching Cables When attaching SD-SDI digital video input and output cables, refer to the sheet labeled “AutoPatch Modula Connector Guide” found inside the back cover of this binder. The sheet shows where to attach each cable on the rear of each enclosure.
  • Page 6: Product Specifications

    Alignment Jitter <0.1 UI @ 360 Mbps Rise and Fall Time 600 ps, +/-100 ps Rise and Fall Overshoot <0.1% Reclocking Connector Type AutoPatch reserves the right to modify its products and their specifications without notice. Modula Boards & Specifications...
  • Page 7: Hd-Sdi Digital Video

    HD-SDI Digital Video Applicability Notice This chapter pertains to the following HD-SDI digital video boards available in enclosure models 34-40, 34-27, 34-30, and 34-33: 34-533 Input board 34-536 Output board Figure 4: HD-SDI digital video boards Modula SDI Digital Video enclosures are built to hold up to sixteen HD-SDI digital video boards with four BNC connectors each.
  • Page 8 2.1 Attaching Cables When attaching HD-SDI digital video input and output cables, refer to the sheet labeled “AutoPatch Modula Connector Guide” found inside the back cover of this binder. The sheet shows where to attach each cable on the rear of each enclosure.
  • Page 9 Alignment Jitter <0.1 UI @ 1.485 Gbps Rise and Fall Time 600 ps, +/-100 ps Rise and Fall Overshoot <0.1% Reclocking Connector Type AutoPatch reserves the right to modify its products and their specifications without notice. Modula Boards & Specifications...
  • Page 10 S-Video Applicability Notice This chapter pertains to the following S-Video boards available in enclosure model 34-33: 34-505 Input board 34-508 Output board Figure 7: S-Video boards (shown with SD-SDI digital video boards) Modula SDI Digital Video enclosures are built to hold up to sixteen boards. Although primarily used for SD-SDI and HD-SDI digital video boards, enclosure 34-33 can also hold S-Video boards (each with four S-Video connectors).
  • Page 11 3.1 Attaching Cables When attaching S-Video input and output cables, refer to the sheet labeled “AutoPatch Modula Connector Guide” found inside the back cover of this binder. The sheet shows where to attach each cable on the rear of each enclosure.
  • Page 12 S-Video Configuration Files 3.2 S-Video Configuration Files Connect (the configuration software program on the AutoPatch Software CD shipped with the Modula) supports Modula systems with S-Video connectors. Important: Use this software only if you need to change the configuration information from the original specification.
  • Page 13 Connector Type S-Video / Locking S-Video Output Parameter Conditions Value Level +/- 2 V Impedance 75 ohms Connector Type S-Video / Locking S-Video AutoPatch reserves the right to modify its products and their specifications without notice. Modula Boards & Specifications...
  • Page 14: Standard Video

    Standard Video Applicability Notice This chapter pertains to the following standard video and HV sync boards available in enclosure models 34-27, 34-30, and 34-33: 34-454 Standard video input board (for enclosures 34-30 & 34-33) 34-448 Standard video input board (for enclosure 34-27) 34-499 HV sync input board 34-457...
  • Page 15 4.1 Attaching Cables When attaching standard video input and output cables, refer to the sheet labeled “AutoPatch Modula Connector Guide” found inside the back cover of this binder. The sheet shows where to attach each cable on the rear of each enclosure.
  • Page 16 Product Specifications 4.2 Product Specifications Standard Video Boards Modula SDI Digital Video Enclosures 34-30, 34-33 Applies to input board 34-454; output board 34-457. Throughput Parameter Conditions Value +/-1 dB to 20 MHz Frequency Response 1 to All +/-3 dB to 50 MHz Differential Gain* f = 3.58 MHz, 10 to 90% APL <0.2% or better...
  • Page 17 Standard Video Standard Video Boards Modula SDI Digital Video Enclosure 34-27 Applies to input board 34-448; output board 34-451. Throughput Parameter Conditions Value +/-1 dB to 20 MHz Frequency Response 1 to All +/-3 dB to 50 MHz Differential Gain* f = 3.58 MHz, 10 to 90% APL <0.25% or better Differential Phase*...
  • Page 18 Conditions Value Level 0 to +5 V Connector Type Output Parameter Conditions Value Level Follows input polarity 0 to +5 V Connector Type AutoPatch reserves the right to modify its products and their specifications without notice. Modula Boards & Specifications...
  • Page 19 Wideband Video Applicability Notice This chapter pertains to the following wideband video boards available in enclosure model 34-27: 34-442 Input board 34-445 Output board Figure 13: Wideband video boards Modula SDI Digital Video enclosures are built to hold up to sixteen boards. Although primarily used for SD-SDI and HD-SDI digital video boards, enclosure 34-27 can also hold wideband video boards (each with four BNC connectors).
  • Page 20 5.1 Attaching Cables When attaching wideband video input and output cables, refer to the sheet labeled “AutoPatch Modula Connector Guide” found inside the back cover of this binder. The sheet shows where to attach each cable on the rear of each enclosure.
  • Page 21 Value Level +/-2 V Return Loss f = 5 MHz -45 dB Connector Type Output Parameter Conditions Value Level +/-2 V Connector Type AutoPatch reserves the right to modify its products and their specifications without notice. Modula Boards & Specifications...
  • Page 22: Stereo Audio

    Stereo Audio Applicability Notice This chapter pertains to the following stereo audio boards available in enclosure model 34-33: 34-511 Input board 34-514 Output board Figure 15: Stereo audio boards (shown with SD-SDI digital video boards) Modula SDI Digital Video enclosures are built to hold up to sixteen boards. Although primarily used for SD-SDI and HD-SDI digital video boards, enclosure 34-33 can also hold stereo audio boards (each with four stereo pair connectors).
  • Page 23: Attaching Wires

    6.1 Attaching Wires When attaching stereo audio input and output wires, refer to the sheet labeled “AutoPatch Modula Connector Guide” found inside the back cover of this binder. The sheet shows where to attach the wires on the rear of each enclosure.
  • Page 24 Stereo output boards in a Modula SDI Digital Video enclosures come with potentiometer gain control which can be adjusted at any time during normal operation. A small AutoPatch screwdriver for adjusting gain is included with every Modula Distribution Matrix. Stereo output boards are set to unity gain at the factory.
  • Page 25 Input gain adjustment is also used for equalizing amplitudes between balanced and unbalanced inputs. Stereo audio input boards are set to unity gain at the factory. A small AutoPatch screwdriver for adjusting gain is included with every Modula Distribution Matrix.
  • Page 26 Output Parameter Conditions Value Impedance 50 ohms Gain Adjustment Range Potentiometer adjustment -9 dB to +9 dB Connector Type Pluggable 5-position terminal block AutoPatch reserves the right to modify its products and their specifications without notice. Modula Boards & Specifications...
  • Page 27: Mono Audio

    Mono Audio Applicability Notice This chapter pertains to the following mono audio boards available in enclosures models 34-30 and 34-33: 34-475 Input board 34-472 Output board Figure 19: Mono audio boards (shown with SD-SDI digital video boards) Modula SDI Digital Video enclosures are built to hold up to sixteen boards. Although primarily used for SD-SDI and HD-SDI digital video boards, enclosures 34-30 and 34-33 can also hold mono audio boards (each with one connector that has four mono audio connections).
  • Page 28 7.1 Attaching Wires When attaching mono audio input and output wires, refer to the sheet labeled “AutoPatch Modula Connector Guide” found inside the back cover of this binder. The sheet shows where to attach the wires on the rear of each enclosure.
  • Page 29 Adjustments can be made at any time during normal operation. Mono audio input boards are set to unity gain at the factory. A small AutoPatch screwdriver for adjusting gain is included with every Modula Distribution Matrix. Caution: Only a qualified dealer should adjust input gain.
  • Page 30 Mono Audio To use potentiometer input gain to equalize input levels: 1. Route the first source (input) to a destination (output). 2. Adjust the input gain for the source to the desired dB level by turning the corresponding potentiometer (see Figure 22) clockwise to decrease gain, counterclockwise to increase gain.
  • Page 31 Impedance 50 ohms Gain Adjustment Range Potentiometer adjustment -10 dB to +6 dB Type Balanced or unbalanced Connector Type Pluggable 3-position terminal block AutoPatch reserves the right to modify its products and their specifications without notice. Modula Boards & Specifications...
