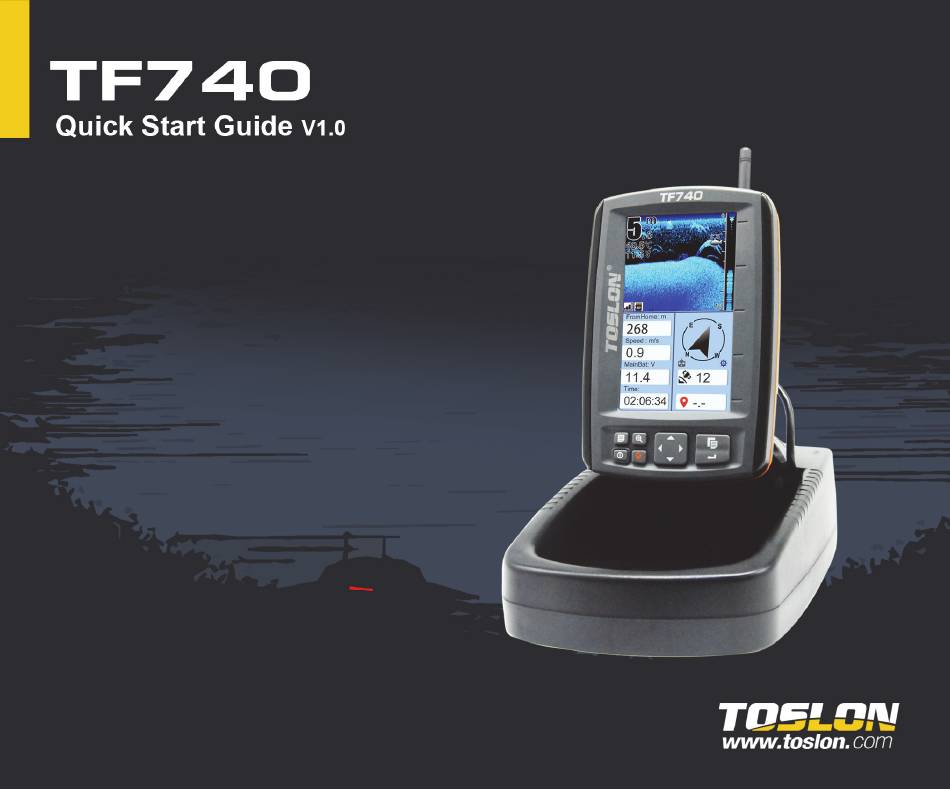

Summary of Contents for Toslon TFL40
-
Page 2: Key Function
Key function ZOUT/ZIN KEYPAD MENU PAGE POWER PUSH-GO ENTER MENU Open Menu settings( Basic, Sonar Setting and GPS Setting). ZOUT /ZIN Used to zoom out GPS route on the screen. PUSH-GO Used to quickly enter into waypoint or go home by one-button pusing. PAGE Used to switch between main menus or some sub menus. -
Page 3: What's On The Display
What’s on the display Surface Depth clutter readout Water temp Fish symbol Voltage of bait boat SD Card in Structure Depth range Strength of at bottom Radio signal Distance to Home Indicator of Boat heading Speed direction of boat Autopilot mode Voltage of Number of satellite display... - Page 4 Quickly Operation Quickly enter into 【Waypoint】 Quickly enter into 【GPS operation】 Note: pushing the key for 3s will start autopilot: back to home.
- Page 5 Overlap Data Overlap Data On the bottom half area of the display, you can use to determin which option will be displayed: Time of day, Heading, Speed, tc. How to set the Overlap Data? 1) Press Key to enter into 【QUICK OPERATION】, then choose【Overlap Data】 2) Use keypad to choose an option which you hope to change, then press key to enter into the option menu.
-
Page 6: Start Using
Start Using Set HOME posi on 1) Press key to enter into 【QUICK OPERATION】 Use keypad to choose 【Set Home Pos.】 Press to confirm. Note: A er the device is powered on, it will set the current loca on as default HOME Posi on. Save a waypoint When the boat arrive at a positon on water, you can choose to save it as a waypoint：... - Page 7 Go to target waypoint 1) Press key to enter into 【QUICK OPERATION】 Use keypad to choose 【Waypoint】then press to enter into waypoint list. to select 【Go to target】 Choose one target waypoint then press...
- Page 8 Import KML You can import KML file( from Google map) to TF740. And run the boat with autopilot to a posi on on the map simply by moving the cursor. 1) Press key to enter 2) Import a kml file from 3) Move the cursor to a into the micro SD card.
- Page 9 Note: when you choose a loca on, please guarantee there is no land obstacle betweem it and the boat. land obstacle 4) Press key to confirm 5) When you choose 【Go】 the loca on. Then choose the autopilot will start. to save or go.
- Page 10 Go back Go-Back can guide the boat running to the first target, and a er delaying some me, then automa cally run to the second target 1) Press key to enter 2) Select the Target 1 and Target 2 3) The boat arrived the first into from Waypoint list and Home target.
- Page 11 Connection of AutopIlot CCU740 The following figures instruct how to connect the Autopilot CCU740 with your bait boat. The system could control most 2 engineers or 1 engine (with rudder) boat with proper settings. Port B is connected to Socket to Port A is connected to Speed Reciver of the remote Sonar Box-740w...
- Page 12 Connection of Parts...
