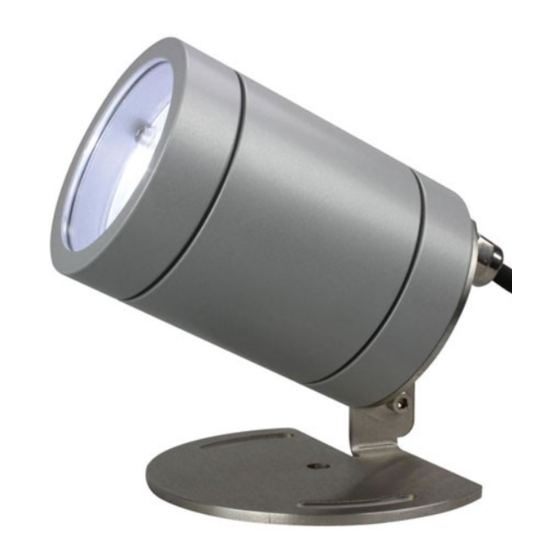

STUDIODUE 1605 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User manual for art.1605
Manuale d'uso per art.1605

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1605 and is the answer not in the manual?

Questions and answers

Related Manuals for STUDIODUE 1605

Summary of Contents for STUDIODUE 1605

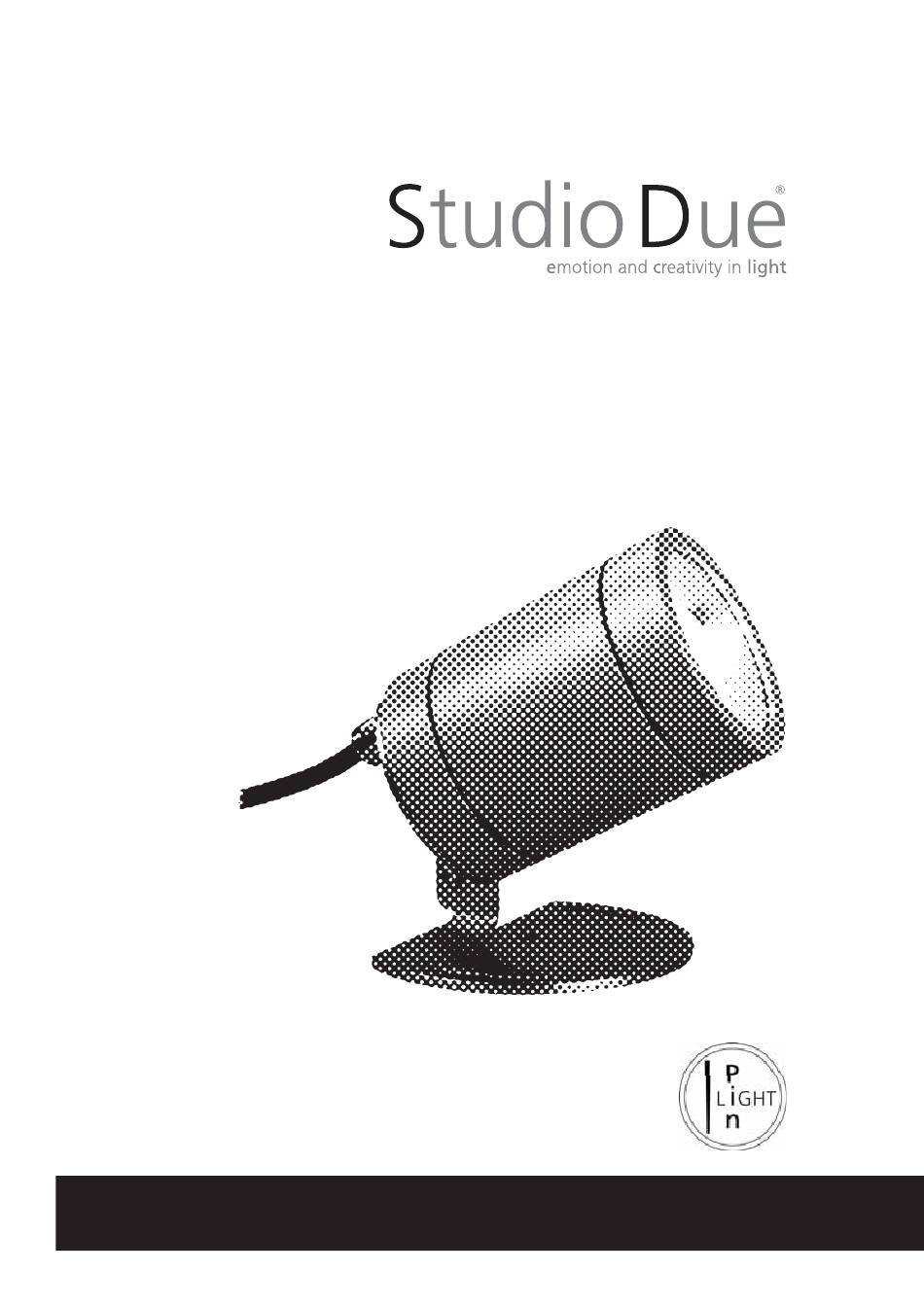

  • Page 1 User manual for art.1605 Manuale d’uso per art.1605...
  • Page 2 Rel. 02/2019...
  • Page 3 INDEX / INDICE Page 3 - Physical / Misure Page 5 - Safety informations / Informazioni di sicurezza Page 6 - Introduction / Introduzione Page 7 - Technical features / Caratteristiche tecniche Page 8 - Control Drive Page 11 - Connections / Connessioni Page 13 - Example of connection DMX controller-driver / Esempio di collegamento centralina DMX-driver Page 14 - Warranty / Garanzia Page 15 - CE standards / Certificazioni CE...
  • Page 4 4 PIN connector - Connettore 4 PIN 4 PIN connectors 4 or 4 or FEMALE MALE WARNING SIGNAL IMPORTANTE GROUND/RETURN/OV N.C. DATA COMPLEMENT ( -, INVERTED) DATA TRUE ( +, NON INVERTED) In questo connettore potete trovare il NUMBER 4 or the GROUND sign. NUMERO 4 o il simbolo della TERRA.
  • Page 5 WARNING SAFETY INFORMATION (service personnel) READ ALL CAUTIONS AND WARNINGS PRIOR TO OPERATE THIS EQUIPMENT. INSTRUCTION TO PREVENT INJURY OR DAMAGE DUE TO ELECTRIC SHOCK, FIRE, MECHANICAL HAZARDS, DANGEROUS MATTERS. •PROTECTION AGAINST DANGEROUS MATTERS At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiate waste collection centre or to a dealer providing this service.
  • Page 6 Is available with 1 monochromatic LED (warm white, neutral white, cool white, red, green, blue or amber). PIN LIGHT • Art. 1605: PIN LIGHT (monochromatic) To make the most of its possibilites and for a correct functioning of this unit in the years to come, we suggest you to read carefully this manual before connecting or putting the spot into use.
  • Page 7 TECHNICAL FEATURES / CARATTERISTICHE TECNICHE warm neutral cool • SOURCE: n.1 (5W) LED • OPTIC: 1,5° ultra narrow beam • ELECTRIC FEATURES: (this fixture has to work with dedicated power supply) • DMX CHANNELS: - n. 1 ch (dimmable version) - none (plug-in version) •...
  • Page 8 EXAMPLE OF DRS CONNECTION with OPTIONAL CONTROL DRIVE art. PL PILOT DRS Control drive to control up to n.12 PIN LIGHT on 4CH. 4 outputs x3 IP rate 67. art. PL PILOT DRS 4 outputs x 3 CONTROL DRIVE IN OPTIONAL IP67 CONNECTION BOX CONNECTION...
  • Page 9 EXAMPLE OF DRS CONNECTION with OPTIONAL CONTROL DRIVE art. PL PILOT DRS Control drive to control up to n.4 PIN LIGHT on 4CH. 4 outputs x1 IP rate 67. art. PL PILOT DRS 4 outputs x 1 CONTROL DRIVE IN OPTIONAL IP67 CONNECTION BOX CONNECTION...
  • Page 10 EXAMPLE OF PLUG-IN CONNECTION with OPTIONAL CONTROL DRIVE art. PL PILOT PLUG-IN Power Supply to drive up to n.12 PIN LIGHT. 1 output x12 IP rate 67. art. PL PILOT PLUG-IN cable 1,5 mt / 1 output x 12 cavo 1,5 mt POWER SUPPLY INTO IP67 CONNECTION BOX Pin Light n.1...
  • Page 11 CONNECTIONS / CONNESSIONi This equipment must be earthed. Class I equipment. The power supply cord includes a protective earthing conductor as part of the cord. IMPORTANT: to ensure the IP67 protection rating, in case of replacement of the conductor cable, refer to the CONDUCTOR SIZE TABLE Questo apparecchio necessita di messa a terra.
  • Page 12 DMX CONNECTION / CONNESSIONE DMX DMX TERMINAL LINE The wrong connection of the terminal line or its non-connection are probably the most frequent reasons for the defective functioning of the DMX line. The terminator is a terminal resistor fitted at the end of the cable furthest from the transmitter. The terminal resistor should have the same value as the impedance of the connection cable.
  • Page 13 EXAMPLE OF CONNECTION DMX CONTROLLER - FIXURES DRIVER/ ESEMPIO DI COLLEGAMENTO CENTRALINA - DRIVER APPARECCHI Example 1/ Esempio 1 DMX out Last spot/ PIN LIGHT PIN LIGHT Ultimo spot driver PIN LIGHT driver PIN LIGHT driver driver Termination resistor/ Terminale di linea Example 2 / Esempio 2 DMX 1 out DMX 2 out...

  • Page 14: Warranty Card

    WARRANTY / GARANZIA Warranty CARD Company name: ..........................Mr./Mrs./Miss: ..........................Address: ............................Tel. or E-mail : ..........................Dealer: ..................... SALE CONDITIONS 1) Price quoted are not inclusive of lamp and package. Package charge is 2% on the net price for all the items. These prices should be subject to possible variations for eventual rises of production costs or duties.
  • Page 15 StudioDue light Doc. 1605 REV 2 - 05/16 s.r.l. PINLIGHT (Monochormatic) 05/2016 Dichiarazione di conformità Declaration of conformity La ditta: STUDIO DUE light s.r.l. The firm: Strada Poggino, 100 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto:...
  • Page 16 Head Office: STUDIO DUE s.r.l. (I) Str. Poggino, 100 - 01100 Viterbo (Italy) tel. +39.0761.352520 fax +39.0761.352653 info@studiodue.com STUDIO DUE (UK) 3 Encon Court Owl Close Moulton Park Industrial Estate Northampton England UK - NN3 6 HZ tel. +44.1933.650.820 info@studiodue.co.uk www.studiodue.com...
