Summary of Contents for Econo Lift TR20

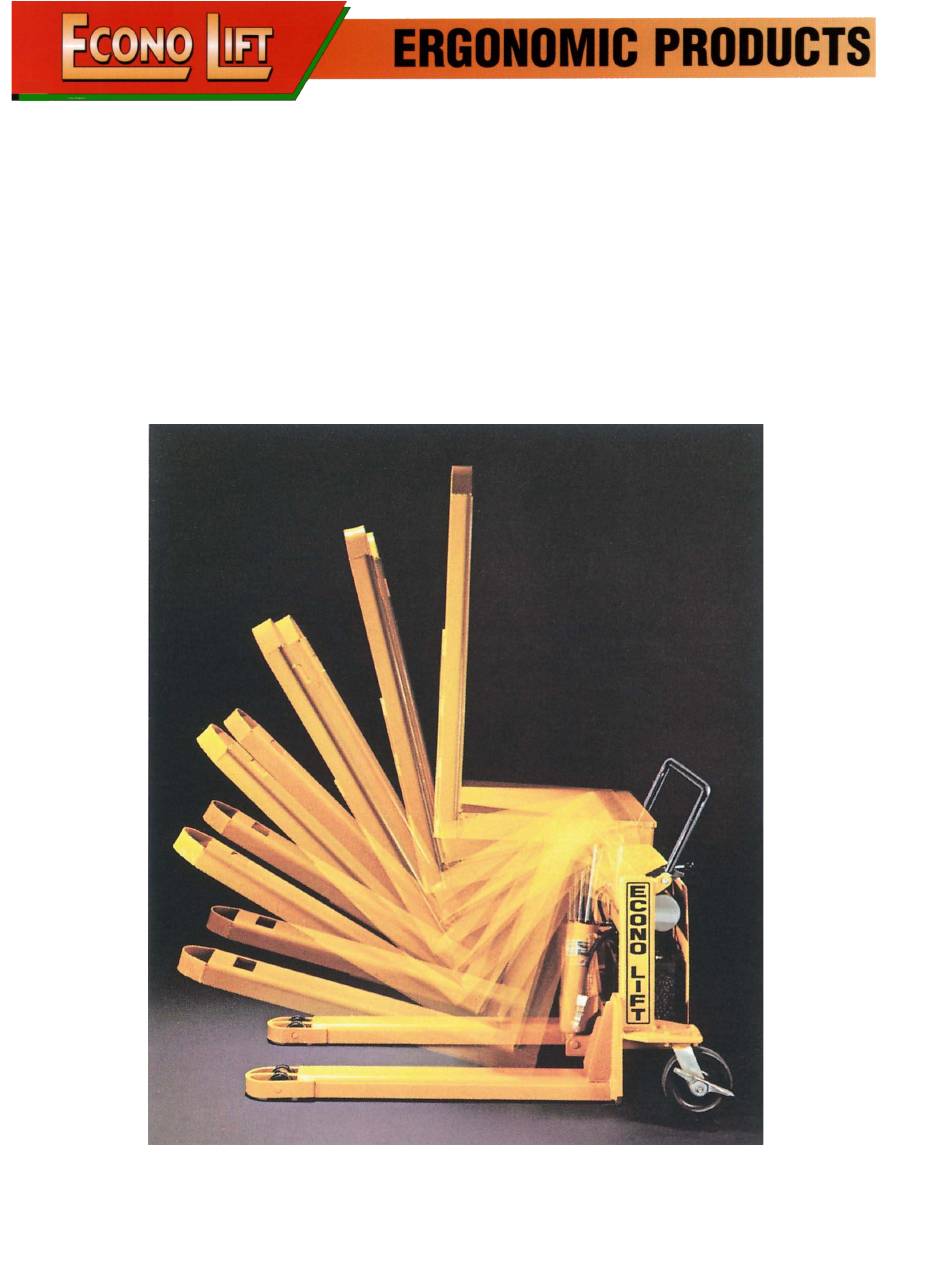

- Page 1 OPERATION AND SERVICE MANUAL FOR ECONO LIFT TILTERS - 1 -...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..........2 SAFETY ............2 INSTALLATION ...........2 INSPECTION ...........3 INSTALLING ...........3 TESTING THE LIFT WITH NO LOAD ........4 OPERATION ............3 METHOD OF OPERATION ..........3 OPERATING PROCEDURES .........4 MAINTENANCE ...........4 ROUTINE INSPECTION AND MAINTENANCE ......5 YEARLY MAINTENANCE........TROUBLE SHOOTING MAINTENANCE ....... 5 CHARGING .............6 - 2 -... -
Page 3: Introduction
Please refer to these numbers when ordering parts or requesting information. SAFETY ECONO LIFT TILTERS are very powerful lifts capable of doing large amounts of work. Do not install or operate this TILTER without carefully reading this manual. -
Page 4: Installing
pack. Check all fasteners for tightness Check for oil leaks B. Installing On DC – joystick operated TILTERS; the joystick is removed for shipping and taped to the black push handle. Remove the joystick (Metal shaft with black ball) from the Handle and insert it into the lower tapped hole through the slot in the battery cover. -
Page 5: Operation
OPERATION A. Method of operation ECONO LIFT standard DC TILTERS have joystick controls (Remote push button control is optional). Pushing it to the “UP” position starts the motor, which in turn drives the hydraulic gear pump. Hydraulic fluid pumped from... -
Page 6: Maintenance
Do not operate the TILTER until it has been checked and repaired. MAINTENANCE Generally the ECONO LIFT TILTER will require little maintenance. However routine maintenance and inspection will minimise costly repairs and hazardous conditions. A. Routine Inspection And Maintenance Routine inspection should be performed on a weekly basis. -
Page 7: Yearly Maintenance
5) Bearings on all lifts are permanently lubricated and do not require servicing. B. Yearly Maintenance Oil in reservoir should be changed at least once a year, or sooner if the oil becomes dark or gritty. Use “DEXRON III” Automatic Transmission Fluid, or equivalent C. -
Page 8: Charging
Adjust flow control (if equipped) which is located where the hydraulic hose is connected to the power pack. Clockwise for making it go down slower, counter clockwise for speeding it up. D. Charging Your TILTER is equipped with a deep cycle battery, which has to be charged properly, and with great caution. - Page 9 c) The polarity is correct d) Battery has between 3 & 4 volts output. A voltage reading less than this normally indicates a defective battery and attempting to charge it, can be dangerous. - 9 -...
- Page 10 Parts List for TR20 – Tote Box Tilter Power Item Quantity Part# Description 2101 BODY ASS’Y TR20 2102 FORK ASS’Y TR20 2103 HINGED HANDLE TR20 0104 PIVOT PIN 1” 0150 CYLINDER PIN TOP 0106 CYLINDER PIN BOTTOM 2107 AXLE FOR FRONT ROLLER...
- Page 11 2501 BATTERY FOR TR20 0504 BATTERY CABLE ASS’Y 0505 CHARGER CABLE ASS’Y 0507 SB 50 CONNECTOR 0512 PB FOR A/C PUMP 0514 DISCHARGE INDCATOR (OPTIONAL) 0601 SELF LUBE BRASS BUSHING 2606 6” PHENOLIC WHEEL 2607 6” CASTER C/W BRAKE 0610 3”...
- Page 12 - 12 -...
- Page 13 - 13 -...
- Page 14 - 14 -...
- Page 15 - 15 -...
- Page 16 - 16 -...
