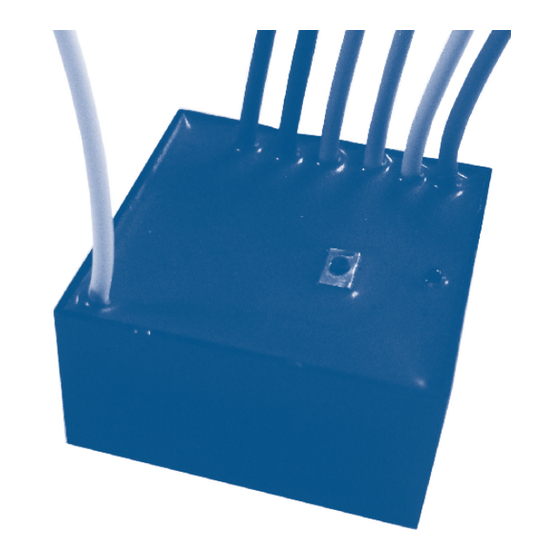

A510036
RX MINI
CENTRALINA PER TENDE DA SOLE
I
E AVVOLGIBILI CON RICEVITORE RADIO
RADIO RECEIVER FOR
GB
ROLLING SHUTTERS AND AWNINGS
FUNKEMPFÄNGER FÜR
D
ROLLLÄDEN UND MARKISEN
RÉCEPTEUR RADIO POUR
F
VOLETS ROULANTS ET STORES
CUADRO DE MANIOBRAS PARA PERSIANAS Y
E
TOLDOS CON RECEPTOR RADIO INCORPORADO
ISTRUZIONI - INSTRUCTIONS - EINSTELLANLEITUNGEN
INSTRUCTIONS - INSTRUCCIONES
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for CHERUBINI RX Mini
- Page 1 A510036 RX MINI CENTRALINA PER TENDE DA SOLE E AVVOLGIBILI CON RICEVITORE RADIO RADIO RECEIVER FOR ROLLING SHUTTERS AND AWNINGS FUNKEMPFÄNGER FÜR ROLLLÄDEN UND MARKISEN RÉCEPTEUR RADIO POUR VOLETS ROULANTS ET STORES CUADRO DE MANIOBRAS PARA PERSIANAS Y TOLDOS CON RECEPTOR RADIO INCORPORADO...
-
Page 3: Table Of Contents
Table of contents: Safety instructions ....................p. 21 Electrical connections Mini RX Ref. A510036 ............p. 21 Key to symbols ....................... p. 22 Technical features ....................p. 22 Command sequences example ................p. 23 Function open/close programming remote control ..........p. 24-25 Setting the first remote control (Skipper or Giro Series) ......... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS • Only professional technicians must perform installation, complying with all safety instructions, especially those regarding electrical connections. • To avoid short circuits, arrange an automatic bipolar switch with opening distance of the contacts of at least 3 mm before the circuit. •... -
Page 5: Key To Symbols
KEY TO SYMBOLS A530058 Remote Control Skipper GIRO with 4 independent channels stop down GIRO DOWN Press button A Button or Press buttons A and B STOP at the same time commutator, wired down Disconnect the Power up Press button SET power supply Awning short motor... -
Page 6: Command Sequences Example
COMMAND SEQUENCES EXAMPLE Most of the command sequences have three distinct steps, at the end of which the motor indicates if the step has been concluded positively or not, by turning in different ways. This section is provided to demonstrate the motor indications. The buttons must be pressed as shown in the sequence, without taking more than 4 seconds between one step and the next. - Page 7 FUNCTION OPEN/CLOSE PROGRAMMING REMOTE CONTROL SKIPPER PLUS - SKIPPER LUX - SKIPPER P-LUX To prevent accidental changes to the programming of the motor during the daily use of the remote control, the possibility of programming is disabled automatically 8 hours after sending the last sequence (A+B or B+C).
-
Page 8: Function Open/Close Programming Remote Control
FUNCTION OPEN/CLOSE PROGRAMMING REMOTE CONTROL SKIPPER - SERIES GIRO To prevent accidental changes to the programming of the motor during the daily use of the remote control, the possibility of programming is disabled automatically 8 hours after sending the last sequence (A+B or B+C). CHECKING THE STATUS OF THE FUNCTION Open programming... -
Page 9: Setting The First Remote Control (Skipper Or Giro Series)
SETTING THE FIRST REMOTE CONTROL (Skipper or Giro Series) This operation can only be performed when the control unit is new, or after a total delete of the memory. During this step, power up only one control unit at time! T1: First remote control to be set T1 (2 sec) AUTOMATIC DISABLING OF THE FIRST... -
Page 10: Setting Of Additional Remote Controls (Skipper Or Giro Series)
SETTING OF ADDITIONAL REMOTE CONTROLS (Skipper or Giro Series) Up to 15 remote controls can be set, including the light/wind sensor. Tn: Already programmed remote control Tx: Additional remote control Tx (2 sec) SETTING THE A530058 REMOTE CONTROL WITH 4 INDEPENDENT CHANNELS The A530058 remote control must be set from another Skipper or Giro Series remote control that has already been programmed. -
Page 11: Remote Control Memory Clearing
REMOTE CONTROL MEMORY CLEARING It is possible to delete singly all the memorized remote controls. When the last one is deleted the control unit initial condition is restored. The same applies to the single channels of a multichannel remote control: just select the channel to cancel. Tn: Remote control to be cleared Tn (2 sec) FULL MEMORY CLEARING... -
Page 12: Activation By Remote Control
ACTIVATION BY REMOTE CONTROL Skipper Series remote control - Button A controls Up; - Button B interrupts the command; - Button C controls Down. STOP DOWN Giro Series remote control - Turning to wards UP control the ascent; - Button STOP interrupts the command; - Turning to wards DOWN control the DOWN descent. -
Page 13: Optional Wired Switch
OPTIONAL WIRED SWITCH In addition to the remote control, it is possible to control motor start and stop with a commutator or a button, connected to the optional wired switch (white wire). The control unit may be programmed to operate with commutators and buttons in “dead man mode”... - Page 14 If a commutator is connected, the control unit is automatically set for use of the up/down controls. If you then replace the switch with a button, to return to the step-by-step mode run the following sequence. 2 sec Wired control with up/down commutator Connect the commutator common to the optional wired switch (white wire) input and one of the two commutation terminals to the Phase and the other one to the Neutral of the power supply.
-
Page 15: Operation With Sun/Wind Sensor
Wired control with button In this setup it is not possible to use the DM mode. Set the control unit to the latching mode (MC) and connect the button between Phase and the input of the optional wired switch (white wire). Each time the button is pressed the control unit works in step-by-step mode: up-stop- down-stop. -
Page 16: Compatible Devices
COMPATIBLE DEVICES MISTRAL SENSOR It detects movements caused by the wind on the awning arms. SET BUTTON MISTRAL- Ref. A520012 SELECTOR SETTING THE SENSOR To associate the sensor to the control unit, a remote control must be already memorized. Set the selector to the 0 position and then perform this sequence: 2 sec DELETING THE SENSOR To delete the sensor from the control unit, an already programmed remote control must... -
Page 17: Rugiada
RUGIADA (TX RAIN-SENSOR) Sensor element Set button Rugiada - Ref. A520016 Power Supply 230 Vac ANEMOMETERS Set button WINDTEC LUX - Ref. A520008 WINDTEC - Ref. A520007 Wind-speed tuning Sun-sensor tuning SETTING To associate the sensor to the control unit, a remote control must be already memorised. The setting sequence is the following: 2 sec DELETING... -
Page 18: Enable/Disable The Sun Sensor
ENABLE / DISABLE THE SUN SENSOR (WindTec Lux) To enable (automatically) or disable (manually) the sun sensor refer to the instruction manual provided with the sensor or the remote control you want to use. TEST MODE FOR WINDTEC/WINDTEC LUX This function is useful to check the correct communication via radio, and perform the wind and sun function test. -
Page 19: Special Functions: Short-Term Setting Of A Remote Control
T1: First remote control to be set EU DECLARATION OF CONFORMITY CHERUBINI S.p.A. declares that the product is in conformity with the relevant Union harmonisation legislation: Directive 2014/53/EU, Directive 2011/65/EU. The full text of the EU declaration of conformity is available upon request at the... - Page 20 CHERUBINI S.p.A. Via Adige 55 25081 Bedizzole (BS) - Italy Tel. +39 030 6872.039 | Fax +39 030 6872.040 info@cherubini.it | www.cherubini.it CHERUBINI Iberia S.L. Avda. Unión Europea 11-H Apdo. 283 - P. I. El Castillo 03630 Sax Alicante - Spain Tel.
