Basic Operation, Daily Maintenance and Disinfection Guidelines

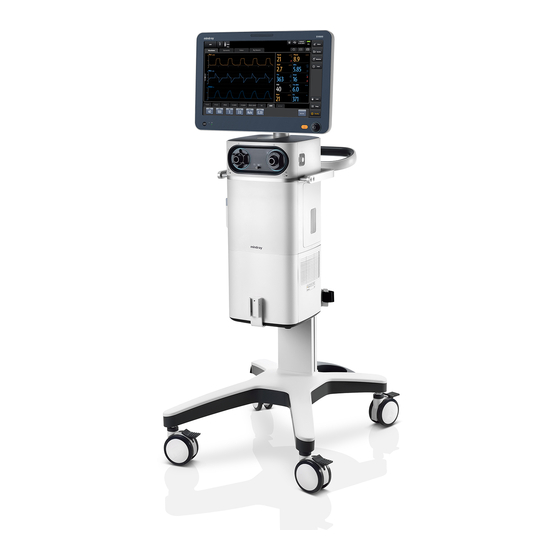

The guidelines apply to SV600/SV650/SV800/SV850 ventilator.
This product is intended to be used in intensive care situations within a professional
healthcare facility, or during transport within a professional healthcare facility. This
product is intended to provide ventilation assistance and breathing support for adult,
pediatric and neonate patients. This product shall be operated by authorized medical
personnel well trained in the use of this product. This product is not suitable for use in an
MRI environment.
There are no absolute contraindications for this product. For some special diseases,
however, some necessary treatments shall be taken for ventilator mechanical ventilation,
or special ventilation modes shall be adopted to prevent possible patient injury.
This guideline briefs the ventilator, its basic operation, daily maintenance, cleaning and
disinfection. For more information,please refer to the Operator's Manual.

Introduction to Ventilator:

Front View

A. Display
B. Inspiration valve
C. Expiration valve
D. Connectors (USB connector, VGA connector, Internet connector and RS-232 connector etc.)
E. Trolley handrail
F. AC power input connector
A
B
C

Back View

-Page 1 of 4-
D
E
F
