523
Series
Installation and
Operator Manual
500508 Rev. A
ComCo Systems Inc. | 800.533.3794
www.comcosystems.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 523 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Comco 523 Series

  • Page 1 Series Installation and Operator Manual 500508 Rev. A ComCo Systems Inc. | 800.533.3794 www.comcosystems.com...
  • Page 2 This publication contains materials protected by copyright. No part of this publication may be reproduced in any form or used as the basis for the sale or manufacture of apparatus without prior written consent by ComCo Systems. ©2008 ComCo Systems INC All rights reserved Some of the materials and applications described in this publication may be protected under one or more of the following US patents: DES272076, 4180354, 4971481, 4984939, 5584613, 6039510, or other Patents Pending.

  • Page 3: Table Of Contents

    Carriers pg. 27 Operations Specification Parts List Installation & Maintenance pg. 29 System Setup and Installation Field Wiring Diagram Help Desk Information pg. 37 Return Materials Authorization Procedure Contact Information ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...

  • Page 4: System Features

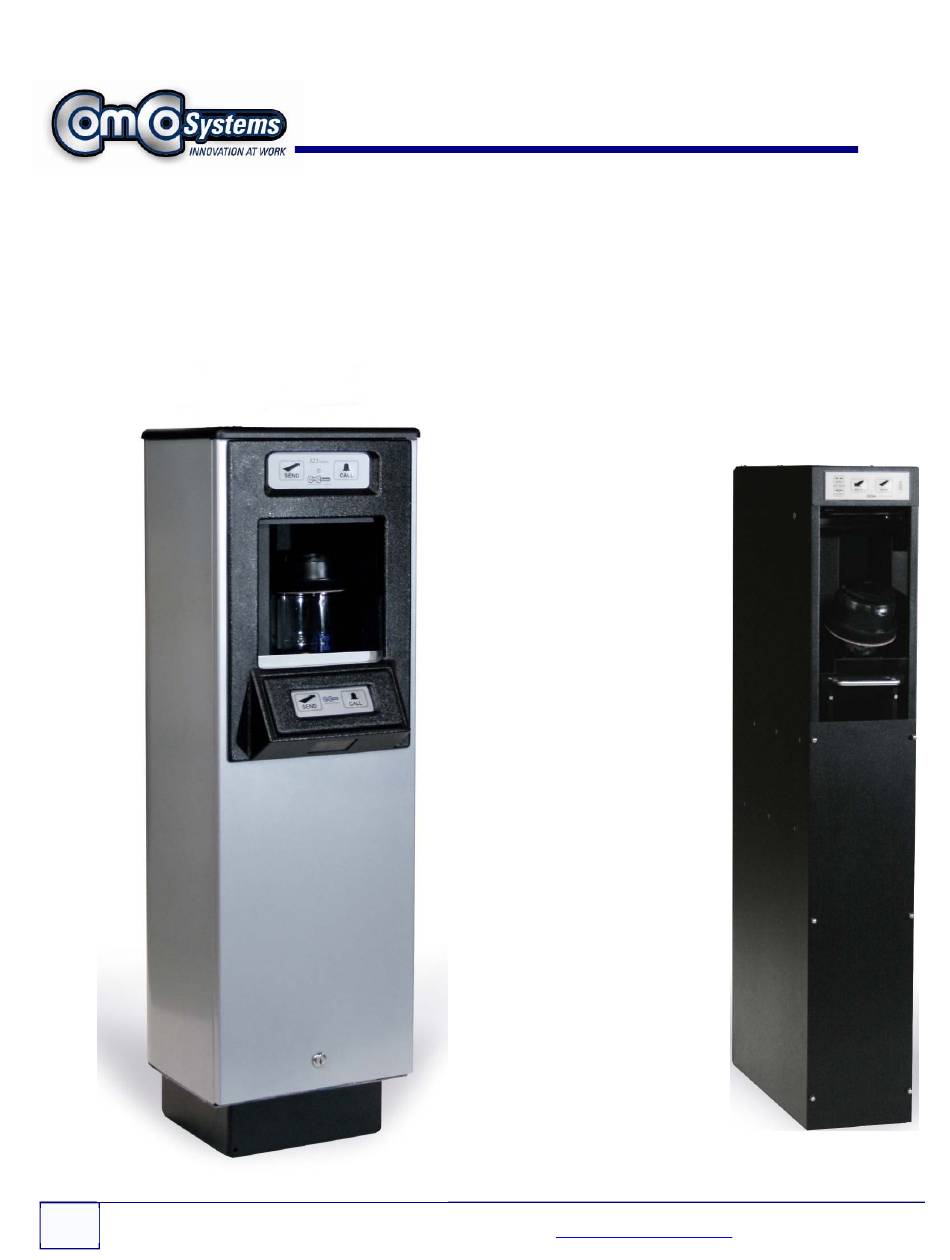

    2. 523 Customer Unit (CU) P/N: 201009 Manual operated door unit which is stationed on the ground, typically under a counter top. Customer Unit (CU) CU-523-201009 Fully automatic door operation with optional 2 way video unit. ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 5 Series Teller Unit TU-523-201010 Model: ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...

  • Page 6: Operation

    Please note the reference guide in Fig. 1.0. 1. System Power On/Off Switch 2. Control Panel Customer Manual Door Open/Close Retrieve Carrier from Customer Send Carrier to Customer System Power Indicator LED Fig. 1.0 ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...

  • Page 7: Operations

    RECALL Recalls a carrier from the customer unit. The teller unit door can either be open or closed to recall a carrier from the customer unit. ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...

  • Page 8: Specification

    Specification Series 523 Teller Unit (P/N: 201010) Dimensional & Electrical Specifications Item Measurements Value Teller Unit Nominal Voltage 24 VDC (TU-523-201010) Current (max) 2 amps ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 9 Parts Series 523 Teller Unit Carrier Arrival (P/N: 200986) Parts Breakaway: ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 10 Parts Series 523 Teller Unit Carrier Arrival (P/N: 200986) Parts Descriptions: Item Description ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 11 Parts Series 523 Teller Unit Receiver Box Assembly (P/N: 200987) Parts Breakaway: ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 12 Parts Series 523 Teller Unit Receiver Box Assembly (P/N: 200987) Parts Descriptions: ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 13 Series Customer Unit CU-523-201009 Model: ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...

  • Page 14: 523 Customer Unit

    Sends carrier to Teller Unit. (NOTE: DO NOT INSERT LOOSE ITEMS DIRECTLY INTO UNIT) CALL Generates audible tune at the Teller Center when pressed. Switch Panel (P/N: 200379) Instruction Panel (P/N: 200xxx) ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...

  • Page 15: Specification

    Door Motor Module Nominal Voltage 120 VAC, 60Hz (DM-523-200971) Current (max) 2 amps Audio Microphone & Speaker; See Audio Section for Specifications Door Motor Module DM-523-200971 See Appendix A For System Settings ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 16 Specification Series 523 Customer Unit (P/N: 201009) Dimensional & Electrical Specifications ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 17 Series 523 Customer Unit (P/N: 201009) 523 Base Assembly Mounting Instructions ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 18 Orange Brown Black Wire Colors Serviceable FUSE Location Rating: 2A 250VAC Fuse UL Listed Only Note: You must remove the back cover for access to the power plug and fuse ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 19 Fasten Mounting Bracket to Island. Using minimum ¼” hardware position leading edge of bracket “X” in. from edge of island and shim level if needed. (“X” Distance see cut sheets for job site) ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 20 Series ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 21 Parts Series Customer Unit (P/N: 200962) Parts Breakaway: ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 22 Parts Series Customer Unit (P/N: 200962) Parts Descriptions: Item Description ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 23 Series Blank Page ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 24 Series CU BLOWER PACK ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 25 NEC (National Electrical Code) by authorized/qualified personnel. SHOCK HAZARD Disconnect AC Power before Servicing Unit *AC Service Disconnect for Unit is located at the Main Junction Breaker Box* 2-115 VAC 10A Resettable Fuse ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 26 Parts Series Single Pack Blower Module (P/N: 200972) Parts Breakaway: ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 27 Parts Series Single Pack Blower Module (P/N: 200972) Parts Descriptions: ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 28 The contents of the carrier must be fully within the carrier and not caught between edges. Multiple transmissions should be used if a load is too large to fit within the single carrier. ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com...
  • Page 29 Series Blank Page ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 30 6. Carrier is propelled from Teller Unit into transmission tubing towards Customer Unit 7. Carrier arrives at Customer Unit 8. Vacuum blower deactivates 9. Customer Unit door opens 10. Send cycle ends; System is now in ready state ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 31 7. Carrier is pushed from Customer Unit into transmission tubing towards Teller Unit 8. Carrier arrives at Teller Unit and the door opens and ends the cycle. 9. Recall cycle ends – system is now in ready state ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 32 NOTE: All Class 2 interconnecting cabling must be done in compliance with the ARTICLE 800.33 (A) FPN No.2, exception No.2, of the NEC (National Electrical Code) by an authorized/qualified personnel. ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 33 Installation Series Control/Audio Field Wiring Diagram ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 34 Installation Series System Riser Diagram & Options ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 35 Installation Series Trench Section Details ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...

  • Page 36: Blower

    Carriers should be inspected regularly for signs of wear. Carriers landing hard at either customer or teller unit may be a sign of worn wear bands on carrier. Wear bands should be replaced regularly – usually every 3-6 months, depending on usage. ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 37 Appendix A Series P1 NORMALLY SET TO PINS 1&2 ComCo Systems Inc. | 800.533.3794 | www.comcosystems.com 500508 Rev. A...
  • Page 38 Lake Dallas, TX. 75065 RMA# XXXX All RMAs will be processed in the order they are received. ComCo Systems will not accept any returns that do not have an RMA# assigned. To check on the status of an RMA call our Customer Service Representatives with your RMA#.
  • Page 39 • Parts Orders parts@comcosystems.com 800.533.3794 Option 2 • Equipment and System Sales sales@comcosystems.com 800.533.3794 Option 3 • Project Management 800.533.3794 Option 4 • Accounting accounting@comcosystems.com 800.533.3794 Option 5 https://www.facebook.com/ComcoSystems https://twitter.com/comcosystems ComCo Systems Inc. | 800.533.3794 www.comcosystems.com 500508 Rev. A...
