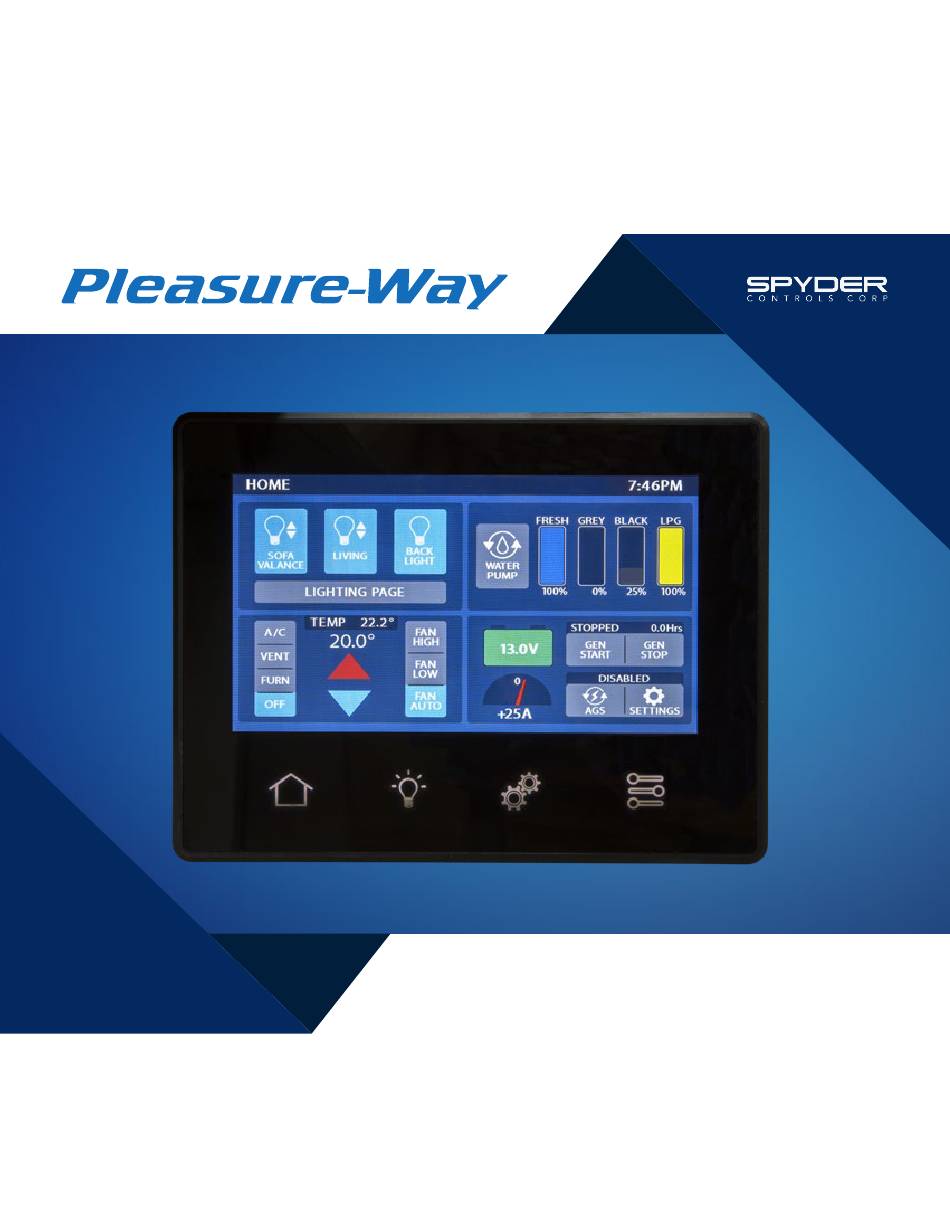

- Page 1 TOUCHSCREEN CONTROL PANEL OPERATION MANUAL...
-
Page 4: Table Of Contents
TABLE OF CONTENTS GETTING STARTED LIGHTING PAGE 12 Volt Battery Disconnect Switch Getting Started Menu Options Home Page Lighting Quick Access HOME PAGE MECHANICAL PAGE Lighting Quick Access Getting Started Water Pump Fan-Tastic Vent ® Tank Level Panel Awning Climate Control Center Power Sofa Battery Voltage SETTINGS PAGE... -
Page 5: Getting Started
G GETTING STARTED 12 VOLT BATTERY DISCONNECT SWITCH To operate the touchscreen control panels, the 12 volt battery disconnect switch must be in the ON position. (This applies to the front and rear touchscreen control panels) MENU OPTIONS The menu options are located at the bottom of the touchscreen control panel. -
Page 6: Water Pump
WATER PUMP Select the WATER PUMP button to run the on-board water pump. Ensure there is water in the fresh water holding tank before engaging the water pump. The water pump should not be turned on when the motorhome is connected to city water. It’s recommended that you turn off the water pump when the water system is not in use or when you are going to be away from your motorhome. - Page 7 In the furnace mode (FURN) If the desired temperature is above the interior temperature the furnace will engage and warm the coach to the desired temperature. At the desired temperature the furnace will cycle off. If the temperature drops below the desired temperature the furnace will cycle back on.
-
Page 8: Battery Voltage
BATTERY VOLTAGE This gauge displays the battery voltage. The battery voltage will vary depending on the load. The battery voltage will change depending on the amount of charge the battery is receiving from the solar panel, engine alternator, or the inverter/charger. -
Page 9: Automatic Generator Start
AUTOMATIC GENERATOR START The automatic generator start (AGS) can be used to charge the coach batteries and/or for climate control in your coach. To enable AGS for the Ascent, Plateau, and Plateau XL models, the LP switch must be in the ON position and the LP tank must have adequate fuel. -
Page 10: Ags Easy Setup
AGS EASY SETUP Select EASY SETUP for a quick set up of the start parameters. STARTING THE GENERATOR The first page displayed will ask when you want the generator to auto start. Select the boxes to check or uncheck the reason to enable. -
Page 11: Ags Manual Setup
STOPPING CONDITIONS FOR LOW BATTERY This page will enable you to set the parameters for the battery charging system. You will be able to set the desired charge voltage as well as the amount of time that the battery has held the voltage before the generator will shut down. - Page 12 STARTING Use the + and – buttons to adjust the settings for: • battery voltage • delay if the generator fails to start • number of restart tries RUNNING Use the + and – buttons to adjust the settings for the generator run time.
-
Page 13: Lighting Page
LIGHTING PAGE To access the LIGHTING PAGE, select the icon from the menu at the bottom of the touchscreen control panel, or select the LIGHTING PAGE button located underneath quick access lighting options on the HOME page. NOTE: LIGHTING PAGES will vary depending on the model. PLATEAU XLMB/XLTD/XLTS ASCENT TS &... -
Page 14: Getting Started
GETTING STARTED Select a light button to turn ON or OFF lighting associated with the area. Buttons will display in light blue when activated. The LIGHT MASTER button turns ON or OFF all the lights inside the vehicle. The LIGHT MASTER button does not control AWNING LIGHT or the PORCH LIGHT. -
Page 15: Mechanical Page
MECHANICAL PAGE GETTING STARTED To access the MECHANICAL page, select the icon from the menu at the bottom of the touchscreen control panel. These include: ® THE FAN-TASTIC VENT FAN, AWNING AND POWER SOFA. FAN-TASTIC VENT ® Select LID UP or LID DOWN button to open or close the vent. ®... -
Page 16: Power Sofa
POWER SOFA Touch and hold the EXTEND button until the sofa is fully extended. Touch and hold the RETRACT button until the sofa is completely retracted. The power sofa will not move unless the buttons are held. Do not sit on sofa when operating the power WARNING: sofa functions. -
Page 17: Screen Settings
SCREEN SETTINGS Select the SCREEN SETTINGS button to bring up the POWER SAVING MODE, the DEFAULT PAGE and the DEFAULT BUTTONS (quick access lighting on HOME page). Select the ENABLE button to activate the POWER SAVING mode. By using the + or – buttons, you can set the number of minutes the screen will be active before it goes off. -
Page 18: Diagnostics
DIAGNOSTICS Select the DIAGNOSTICS button to trouble shoot the DC ELECTRICAL SYSTEM. Select the STATUS button for status of each system. If the STATUS button is green the item is functioning as normal and the item is active. If the STATUS button is grey this item is not in use at this time. If the STATUS button is red there is a fault with this item (this will be highlighted in the FAULTS page). - Page 19 PLEASE NOTE: Appliances and options may change without notice and some appliances and equipment may be optional. Due to Pleasure-Way’s policy of continuous improvement, Pleasure-Way Industries Ltd. reserves the right to make product changes at any time without incurring obligation.
