Summary of Contents for Dime CRY BABY FROM HELL

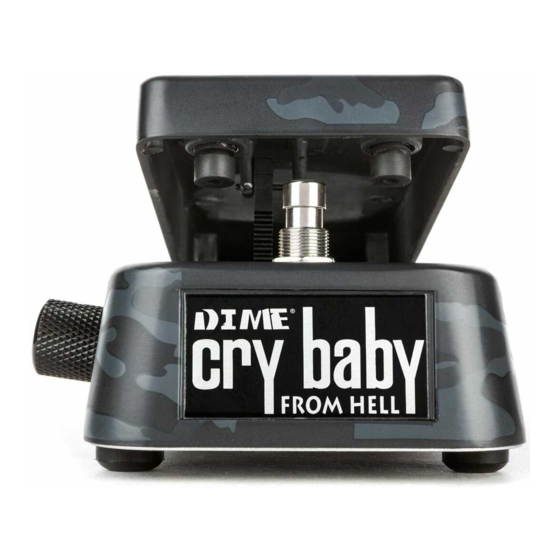

- Page 1 DB01B DIME CRY BABY FROM HELL ® ®...
- Page 2 Cry Baby Wah, and at a time when wah pedals had fallen out of fashion, Dime flew his wah flag high. Armed with his hard-earned expertise and insight from years of touring, he helped us devise this wah, the most versatile in our lineup.
-
Page 3: External Controls
VARIABLE Q knob controls the sharpness of the DB01’s bandpass FINE TUNE knob shapes tone of toe-down position BOOST switch increases output as set by the VOLUME knob (indicated by red LED) RANGE SELECTOR determines frequency center of WAH WAH DB01B DIME CRY BABY FROM HELL ®... -
Page 4: Basic Operation
BASIC OPERATION POWER ADJUSTABLE ROCKER TENSION The Dime Bag Signature Cry Baby Wah Wah is powered Located under the rocker at the heel of the pedal is ® by one 9-volt battery (accessed via bottom of pedal), an adjustable torque clutch that allows the amount an AC adapter such as the Dunlop ECB003/ECB003E, of resistance the rocker has to being moved. -
Page 5: Specifications
-102 dGV MAXIMUM GAIN AT FC 15 dBV BOOST RANGE 0.1 to 17 dB BYPASS Buffered CURRENT DRAW 2.5 mA POWER SUPPLY 9 volts DC * A-weighted ** Adjustments by fine tune control DB01B DIME CRY BABY FROM HELL ® ®...
