DOEPFER A-113 Manual

doepfer
Subharmonic Generator
1
Up
Down
2
Up
Down
3
Up
Down
4
Up
Down
Freq.
In
Attention ! The A-113 module requires an additional
+5V power supply with 100mA (e.g. the separate +5V
power supply or the +5V low-cost adapter)
System A - 100
A-113
Level
8.8.
Out 1
Level
8.8.
Out 2
Level
8.8.
Out 3
Store
Level
8.8.
Out 4
Preset
Foot Foot
Mix
Ctr. 1 Ctr. 2 Out
Subharmonic Generator

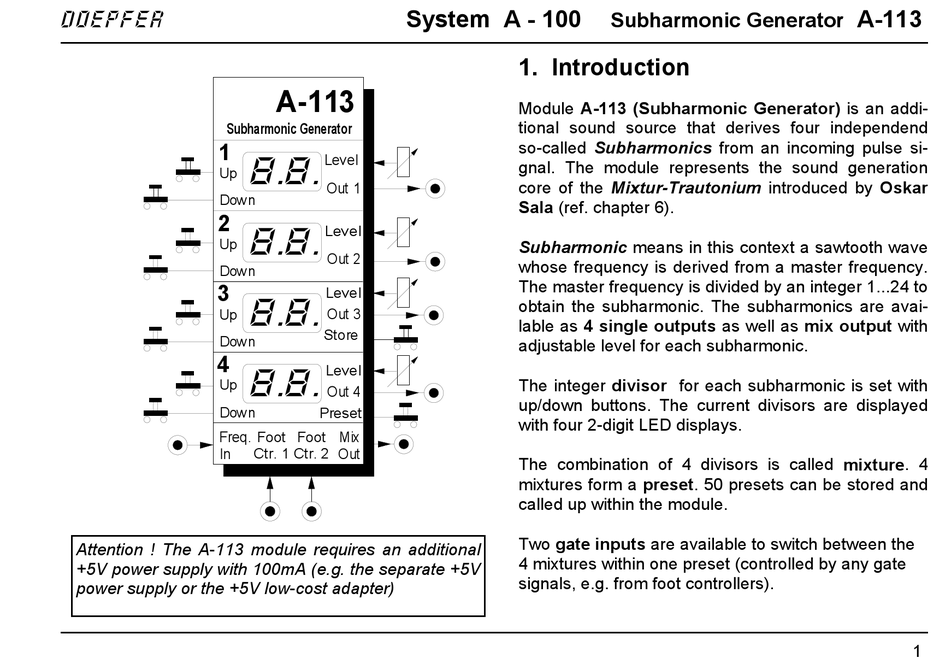

1. Introduction

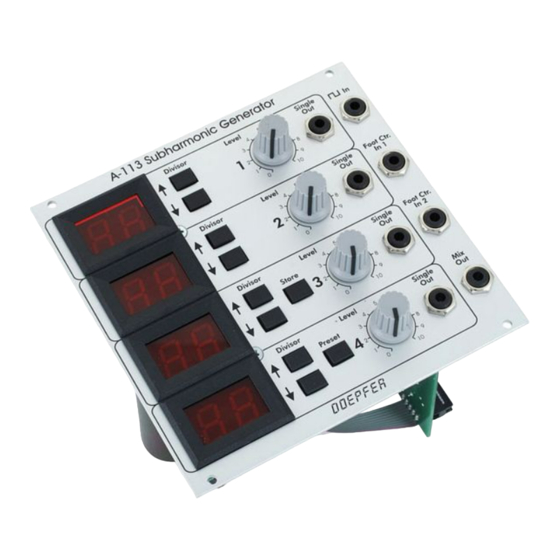

Module A-113 (Subharmonic Generator) is an addi-
tional sound source that derives four independend
so-called Subharmonics from an incoming pulse si-
gnal. The module represents the sound generation
core of the Mixtur-Trautonium introduced by Oskar
Sala (ref. chapter 6).
Subharmonic means in this context a sawtooth wave
whose frequency is derived from a master frequency.
The master frequency is divided by an integer 1...24 to
obtain the subharmonic. The subharmonics are avai-
lable as 4 single outputs as well as mix output with
adjustable level for each subharmonic.
The integer divisor for each subharmonic is set with
up/down buttons. The current divisors are displayed
with four 2-digit LED displays.
The combination of 4 divisors is called mixture. 4
mixtures form a preset. 50 presets can be stored and
called up within the module.
Two gate inputs are available to switch between the
4 mixtures within one preset (controlled by any gate
signals, e.g. from foot controllers).
A-113
