Summary of Contents for Multitech Dragonfly MTQ-LSP3-B03

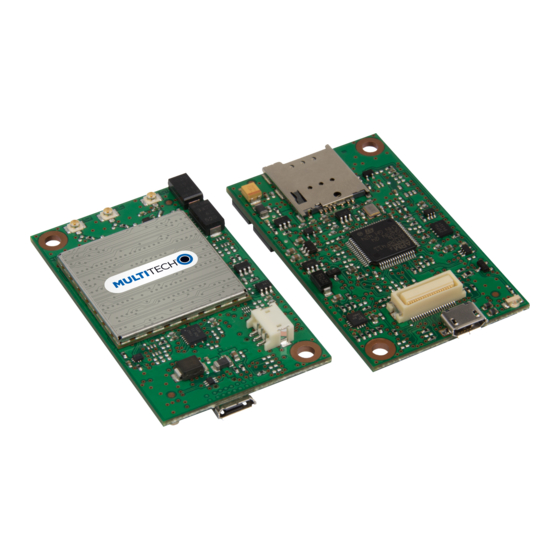

  • Page 1 Dragonfly MTQ-LSP3-B03 Device Guide...
  • Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
  • Page 3: Table Of Contents

    CONTENTS Contents Chapter 1 – Product Overview ..........................6 Overview ..................................6 Documentation ................................6 Product Build Options ..............................6 Chapter 2 – MTQ-LSP3 Mechanical Drawing ......................7 Chapter 3 – Hardware and Specifications......................... 8 Specifications ................................8 40-Pin Connector Definitions ............................9 MTQ-xx-B03 ................................
  • Page 4 CONTENTS Sécurité relative aux appareils à radiofréquence (RF)....................20 General Safety................................21 Interference with Pacemakers and Other Medical Devices ..................21 Potential interference ............................... 21 Precautions for pacemaker wearers ........................21 Vehicle Safety................................21 Device Maintenance ..............................22 User Responsibility..............................22 Chapter 6 –...
  • Page 5 CONTENTS Index..................................35 Dragonfly MTQ-LSP3-B03 Device Guide...
  • Page 6: Chapter 1 - Product Overview

    For LSP3 devices, lists AT Commands and parameters used to 80490ST10778A AT Commands Reference communicate with your device. Guide Note: Additional documentation is available on the mbed site and at www.multitech.net. See Developing with an MTQ in Mbed for details. Product Build Options Product...
  • Page 7: Chapter 2 - Mtq-Lsp3 Mechanical Drawing

    MTQ-LSP3 MECHANICAL DRAWING Chapter 2 – MTQ-LSP3 Mechanical Drawing Dragonfly MTQ-LSP3-B03 Device Guide...
  • Page 8: Chapter 3 - Hardware And Specifications

    HARDWARE AND SPECIFICATIONS Chapter 3 – Hardware and Specifications Specifications Category Description General Standards LTE FDD Cat 1, 3GPP release 9 compliant USB Interface is CDC-ACM compliant Frequency Bands 4G: B2, B4, B5/B26, B12, B25, B26 One, link status Speed Data Speed LTE: 10 Mbps downlink/ 5 Mbps uplink Interface...
  • Page 9: 40-Pin Connector Definitions

    HARDWARE AND SPECIFICATIONS Category Description Certifications and Compliance EMC and Radio FCC Part 15 Class B Compliance FCC Part 22H FCC Part 24E FCC Part 27 FCC Part 90 Safety Compliance UL/cUL 60950-1 2nd Edition Carrier Sprint Note: Mbed has limited USB support for the processor. Software controls routing to processor or directly to radio.
  • Page 10 HARDWARE AND SPECIFICATIONS Signal Name Logic Level Voltage In/Out Description Ground USB-DATA+ 0 - 3V USB-DATA- VCC-IN 4.35 - 5.25 Power Input Main Power IO_00 I = 0 - 7V, O = 0 - 3V General Purpose I/O from ST Microcontroller (STM32F413RH) IO_01 IO_02...
  • Page 11: 40-Pin Connector

    HARDWARE AND SPECIFICATIONS Signal Name Logic Level Voltage In/Out Description See ST Microcontroller Guide SWDIO DBG_RX ST Micro UART debug Tx input A hyphen (-) indicates a range of acceptable logic levels. USB D+D-: 5V tolerant inputs / 3V drive-level output 40-Pin Connector Manufacturer: Hirose Electric Co LTD...
  • Page 12 HARDWARE AND SPECIFICATIONS Net Name Number Pin Name Details VDD3_3 VBAT Power 3G_ONOFF PC13 Enable line to the Radio 32K_XTAL_ PC14 RTC Clock 32K_XTAL PC15 RTC Clock 26MHZ_CLK_IN PH0-OSC_IN Main Clock 26MHZ_CLK_DRIVE PH1-OSC_OUT Main Clock N_RESET NRST External Reset in IO_10 GPIO/Analog capable pin IO_11...
  • Page 13 HARDWARE AND SPECIFICATIONS Net Name Number Pin Name Details RADIO_CTS PB12 Serial comm with the radio IO_13 PB13 GPIO SPI-SS2 PB14 GPIO for use with external SPI IO_7 PB15 GPIO/SDIO_CK RADIO_TXD Serial comm with the radio RADIO_RXD Serial comm with the radio IO_17/SS2/SDIO_D0 GPIO/SDIO_D0 IO_14/SDIO_D1...
  • Page 14: Serial Flash Embedded Memory

    HARDWARE AND SPECIFICATIONS Net Name Number Pin Name Details VDD3_3 VDD_3 Power Serial Flash Embedded Memory This product uses the GigaDevice GD25Q16C serial flash memory device. For information on features, refer to the serial flash datasheet: https://www.gigadevice.com/flash- memory/gd25q16c For information on processor connections to serial flash, refer to the table in Processor Pin Information. Electrical Characteristics Operating Conditions Parameter...
  • Page 15: Input/Output Current Ratings

    HARDWARE AND SPECIFICATIONS Parameter Conditions Minimum Volts Maximum Volts RESET (low active) input low CMOS port 0.99 =+8 mA RESET (low active) input high CMOS port 2.31 =+8 mA (1) Guaranteed by characterization results, not tested in production. (2) Guaranteed by design, not tested in production. Note: See the ST Microcontroller data sheet (STM32F413RH) and the Pin Connector Definitions table in Chapter 3 of this guide.
  • Page 16: Chapter 4 - Antennas

    External Antenna Option Antenna Devices were approved with the following antenna or for alternate antennas meeting the given specifications: Manufacturer: Wieson Description: LTE Antenna with SMA-Male Connector Model Number GY115IE002-001 MultiTech ordering information: Model Quantity ANLTE4-1HRA ANLTE4-2HRA ANLTE4-10HRA ANLTE4-50HRA Antenna Specifications Category...
  • Page 17: Sma To U.fl Cables

    ANTENNAS SMA to U.FL Cables The developer kit includes three 4.5" SMA to U.FL cables which are preinstalled on the developer board. Consult the mechanical drawings for your device to determine which antenna to connect to which U.FL connector on the device.
  • Page 18: Placing External Antennas

    ANTENNAS Antenna diversity provides an advantage in complex environments because if one receive antenna has a poor signal due to an interference null pattern, the other antenna is likely not in the null and has better reception. The radio compares the reception from both receive antennas and uses the one with the strongest signal. Antenna diversity is unnecessary when the device has an unobstructed signal path from the cell tower, such as in a flat area away from buildings.
  • Page 19: Fcc Grant Notes

    ANTENNAS FCC Grant Notes The OEM should follow all the grant notes listed below. Otherwise, further testing and device approvals may be necessary. FCC Definitions Portable: (§2.1093) — A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user.
  • Page 20: Chapter 5 - Safety Information

    SAFETY INFORMATION Chapter 5 – Safety Information Handling Precautions To avoid damage due to the accumulation of static charge, use proper precautions when handling any cellular device. Although input protection circuitry has been incorporated into the devices to minimize the effect of static build-up, use proper precautions to avoid exposure to electronic discharge during handling and mounting the device.
  • Page 21: General Safety

    SAFETY INFORMATION Éteignez votre appareil sans fil dans les hôpitaux ou dans toutes les zones où des appareils médicaux sont susceptibles d'être utilisés. General Safety The device is designed for and intended to be used in fixed and mobile applications. Fixed means the device is physically secured at one location and cannot be easily moved to another location.
  • Page 22: Device Maintenance

    Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. The information contained on discs or cards may be affected by the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty.
  • Page 23: Chapter 6 - Getting Started

    If possible, use a USB port that connects directly to the motherboard rather than a USB port with added cabling inside the computer chassis. Use USB 3.0 ports if available. These ports are typically rated for more current. You can order the USB cable through MultiTech. The part number is CA-USB-A-MICRO-B-3. Dragonfly MTQ-LSP3-B03 Device Guide...
  • Page 24: Communications Flow

    Communicating with the Device Following are three options for communicating with the device. Recommended: Establish serial communication using MultiTech developer board MTUDK2. See the Universal Developer Kit 2.0 Developer Guide (PN S000610) for more information. Install cellular radio USB drivers and plug into the micro USB connector. No need for a host board.
  • Page 25: Powering Down Your Device

    GETTING STARTED Powering Down Your Device CAUTION: Failing to properly power down the device before removing power may corrupt your device's file system. To properly power down your device, do one of the following options: Option 1: : Issue the AT#SHDN command. Wait 30 seconds.
  • Page 26: Developing With An Mtq In Mbed

    All MTQ software is open source. Mbed Links Explore Mbed: http://developer.mbed.org/explore Getting Started with Mbed: http://developer.mbed.org/getting-started Mbed Handbook: http://developer.mbed.org/handbook/Homepage Additional Information: http://www.multitech.net/developer/products/multiconnect-dragonfly/ MTQ-LSP3-B03 Platform Page Use the MTQ Mbed page with Mbed's Pelion IoT platform. For details, refer to https://os.mbed.com/platforms/MTS-Dragonfly-f413rh. Dragonfly MTQ-LSP3-B03 Device Guide...
  • Page 27: Stmicroelectronics Stm32F413Rh

    GETTING STARTED STMicroelectronics STM32F413RH For information on the STM32F413RH microcontroller, refer to: Reference Manual: https://www.st.com/content/ccc/resource/technical/document/reference_manual/group0/81/ea/88/1f/97/ 9e/4a/d0/DM00305666/files/DM00305666.pdf/jcr:content/translations/en.DM00305666.pdf Datasheet: https://www.st.com/resource/en/datasheet/stm32f413cg.pdf Dragonfly MTQ-LSP3-B03 Device Guide...
  • Page 28: Chapter 7 - Labels

    This device is an industry and/or carrier approved modem. In most cases, when integrated and used with an antenna system that was part of the MultiTech modem certification, additional approvals or certifications are not required for the device that you develop as long as the following requirements are met: PTCRB Requirements: The antenna system cannot be altered.
  • Page 29: Chapter 8 - Regulatory Information

    REGULATORY INFORMATION Chapter 8 – Regulatory Information 47 CFR Part 15 Regulation Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 30: Fcc Grant Information

    REGULATORY INFORMATION FCC Grant Information FCC Part 15 FCC Identifier: RI7LE910C1NS Equipment Class: PCS Licensed Transmitter Notes: Wireless Module Approval: Single Modular FCC Rule Parts Frequency Range Output Watts Frequency Emission Designators (MHz) Tolerance 1850.7 -1909.3 0.271 2.5 PM 1M08G 1850.7 -1909.3 0.211 2.5 PM...
  • Page 31: Maximum Antenna Gain

    REGULATORY INFORMATION FCC Rule Parts Frequency Range Output Watts Frequency Emission Designators (MHz) Tolerance 825.5 - 847.5 0.218 2.5 PM 2M69G 825.5 - 847.5 0.168 2.5 PM 2M69W 826.5 - 846.5 0.217 2.5 PM 4M49G 826.5 - 846.5 0.167 2.5 PM 4M49W 829.0 - 844.0 0.224...
  • Page 32 REGULATORY INFORMATION Band Maximum Antenna Gain FDD 5 6.08 FDD 26 6.08 FDD 4 FDD 2 8.01 FDD 25 8.01 FDD 12 5.63 Dragonfly MTQ-LSP3-B03 Device Guide...
  • Page 33: Chapter 9 - Environmental Notices

    Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements.
  • Page 34: Restriction Of The Use Of Hazardous Substances (Rohs)

    2015/863 of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <...
  • Page 35 INDEX Index absolute maximum rating ..........14 interférence des radiofréquences.........20 antenna .................16 connecting ...............17 diversity..............17 antenna gain ..............31 KDB 447498 Section 8 ..........18 AT passthrough .............26 AT#SHDN ...............25 labeling host ................18 build options ..............6 labels ................28 library ................26 cable................17 certification maintenance ..............22 FCC ................30 maximum antenna gain ..........31 Class B ................29...
  • Page 36 INDEX interférences RF............20 safety modem..............21 RF interference ............20 U.FL ................17 vehicle..............21 user responsibility............22 shutdown ..............25 SIM card, installing............23 sleep mode..............25 SMA to U.FL..............17 vehicle safety ..............21 SMA to U.FL cable ............17 specifications..............8 static................20 sécurité Dragonfly MTQ-LSP3-B03 Device Guide...
