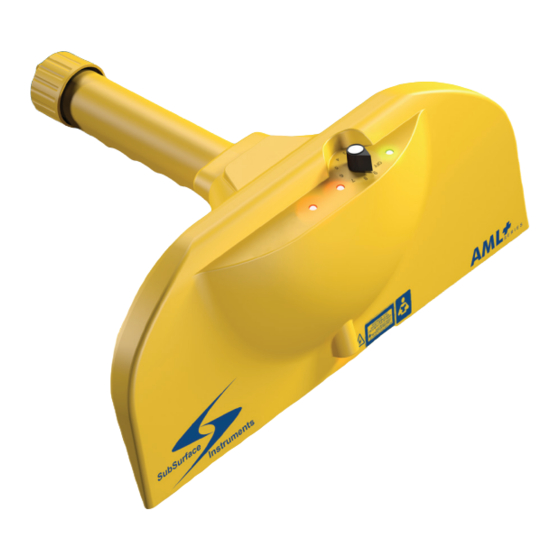

SubSurface Instruments AML+ Operator's Manual
  1. Manuals
  2. Brands
  3. SubSurface Instruments Manuals
  4. Camera Accessories
  5. AML+
  6. Operator's manual

SubSurface Instruments AML+ Operator's Manual

All material locator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SUBSURFACE
INSTRUMENTS,
AML +
™
OPERATOR'S
MANUAL
INC.
www.ssilocators.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AML+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SubSurface Instruments AML+

  • Page 1 SUBSURFACE INSTRUMENTS, INC. AML + ™ OPERATOR’S MANUAL www.ssilocators.com...
  • Page 2 There are no user serviceable parts inside. Opening the sealed case will void the warranty. If maintenance, tuning, or repair becomes necessary contact: SubSurface Instruments, Inc. email: info ssilocators.com Telephone: 920-347-1788 or Or by mail: SubSurface Instruments, Inc.
  • Page 3 READ & OBSERVE SAFETY WARNINGS Save these instructions for future reference. Do not direct the laser beam at people or animals. Do not stare into the laser beam. The AML+ produces Laser Class II/2M laser radiation according to IEC 60825-1. Looking directly into the laser beam - especially with optical instruments such as...
  • Page 4 OPERATING INSTRUCTIONS How the AML+ Works The unit contains an internal control circuit board, and an antenna board that controls the center transmitter and independent left and right signal receivers. A powerful 2.45 GHz ground- penetrating, ultra-high frequency radio signal locates density differences by transmitting inverted conical shaped UHF signals into the ground.

  • Page 5: Fcc/Ic/Ce Statements

    FCC/IC/CE STATEMENTS This equipment was tested and found to comply with the lim- its for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protec- tion against harmful interference when the equipment is operated in a commercial environment.

  • Page 6: Controls And Functions

    CONTROLS AND FUNCTIONS Backside view of unit...
  • Page 7 1) EASY BATTERY ACCESS The AML+ is powered by either a convenient 9-volt battery system, or by a rechargeable Lithium battery pack. 2) ERGONOMIC HANDLE The ergonomically designed handle allows the operator to hold the AML+ for extended periods of time in all weather conditions. 3) POWER &...
  • Page 8 8) LASER TARGET INDICATOR A red laser indicator identifies the target position on the ground when an object has been detected; and an audible signal is emitted. 9) ULTRA-HIGH RADIO FREQUENCY RECEIVERS The receiver captures the returning UHF reflection with antennas on both ends of the unit.
  • Page 9 USING THE AML+ Operation of the AML+ is technique sensitive. We advise that you practice on a known buried object like a culvert pipe or other partially exposed objects. Once the principals of operation are understood, acquiring a technique is relatively simple with a little practice.
  • Page 10 Locating an Object with the AML Grip the AML+ by the handle with the fingers firmly placed along the finger knurls. Do not hold the unit above the knurls as it will produce false readings. Hold the handle parallel to the ground at waist level and 18 to 24 inches out in front of the body.
  • Page 11 Marking the Exact Location of an Object with the AML+ Remember that the 10º forward projection of the blade will make the object appear closer than it actually is (see figure 11-1). Once the object is found, pivot the handle of the AML+ upward until the blade (or bottom of the AML+) is perpendicular to the ground and directly above the area of...
  • Page 12 Determining depth with the AML+ Once you have located the PVC pipe or underground object, find its center 3rd. Nub and mark its position on the ground, tilt the handle of the unit downward until 45º the blade is at 45º, (figure 12-1) and walk backwards until you find the top Parallel to the Ground of the pipe.

  • Page 13: Battery Replacement

    BATTERY REPLACEMENT Easy Battery Access Cap Battery Pack (Houses (3) 9-Volt Batteries) To Replace Batteries in Your AML+ Unit: 1. Unscrew the battery access cap and remove the battery sleeve. 2. Individually, lift each battery out of the sleeve, turn it 180 degrees and remove used battery. 3.

  • Page 14: Technical Specifications

    TECHNICAL SPECIFICATIONS PRODUCT INFORMATION Physical Dimensions • Height ....11” ....27.9cm • Length ....14” ....35.6cm • Width ....6” ....15.2cm • Weight ....2 lbs ..0.90kg Typical Operating Range • Temperature: 0°F to 120°F (-17°C to 48°C) Power Specifications Estimated Battery Life: • (3) 9-Volt Industrial Strength Alkaline Provides up to 7 hours of continuous operation at full power, or 40 hours at average industry usage.
  • Page 15 APPENDIX (FIRMWARE UPDATE) AML+ Tiny BootLoader This utility is used to install AML+ firmware updates. INSTALL SOFTWARE TO YOUR COMPUTER Download Tiny BootLoader File 1. Download SSI Tiny BootLoader Utility from the SSI web site at http://www.ssilocators. com/specialty-products/all-materials-locator- plus-series/, found on the Downloads tab on the SSI website.
  • Page 16 APPENDIX Note: the computer will recognize this unit when connecting in future uses. You can obtain the latest firmware updates by contacting Subsurface Instruments at info@ssilocators.com; create a folder in a convinient location, you will use this folder to store the “*.HEX” (firmware update) file you receive from SSI.
  • Page 17 APPENDIX Terminal Comm Port Speed: 9600 Tx/Transmitter: Char\ Rx/Reciever: Char - dump.bin Figure 17-1 Options ID code: C1h - Normal Reset: “Active” RTS, DTR ON Codes to send first: 24h 49h Search Delay: 7 Timeout(ms): 300 Search for COMs: “Active” Figure 17-2 TermOpt Graphic 2 reference: 128...
  • Page 18 APPENDIX (AML+ UTILITY APP) AML+ CUSTOMER UTILITY The AML+ Customer Utility is used to calibrate and run diagnostics on your AML+ unit. INSTALL SOFTWARE TO YOUR COMPUTER Download AML+ Customer Utility 1. Download AML+ Customer Utility from the http://www.ssilocators.com/ SSI web site at specialty-products/all-materials-locator-plus- series/, found under the Downloads Tab.
  • Page 19 APPENDIX 3. There will be a command prompt line at the bottom of all diagnostic data from the AML+ unit, (figure 19-1) Figure 19-1 4. Type “a” to start the calibration process and press enter, a confirmation prompt will display, type “y” to confirm and press enter to start the process, (remember to have the AML+ pointing to an unobstructed sky at this point).
  • Page 20 APPENDIX 5. The calibration process will take a few seconds and you will be able to see progress in your screen, which displays 0-9 and then A-F. All values are displayed after the calibration is complete. This information will be helpfull when troubleshooting with a SSI Technician.
  • Page 21 Instruments Inc. Locating accuracy and safety, all encompassed, are the sole responsibility of the “Operator- user” of the product. SubSurface Instruments, Inc. is not responsible for errors and/or omissions in this manual. Information in this manual is subject to change without notice.

  • Page 22: Warranty Statement

    Physical abuse, battery acid and water damage as determined by the prepaid to: sole discretion of SubSurface Instruments Inc., are explicitly and SubSurface Instruments, Inc. entirely excluded from this warranty. 1230 Flightway Drive Additionally, this is a scientific De Pere, WI 54115 USA...
  • Page 23 SubSurface Instruments, Inc. 920.347.1788 phone 920.347.1791 fax 855.422.6346 (855-I-can-find-it) info@ssilocators.com www.ssilocators.com Proudly Made in the USA Your Local Dealer: Rev 11/2019...
