BZB Gear BG-SMB-5M User Manual

Usb bluetooth speaker & speakerphone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USB Bluetooth
Speaker & Speakerphone
User Manual
BG-SMB-5M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-SMB-5M and is the answer not in the manual?

Questions and answers

Summary of Contents for BZB Gear BG-SMB-5M

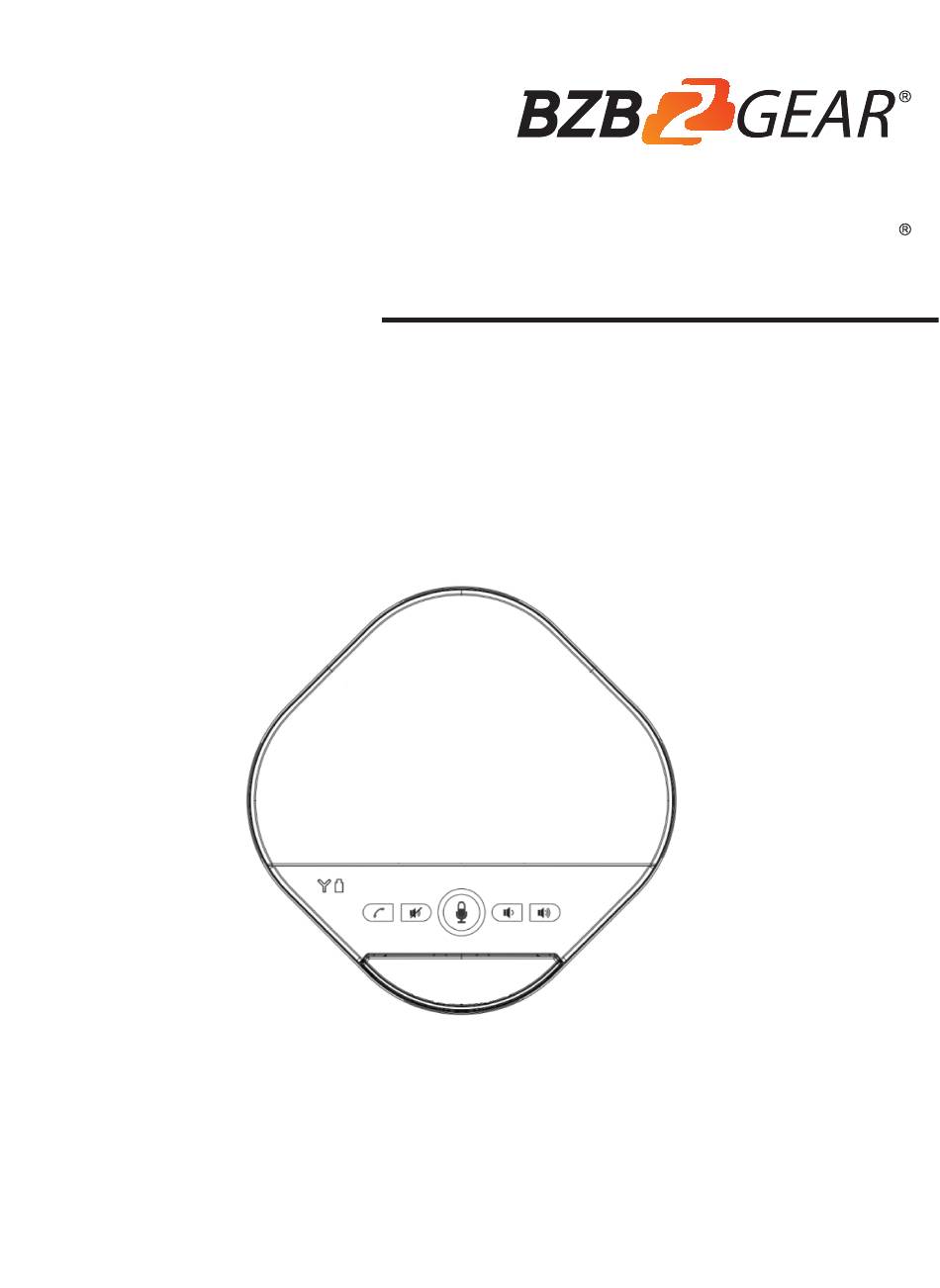

  • Page 1 USB Bluetooth Speaker & Speakerphone User Manual BG-SMB-5M...

  • Page 2: Table Of Contents

    Contents 1.Product description Preface ---------------------------------- Attention ---------------------------------- Main features ---------------------------------- Product type ---------------------------------- Supplied accessories ---------------------------------- 2.Function Interface introductions ---------------------------------- Button function ---------------------------------- LED indicator function ---------------------------------- Charging instructions ---------------------------------- Connection introductions ---------------------------------- Pick up range ---------------------------------- Function diagram ---------------------------------- 3.Tech parameters Tech parameters ----------------------------------...

  • Page 3: Product Description

    This manual describes the functions, installation and use of this device in full detail. BG-SMB-5M is a full duplex 16kHz echo cancellation speaker- phone. The pickup radius is 5m, which is ideal for one-to-one and small to medium group conference calls.

  • Page 4: Main Features

    7. Compatible with all leading UC platform such as video conference software like ZOOM, Vidyo, WebEx, Skype for business, Google hangout, etc. Product type BG-SMB-5M (Please charge before using the Wireless/Bluetooth devices. Please charge with standard USB cable and power adaptor.)

  • Page 5: Supplied Accessories

    Supplied Accessories USB cable Power adaptor 2.4G Wireless Receiver 3.5mm audio cable Interface introduction 1. Ext2 2. Ext1 3. Working status indicator 4. Line in/out 5. USB interface (rechargeable) 6. Din6 7. 2.4G indicator 8. Battery indicator 9. Volume indicator 10.

  • Page 6: Button Function

    Button Long press 3 seconds to turn Power on/off on/off the device Volume Increase/Reduce the volume up/down Turn on/off speaker mute function Speaker mute Bluetooth pairing Bluetooth Answer/hang up Answer/Hang up call Microphone Turn on/off microphone mute function mute Long press 5 seconds to enter PC mode, PC mode exit mobile mode, working indicator flash 3 times.

  • Page 7: Led Indicator Function

    LED Indicator Function The device Blue indicator on works normally Green indicator Speaker mute flashes Red indicator on Microphone mute Volume indicator Green and red Both speaker and indicator alternating microphone mute flash 2.4G and Bluetooth Y type connect green indicator on 1.Red indicator flashes if the type/battery...

  • Page 8: Charging Instructions

    Charging instructions Please charge before using the Wireless/Bluetooth devices. This device comes with a built-in rechargeable battery, please charge with standard USB cable and power adaptor, or charge by connecting the device to PC. Note: Device takes 2-3 hours to be fully charged. Connection introductions This device can be connected by USB cable as a speaker and a microphone.
  • Page 9 1. Turn on the device, press Bluetooth pairing, green indicator Y flashes indicating pairing is ready. 2. Turn on the Bluetooth on your smartphone, tablet or other smart devices, choose “BG-SMB-5M" to match. Y indicator will be on when paired successfully. 3. Open the platform of choice and initiate a call.
  • Page 10 IN/OUT connection (1) When the connection port of the terminal device is a four-core audio interface, the "I/O" port of the terminal device can be connected with the terminal device through a 3.5 mm four-core audio line. (2) When the connection port of the terminal device is two three-core audio interfaces (microphone and speaker interfaces), an audio converter is needed.

  • Page 11: Pick Up Range

    Pick up range 5m radius pick up range, fit for small to medium meeting rooms.

  • Page 12: Function Diagram

    Function Diagram Home based worker Small - medium business conference call Omnidirectional call Audio playback Technical Spec Acoustic Echo cancellation（AEC） ：>65dB Echo length cancellation：≥500ms Voice technical Bidirectional noise compression（NC） ：<25dB parameters Automatic Direction finding Technology of Intelligent microphone（EMI） Automatic gain control（AGC） Microphone frequency response：100Hz-22KHz Speaker frequency response：100Hz-22KHz Speaker volume: 95dB at the most...

  • Page 13: Warranty Information

    Warranty BZBGEAR wants to assure you peace of mind. All BZBGEAR cameras and camera-related products include our Stress-Free Three-Year Warranty. For complete warranty information, please visit BZBGEAR.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind.
