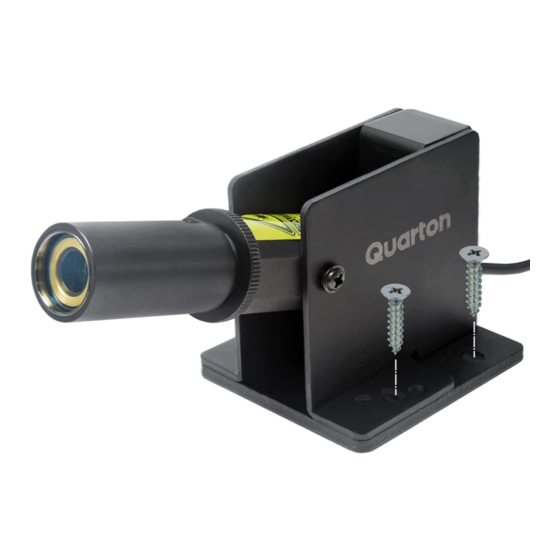

Infiniter ML-200G Instructions

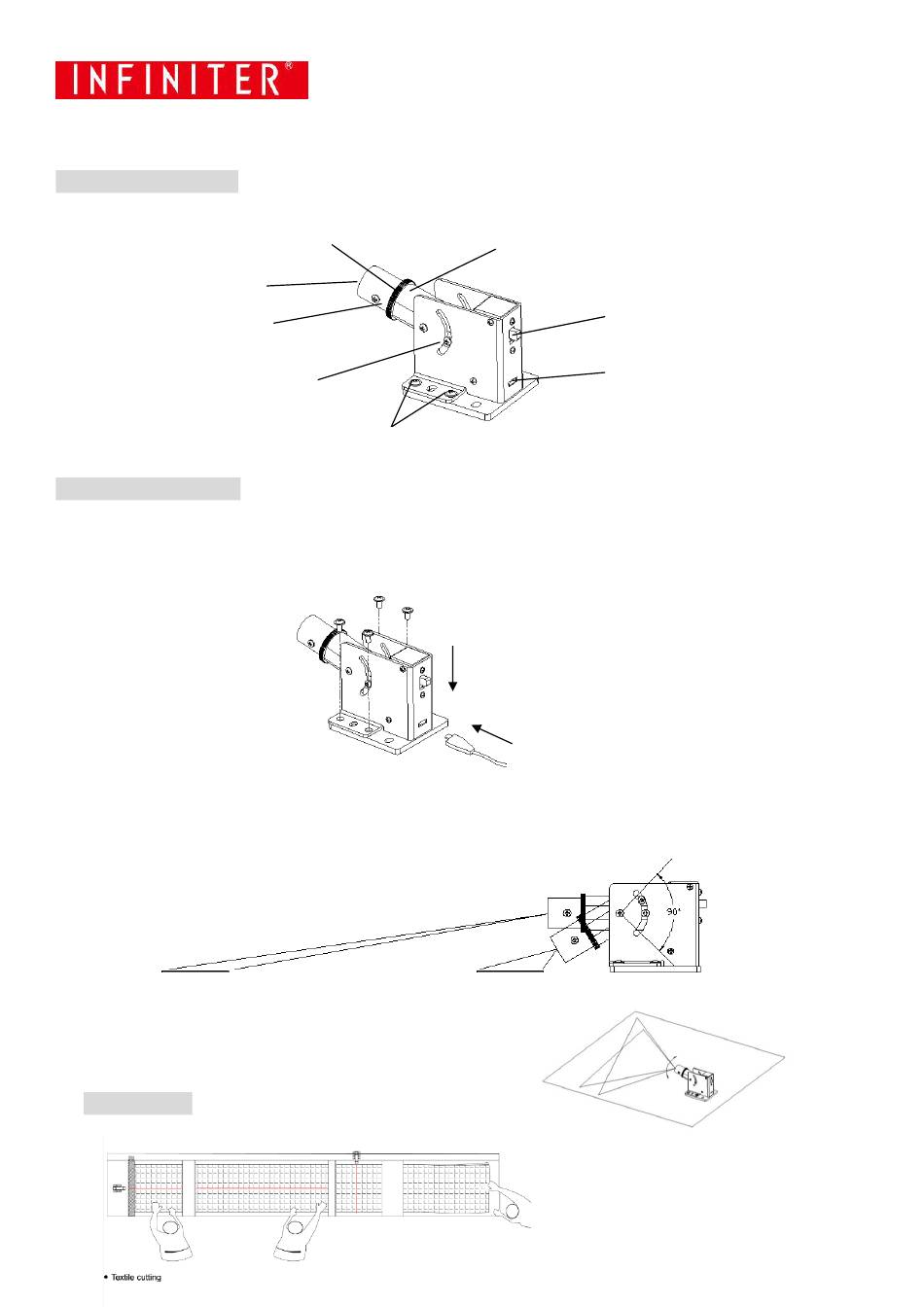

OPERATION FUNCTIONS
Laser aperture
Adjustable bushing
Fixing screw
OPERATION THE ML-200
1. Attach the ML-200 to the cutting machine with four provided M4 screws
2. Plug in the ML-200 with the USB adaptor
3. Turn on the ON/OFF switch
4. Loose the fixing screw gently and adjust the module housing to project the laser
line into position you want. Tighten the fixing screw to fix the laser's position
5. Loose the fixing ring. Rotate the adjustable bushing to find the .angle you want
Tighten the fixing ring to fix the laser line's angle
6. Cut the stuff along the laser line
APPLICATIONS
INSTRUCTIONS
Fixing ring
Setting holes
ML-200G
Module housing
Turn on
Plug in
ON/OFF switch
MIRCO USB
