Fadisel cebek FE-77 Manual

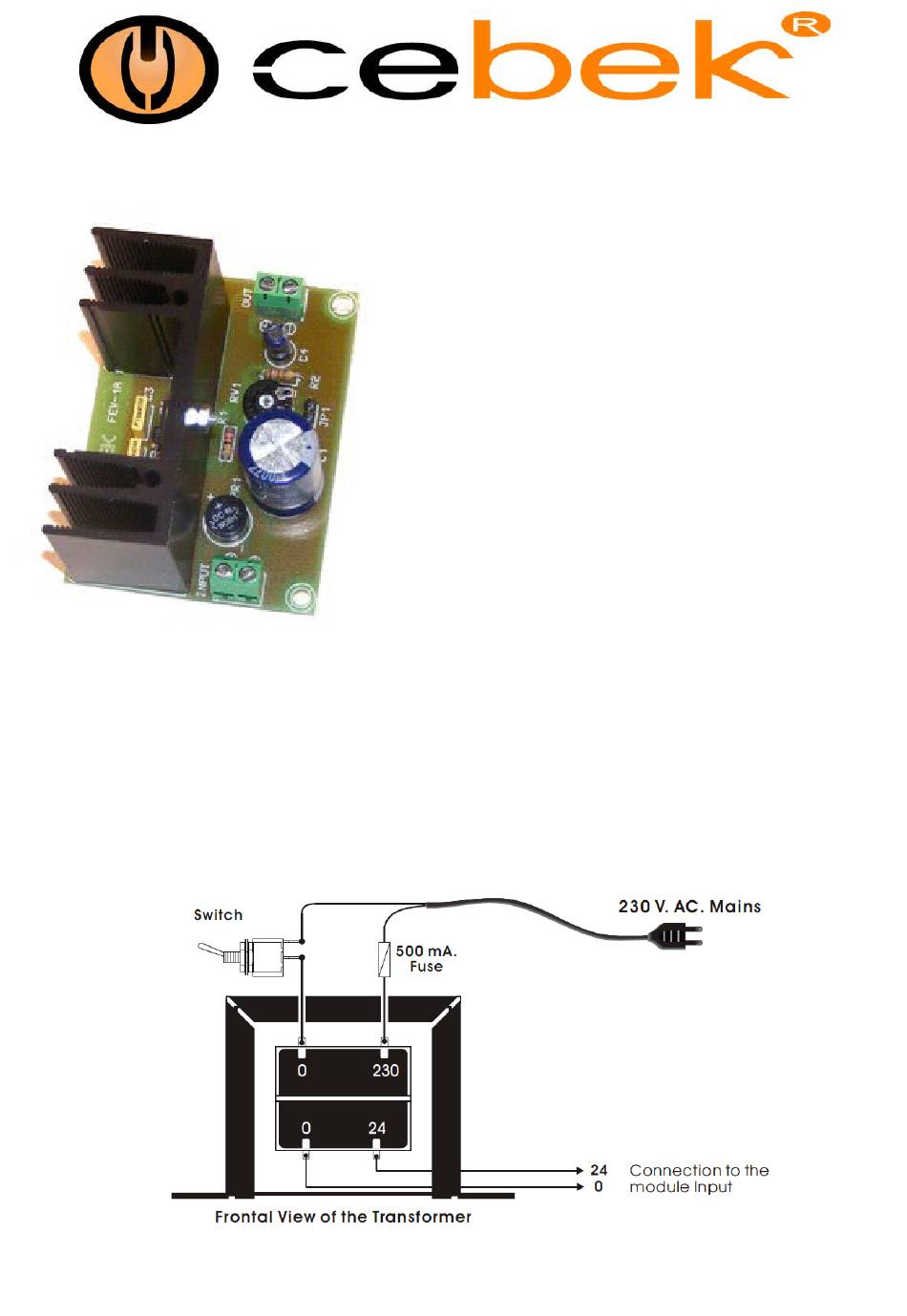

The FE-77 module is a 12-24 V. DC power supply perfectly stabilised with the possibility to short-circuit it and offering 1A.
as maximum output intensity.
It include connection terminals to facilitate the assembly and Protection against polarity inversion.
Transformer is supplied and included in the end-user price.
Do not forget to read all the information mentioned hereafter to obtain a perfect operating of the module.
TRANSFORMER'S CONNECTION. If you observe the transformer, you could note that there are 4 terminals or pins: 2 in
the superior part with the indication 0, 230 V A.C corresponding to the input voltage (coming form the mains) and 2
in the inferior part with the indication 0 & 24 V D.C, corresponding to the output voltage, which must be connected
to the module.
12 - 24 V. / 1 A. VARIABLE
POWER SUPPLY

TECHNICAL CHARACTERISTICS

Input Voltage. ...................................................................230 V. AC
Output Voltage. ................................................................From 12 to 24 V.DC.
Maximum constant output intensity. .................................700 mA.
Maximum Intensity. ..........................................................1 A.
Maximum Ripple. .............................................................10 mV.
Allowance Output Voltage. ...............................................5 %.
Time to answer to an output short-circuit.(with load) ........0.6 sec.
Time to be Vo. after a short-circuit. (With load). ..............11 sec.
Protection against porlarity inversion. .............................Yes.
FE-77 Modules' sizes. .....................................................71 x 55 x 45 mm.
www.cebek.com - sat@cebek.com
FE-77
