Desco Europe 231700 Installation, Operation And Maintenance

EUROPE

Vacuum Cleaner and Blower

Installation, Operation and Maintenance

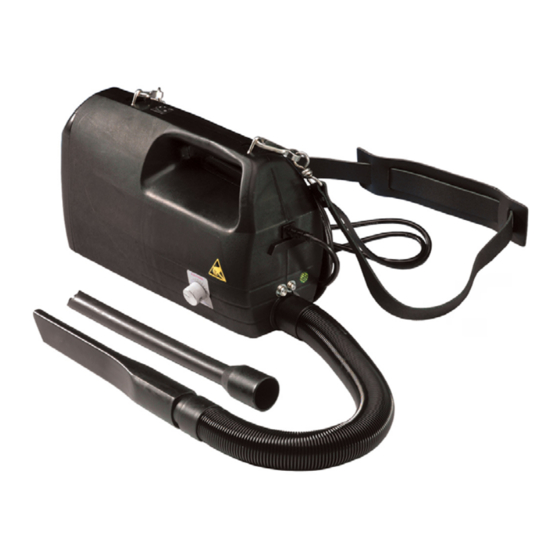

Figure 1. 231700 ESD Vacuum Cleaner
Figure 2. 231710 ESD Vacuum Cleaner with Speed Control

Description

Compact lightweight blower / vacuum cleaner designed
for precise removal and collection of dry dust particles
and debris from electrostatic static sensitive devices
(ESDS). The conductive nozzles drain-off any static
build-up to earth. The
dial allowing for complete adjustment of suction levels.
In order to comply with EN61340-5 recommendations
for working in an ESD protected area (EPA), the
appliance housing, nozzles, hose, shoulder strap,
cable and accessories are fully conductive. The
vacuum cleaner can retain dust and fine dry particles
as small as 0.3 micron, the vacuum cleaner is fitted
with a double-layer paper filter bag and an electrostatic
charged micromotor filter.
The appliance can also be converted in seconds into
a powerful blower for dust removal in areas otherwise
not accessible - the blower's air-current is CFC-free and
contains no oil or water residue.
TB-7510 Page 1 of 2 July 2018
TECHNICAL BULLETIN TB-7510
231710 features a speed control
DESCO EUROPE - 2A DUNHAMS LANE, LETCHWORTH, HERTFORDSHIRE, SG6 1BE, UK
Phone: +44 (0) 1462 672005 • E-mail: Service@DescoEurope.com, Website:
The appliance is constructed to safety class II: Double
insulated design in compliance with CE standards.
- Durable and compact design
- Motor has thermal protection with RFI / EMC filter
- Hose assembly extends to 130 cm
- Includes hard crevice and soft rubber nozzle
- 1.2 l filter bag
- Advanced 5 stage filtration system
- 3 m long power cord
- Conductive carry strap
- Input power supply voltage: 220-240 volts
- Made in the Netherlands
The Vacuum Cleaner is available in the following
models:
Item# Description
231700 ESD Vacuum Cleaner
231710 ESD Vacuum Cleaner with Speed Control
Packaging
Remove the vacuum cleaner from the carton and
inspect for shipping damages.
Each unit includes the following:
1 Vacuum Cleaner (231700
1 1.3 m Hose
2 Nozzles
1 Carrying Strap

Optional Accessories:

- 231725: Replacement Bags, Pack of 10
- 231705: Carry Bag
- 231726: Long Soft Rubber Nozzle with Mini Crevice
Tool
- 231728: Long Soft Rubber Nozzle with Brush Head
- 231729: Replacement Micromotor Filter

Operating Instructions

1. Push hose end into suction opening.
2. Press the suction nozzle onto the free suction
hose-end.
3. Place rocker switch in off position.
4. Insert the plug into the electrical supply and start
appliance, pressing on-off switch to "on" position.
5. 231710 only: Move dial clockwise to increase
suction. Blow power and noise level will intensify.
Move dial anti-clockwise to reduce suction, blow
power and noise level.
DescoEurope.com
or 231710)
