Assembly Instructions:
Impact Implements
XT1000 & XT1500
Off-Road Trailers
Item #2094
Item #2100

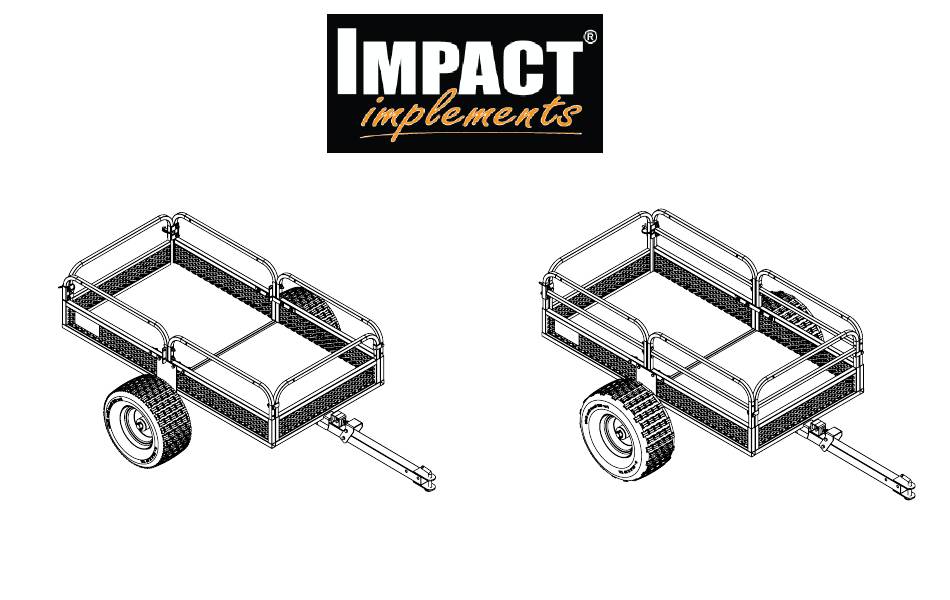

XT1000 Off-Road Trailer
XT1500 Off-Road Trailer
Rated Capacity 1000lb
Rated Capacity 1500lb
XT Trailer Manual - Impact Implements 2-18-19
Page 1
2019 Impact Implements All Rights Reserved
Advertisement
Summary of Contents for Impact Implements XT1000
- Page 1 Assembly Instructions: Impact Implements XT1000 & XT1500 Off-Road Trailers Item #2094 Item #2100 XT1000 Off-Road Trailer XT1500 Off-Road Trailer Rated Capacity 1000lb Rated Capacity 1500lb XT Trailer Manual - Impact Implements 2-18-19 Page 1 2019 Impact Implements All Rights Reserved...
-
Page 2: Important! Please Read First
Warning! This is a low speed, OFF-ROAD trailer and is not intended for road use. Do not tow trailer in excess of 10mph. Inspect trailer for damage before each use. Keep tires inflated to proper tire pressure. Serious injury or death could result from riding in a moving trailer. - Page 3 XT1000 & XT1500 Trailer Instructions STEP 1 - Verify all hardware is accounted for.
- Page 4 XT1000 Trailer Manual (2x) 16" Diameter STEP 2 - Verify all loose parts are accounted for. Tire/Wheel Trailer Assembly Instructions Lay out all trailer parts, show detail of all parts (1x) XT1000 Gate (5x) XT1000 Rail Trailer Front Frame Trailer Back Frame...
- Page 5 XT1500 Trailer Manual (2x) 18" Diameter STEP 2 - Verify all loose parts are accounted for. Tire/Wheel Trailer Assembly Instructions Lay out all trailer parts, show detail of all parts (1x) XT1500 Gate (5x) XT1500 Rail Trailer Front Frame Trailer Back Frame (2x) Trailer Bed Bracket (1x) Backer Plate (1x) Hitch Tube...
- Page 6 XT Trailer Manual 1/2" Nylock Nut STEP 3 Backer Plate 1/2" Flat Washer Assembly Notes: Turn front and back trailer bed sections upside down and butt together so four center holes align. Assemble Trailer Frame Hardware Install axle sections with two bolts through each side plate. Install four center axle bolts at Hitch Bracket and Backer Plate.
- Page 7 XT Trailer Manual Assembly Notes: STEP 4 Secure upper "Trailer Bed Bracket" with provided hardware shown below. Hand tighten all hardware at this point. Repeat this step for both sides of the trailer bed bracket and hardware. Trailer Bed Bracket 1x 5/16"...
- Page 8 XT Trailer Manual STEP 5 Assembly Notes: Assemble Trip Latch Assembly as shown below. Do not overtighten any of the below shown hardware. Secure hex nuts so that all locations move freely and do not bind. Trip Latch Pin Spring Latch Plate Compress Spring prior to inserting ITEM NO.
- Page 9 XT Trailer Manual Assembly Notes: Lay previously assembled trailer frame face down on floor. STEP 6 Secure previously assembled trailer tounge assembly with below listed hardware. Assembly Notes: Once assembled, tighten 1/2" Carriage Bolt and hardware Assemble Hitch Assembly and Axle Hitch Tube. so that tounge assembly will swivel freely.
- Page 10 STEP 7 - XT1500 Assembly Notes: Insert all Rails into main trailer upright tube fully seated to bottom. Loosely Assemble all hardware as shown below. Tighten all rail hardware to secure rails into upright trailer bed tubes. DESCRIPTION QTY. ITEM NO. XT1500 - Rear Gate Rail XT1500 Gate Bracket...
- Page 11 STEP 7 - XT1000 Assembly Notes: Insert all Rails into main trailer upright tube fully seated to bottom. Loosely Assemble all hardware as shown below. Tighten all rail hardware to secure rails into upright trailer bed tubes. XT1000 Off-Road Trailer Rated Capacity 1000lb Item No.
-
Page 12: Final Step
Slide wheel onto end of axle with Valve Stem outward. Place 1" Washer on axle then secure with Lynch Pin. XT1000 Off-Road Trailer Trailer Axle Lynch Pin 1" Washer 16" for the XT1000 18" for the XT1500 XT1500 Off-Road Trailer Email: CustomerService@off-roadtrailer.com Page 12...
