Summary of Contents for CHEM-TECH XP Series

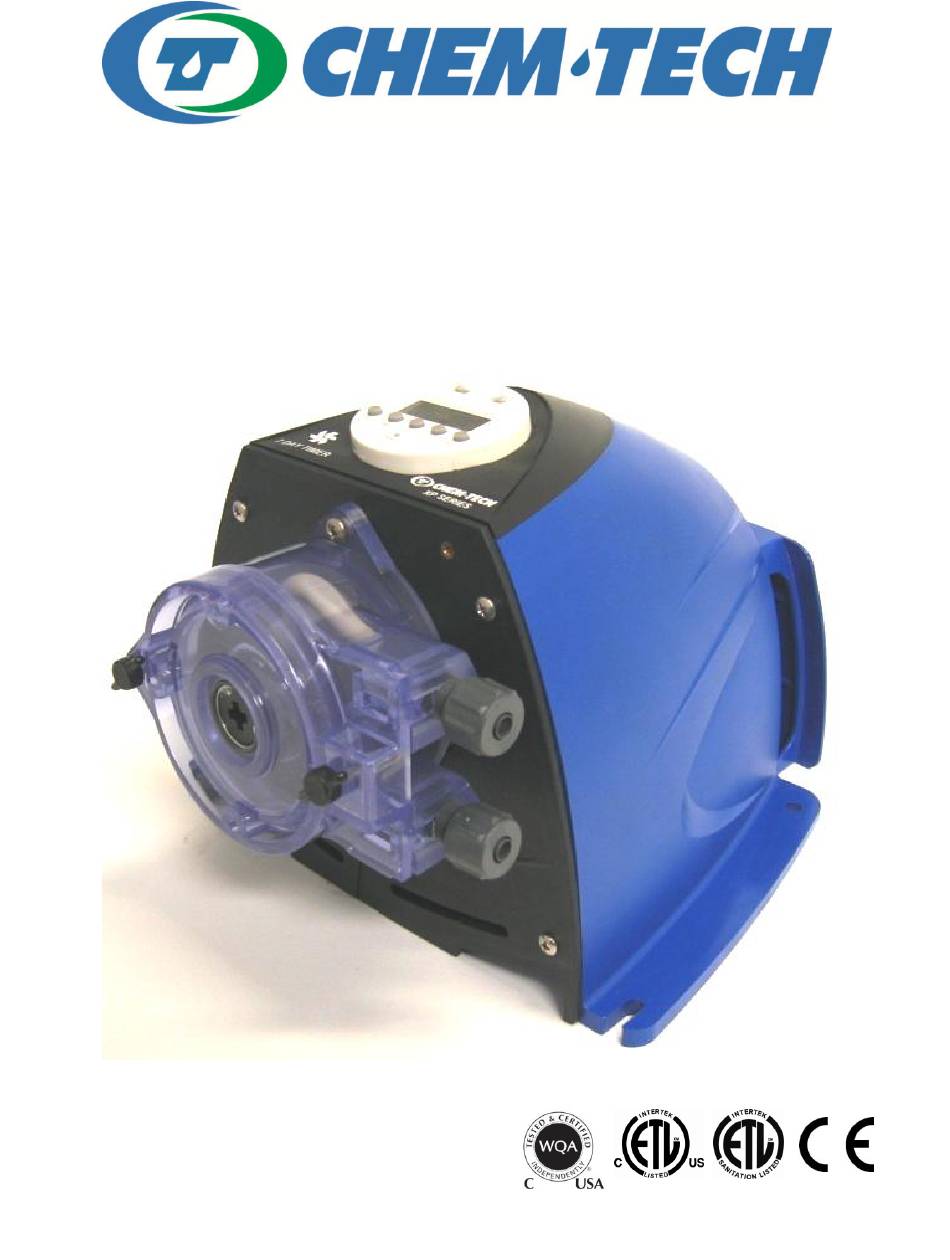

- Page 1 XP Peristaltic Pump Installation, Operation and Maintenance Manual 7 Day Electronic Timer Tested and Certified by WQA against NSF/ANSI 61-Section 8. and CSA B483.1 REV. C PN J63143 - 1 -...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction..................... 3 2. Safety Instructions ..................3 3. Technical Specifications ................. 4 4. Installation ...................... 5 5. Operation......................7 5.1. 7 Day Electronic Timer................7 5.2. General ....................11 6. Maintenance ....................11 6.1. Tubing Assembly Removal ..............12 6.2. -
Page 3: Introduction
1. Introduction Thank you for your purchase of the Chem-Tech Series XP peristaltic pump from Pulsafeeder. We appreciate your decision to purchase a Pulsafeeder product. Please take this time to become familiar with your pump and the number of accessories that shipped with your product. -
Page 4: Technical Specifications
WARNING: Secure chemicals & metering pumps, making them inaccessible to children & pets. WARNING: DO NOT PUMP FLAMMABLE LIQUIDS. WARNING: To reduce the risk of electrical shock-before maintenance, repair, or moving always disconnect the power to the pump by unplugging from wall outlet. -
Page 5: Installation
Use this information to complete the top three lines in Table 1 (below) by. For example, if the Electrical Rating indicated on the data plate of the pump is 230V/60 Hz fill in the first line of the table below. Keep this information handy for future reference and part replacement. - Page 6 (44mm) of clearance around the venting on both the front and the rear of the pump. Locate the pump so there is direct access to the power cord plug. The pump is rated for indoor use only. For applications that are subject to splashing, make sure the pump is mounted horizontally level with splash guard in place.
-
Page 7: Operation
6) Install the strainer so it is off the bottom of the chemical container (1 to 2- inches (25-50mm)) and measure suction tubing length required. Cut tubing ends square and install on suction fitting of the pump. Hand-tighten only, do not use wrenches. - Page 8 PUMP TIMER PROGRAMMING INSTRUCTIONS 1. Read all instructions first. 2. When programming or re-programming, use the program work sheet to set up the desired program before entering the steps into the timer. Seeing the program on paper may avoid errors and will make it easier to put the correct steps into the timer. 3.
- Page 9 Slide the programming selector switch to center, „RUN‟ position to check time setting. The colon‟;‟ will flash. Be certain that minutes do not change with each flash of the colon. If this condition occurs, an error has been made. Begin again at step #1. NOTE: 1 Setting the time in the above sequence will clear all programs, reset the programs as required.
- Page 10 „ may be used when you want to skip all program sequences 12. Skip cycle button; programmed for the next day. Press the „ ‟ button once, the „ ‟ will appear in the lower right corner of the display. This will stop all program cycles from running the next calendar day (the day indicator ‘▲’...
-
Page 11: General
5.2. General DANGER: DO NOT ATTEMPT TO FEED CHEMICALS WITHOUT FIRST CONSULTING YOUR CHEMICAL FEEDER DEALER OR CHEMICAL SUPPLIER. To avoid running out of chemical, follow a regular schedule of monitoring chemical supply. CAUTION: Inspect peristaltic tubing frequently and replace when deterioration becomes apparent. -
Page 12: Tubing Assembly Removal
6.1. Tubing Assembly Removal Always wear protective clothing and safety glasses when working on the chemical pump and refer to the chemical manufacturers‟ safety precautions. 1) Remove the power to the pump and place the mode selector switch in the Off position. -
Page 13: Tubing Assembly Installation And Lubrication
5) Remove pump head tube assembly by removing both connector fittings and pulling tubing straight out of the pump head. Tubing may retain a small amount of chemical. If the rotor assembly is removed, go to step #8. 6) Remove rotor assembly by pulling straight out of pump head. NOTE bearing lubrication every 500-hours;... - Page 14 Note position of tube and rotor‟s cut-away guide slot. Figure 9a: Rotor Alignment at Start of Tube Installation 3) Insert one connector end of the tubing assembly into the bottom retaining slot in the pump head. Insert the tube through the guide slot in the rotor. Using caution, intermittently jog the mode selector switch to from the on and off positions and feed the tube around the pump head as the guide slot rotates.
-
Page 15: Pools And Spas
Figure 9c: Finishing the New Tube Installation 6) Using the mode selector switch, run the pump for several revolutions and then fully tighten the thumb screws hand tight. 7) Return the pump to service by following the procedures in the installation section. -
Page 16: Policies And Procedures
7. Policies and Procedures 7.1. Manufacturers Product Warranty PULSAFEEDER warrants equipment of its manufacture to be free of defects in material or workmanship. Liability under this policy extends for 24-months from the date of shipment. The manufacturer‟s liability is limited to repair or replacement of any failed equipment or part which is proven defective in material or workmanship upon manufacturers‟... -
Page 17: Credits
All material must be returned freight prepaid. All merchandise must be properly packaged and free of any corrosive, toxic or otherwise hazardous chemical. All items returned must reference Return Authorization number. 7.3. Credits No equipment will be accepted beyond six months after date of shipment from the factory. -
Page 18: Pump Assembly And Wiring Diagram
Appendix I. Pump Assembly and Wiring Diagram REV. C PN J63143 - 18 -... -
Page 19: Maintenance Record
Maintenance Record Date Maintenance Performed REV. C PN J63143 - 19 -... - Page 20 8. PARTS REV. C PN J63143 - 20 -...
- Page 21 EC Declaration of Conformity We, Pulsafeeder Inc., declare under sole responsibility that the Series XP metering pump, to which this declaration relates, is in sole conformity with relevant sections of the applicable EC standards and other normative documents listed on this document. If changes are made to the product which is covered by this declaration of conformity, the declaration of conformity is no longer valid.
