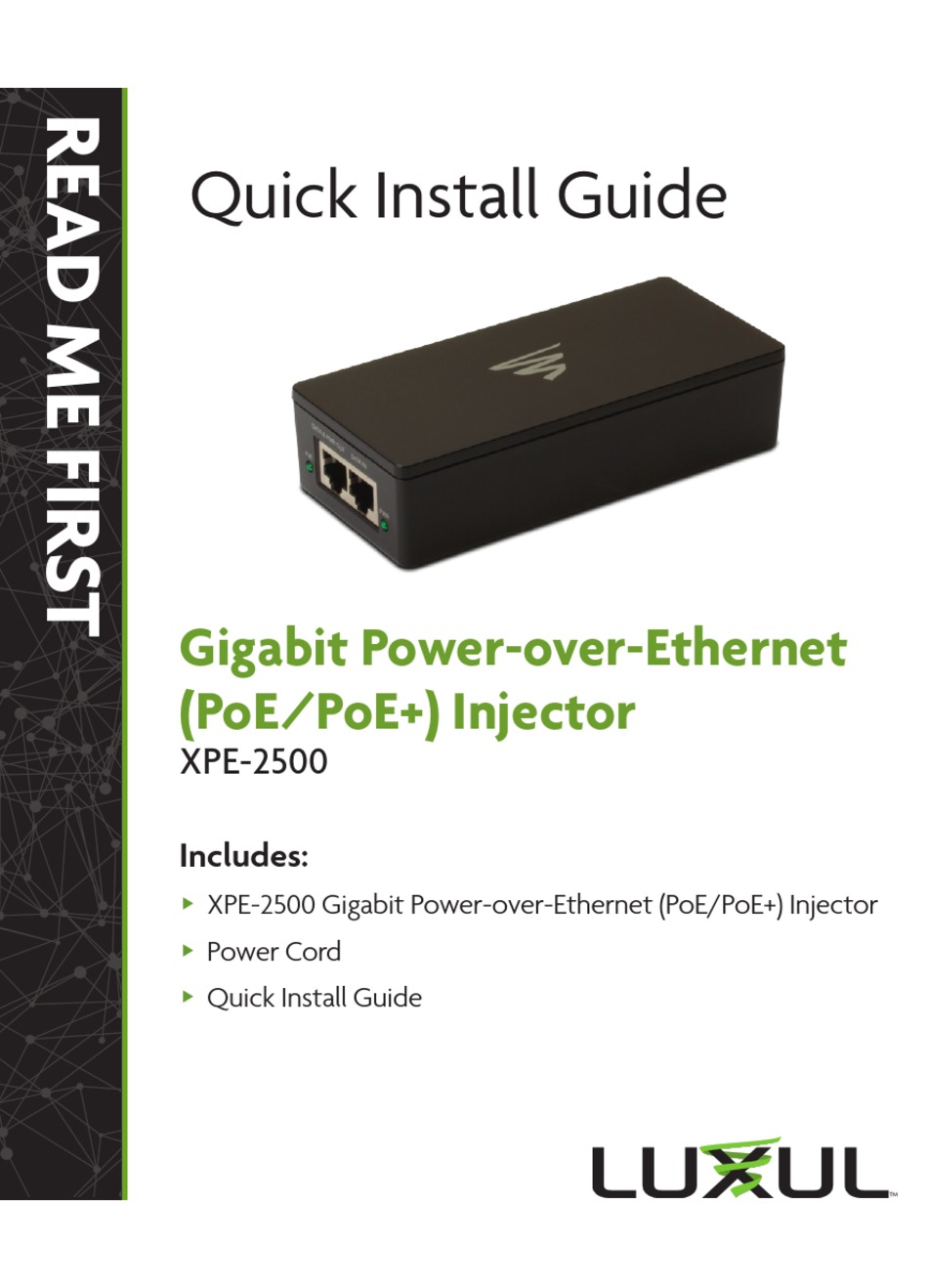

- Page 1 Quick Install Guide Gigabit Power-over-Ethernet (PoE/PoE+) Injector XPE-2500 Includes: XPE-2500 Gigabit Power-over-Ethernet (PoE/PoE+) Injector „ Power Cord „ Quick Install Guide „...
- Page 2 No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design.
- Page 3 Product Description The XPE-2500 Gigabit Power-over-Ethernet (PoE/PoE+) Injector is fully compliant with IEEE 802.3af/at standards. It delivers up to 30W of output power to the PoE port. When using this device, both data and electrical power can be simultaneously delivered to your 802.3af/at PoE enabled de- vice through a single Ethernet cable.
- Page 4 Make sure there is adequate space around the XPE-2500 for „ adequate ventilation and proper heat dissipation. At least 12” (30cm) is recommend. Keep the XPE-2500 at least 12” (30cm) from any heat source „ Avoid placement in direct sunlight. „...
- Page 5 HARDWARE SPECIFICATIONS General Specifications Standards IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3af/ at standards Output Voltage 51V 0.6A Output Power PoE: 15.4W PoE+: 30W Input Voltage AC100-240V 0.8A 50 60Hz Ports 2-10/100/1000Mbps RJ45 1-Power Input Cable Cat5e or better LEDs PoE: Indicates power is being passed to the Connected 802.3af/at PoE device PWR: Power is connected to the PoE Injector Dimensions...
- Page 6 LED Indicators Port/LED Function PoE LED On: Indicates the PoE Injector is delivering power to the connected 802.3af/at PoE enabled device Off: Indicates no power is being delivered to the connected device Flashing: An error indicating a power fault PWR LED On: Power is connected to the PoE Injector Off: Injector is not receiving power DATA &...
- Page 7 LED and RJ45 connections Power connection...
- Page 8 Luxul product. © Copyright 2017 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and registered trademarks are property of their respective holders.
