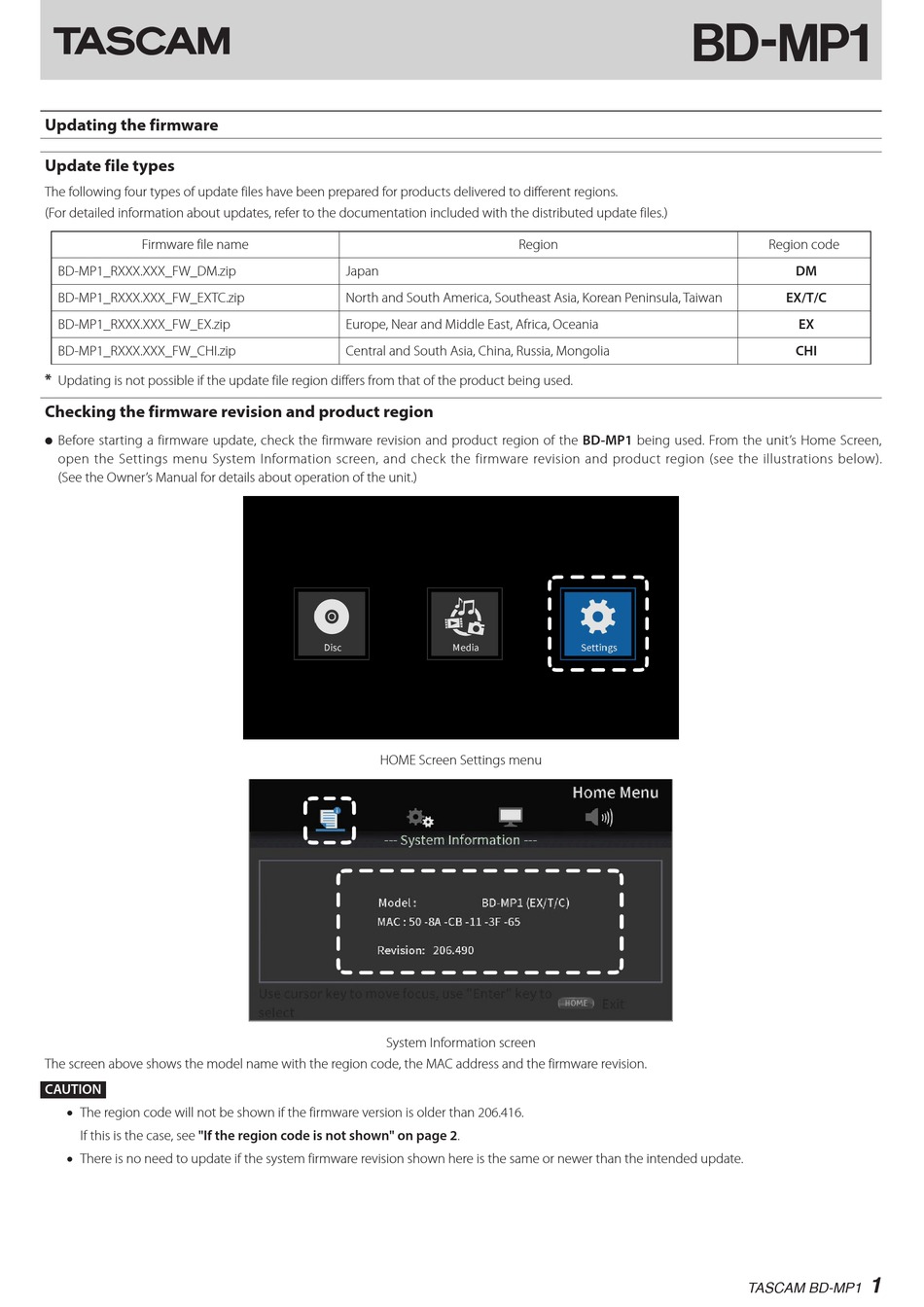

Updating the firmware
Update file types
The following four types of update files have been prepared for products delivered to different regions.
(For detailed information about updates, refer to the documentation included with the distributed update files.)
Firmware file name
BD-MP1_RXXX.XXX_FW_DM.zip
BD-MP1_RXXX.XXX_FW_EXTC.zip
BD-MP1_RXXX.XXX_FW_EX.zip
BD-MP1_RXXX.XXX_FW_CHI.zip
* Updating is not possible if the update file region differs from that of the product being used.
Checking the firmware revision and product region
o Before starting a firmware update, check the firmware revision and product region of the BD-MP1 being used. From the unit's Home Screen,
open the Settings menu System Information screen, and check the firmware revision and product region (see the illustrations below).
(See the Owner's Manual for details about operation of the unit.)
The screen above shows the model name with the region code, the MAC address and the firmware revision.
CAUTION
i The region code will not be shown if the firmware version is older than 206.416.
If this is the case, see "If the region code is not shown" on page 2.
i There is no need to update if the system firmware revision shown here is the same or newer than the intended update.
Region
Japan
North and South America, Southeast Asia, Korean Peninsula, Taiwan
Europe, Near and Middle East, Africa, Oceania
Central and South Asia, China, Russia, Mongolia
HOME Screen Settings menu
System Information screen
TASCAM BD-MP1
BD-MP1
Region code
DM
EX/T/C
EX
CHI
TASCAM BD-MP1
1
Advertisement
Table of Contents
Related Manuals for Tascam BD-MP1
Summary of Contents for Tascam BD-MP1
- Page 1 Checking the firmware revision and product region o Before starting a firmware update, check the firmware revision and product region of the BD-MP1 being used. From the unit’s Home Screen, open the Settings menu System Information screen, and check the firmware revision and product region (see the illustrations below).
- Page 2 TASCAM BD-MP1 BD-MP1 If the region code is not shown If the region code is not shown on the System Information screen, follow these procedures to determine the region. o Refer to the BD Region Code shown on the model name label attached to the top of the unit to determine the region of distribution.
- Page 3 TASCAM BD-MP1 BD-MP1 Update procedures Connect the USB flash drive to or load the disc on the prepared computer. Create a new folder on the drive/disc, and change its name to “UPG”. Place the downloaded update files inside the “UPG” folder.
- Page 4 TASCAM BD-MP1 BD-MP1 CAUTION Never turn off the power during an update. Doing so could cause the unit to malfunction. o If no update file is found, the following message will appear. Upgrade file not found screen Press the remote control . button to return to the System Information screen.
