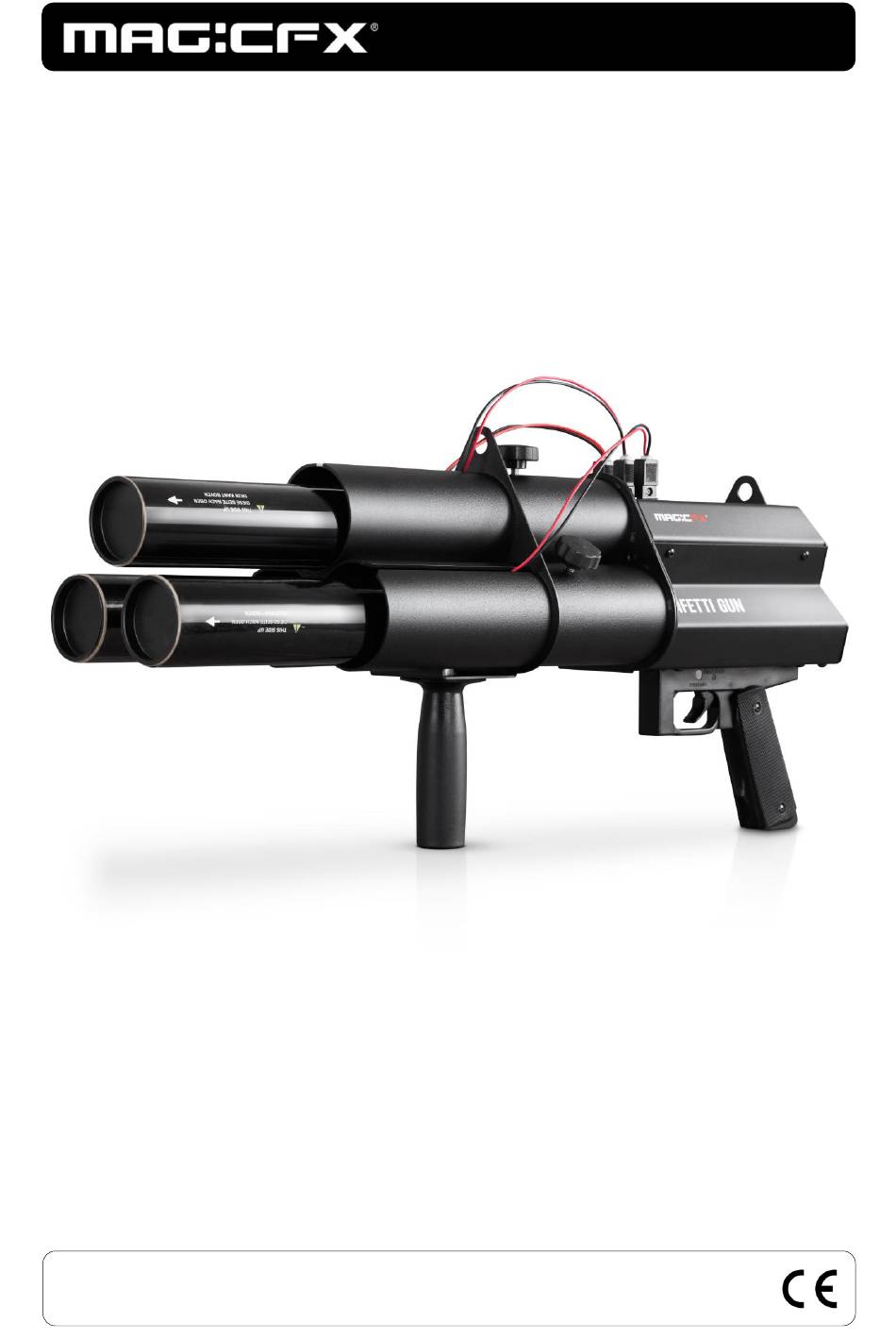

- Page 1 MANUAL MAGICFX ® CONFETTI GUN PRODUCT CODE : MFX0370 VERSION : 1.1 DATE : 29.05.2015...
-
Page 2: Foreword
MAGIC FX advises that the original of this user manual, including appendices, is kept at a safe and central place. It is best that another original or copy is kept close to the Confetti Gun at the workplace. -
Page 3: Table Of Contents
Version 1.1 CONTENTS FOREWORD ....................1 INTRODUCTION ....................3 DESCRIPTION AND APPLICATION OF THE CONFETTI GUN ........... 3 NECESSARY ACCESSORIES ....................3 CANNONS ..........................3 SAFETY ......................5 INTRODUCTION ........................5 GENERAL SAFETY RULES ....................5 WARNINGS ..........................5 LIPO BATTERY ........................7 PARTS ...................... -
Page 4: Introduction
User documentation MAGICFX® Confetti Gun 2. INTRODUCTION DESCRIPTION AND APPLICATION OF THE CONFETTI GUN The Confetti Gun is a confetti shooting system which has been specially developed to easily shoot electric cannons. The Confetti Gun can be used with electric confetti cannons as well as with electric streamer cannons. - Page 5 Version 1.1 The following types of electric cannons are possible: TYPE CANNON CONTENT CANNON LENGTH OUTPUT CONFETTI 40CM STREAMERS 40CM CONFETTI 80CM STREAMERS 80CM Table 2.3 All pre-filled cannons are for one-time use only. DANGER WARNING: Metallic products are heavier and will therefore have a larger output. DANGER WARNING: The electric cannons contain pressure containers which fire off the confetti/streamers under a lot of pressure.
-
Page 6: Safety
User documentation MAGICFX® Confetti Gun 3. SAFETY INTRODUCTION The Confetti Gun has been designed and constructed in such a manner that it can be used safely. This applies to the use, the circumstances and the regulations as described in this documentation. Reading this documentation and following the instructions are therefore necessary for everyone who is authorised to work with the Confetti Gun. - Page 7 Version 1.1 Sign and explanation Photo PIC 616 Follow the instructions The operator must be told that he/she may only operate the Confetti Gun after reading the user manual. A warning is given for this by means of the command sign of PIC 616. This sign should be attached to the type sign.
-
Page 8: Lipo Battery
User documentation MAGICFX® Confetti Gun Sign and explanation Photo PIC 309 Laser Radiation A warning must be given about the machine’s laser by using the caution sign PIC 309. This sign must be attached to the Confetti Gun. See also the added photo. LIPO BATTERY The Confetti Gun is equipped with a lithium polymer (LiPo) battery which enables the Confetti Gun to be used without constant power supply. -
Page 9: Parts
Version 1.1 4. PARTS 8 9 10 13 14 15 16 1. Cannon holders 9. Safety catch 2. Shoulder strap hole 10. Trigger 3. Cannon nut 11. Trigger handle 4. Handle 12. Power input 5. Cannon connectors 13. Mode switch 6. -
Page 10: Accessories
E. info@magicfx.eu 6. PREPARATIONS Unpack the Confetti Gun. Dispose of the packaging material without harming the environment. Inspect the machine for any damage. If damage is noticed this must be reported to MAGIC FX. 7. INSTALLATION CAUTION: The machine can be damaged if you do not follow the procedures carefully. - Page 11 Version 1.1 When the Confetti Gun is fully charged the LED CHARGING BATTERY is green. U can now disconnect the Confetti Gun. For the maximum battery life leave the Confetti Gun plugged in for 8 hours. Place the electric cannons in the cannon holder.
-
Page 12: Usage
User documentation MAGICFX® Confetti Gun 8. USAGE TIP: Gives you suggestions and advice regarding easier or more convenient ways to carry out certain tasks. CAUTION: The machine can be damaged, if you do not follow these procedures carefully. DANGER WARNING: The MAGICFX®... -
Page 13: Switching Off
Version 1.1 9. SWITCHING OFF To switch off the Confetti Gun, take the following steps: Put the Confetti Gun in the safe mode by pushing the safety pin to the right. Turn off the Confetti Gun. Remove the cannon’s from the Confetti Gun. -
Page 14: Ce Marking
Unauthorised removal of safety caps and/or safeguards. Incompetent operation of the machine. MAGIC FX B.V. is not liable for any consequential loss in the event of a Confetti Gun breakdown. © Copyright 2015 All rights are reserved. Nothing from this manual may be duplicated, or kept in an automated data file, or made public, or in any form or manner, whether electronically, mechanically, by photocopying, by incorporation, or in any other manner duplicated without the permission of MAGIC FX B.V. -
Page 15: Declaration Of Conformity
Version 1.1 11. DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY (according to Annex II.1.A of the Machinery Directive) Concerning the Machinery Directive. We; MAGIC FX B.V. Schouwrooij 27 5281 RE Boxtel The Netherlands State under personal responsibility: We are the manufacturer of the product: ®... -
Page 16: Troubleshooting
Charge the Confetti Gun. A cannon does not work. Always use MAGIC FX cannons! Check if the connector of the cannon is properly connected. If so, exchange the cannon with another and see if this one works. The output is not 10 to 12 VDC The electronics in the Confetti Gun will fully be activated when a load like a cannon is attached.
